Bansbach Easylift Traction spring

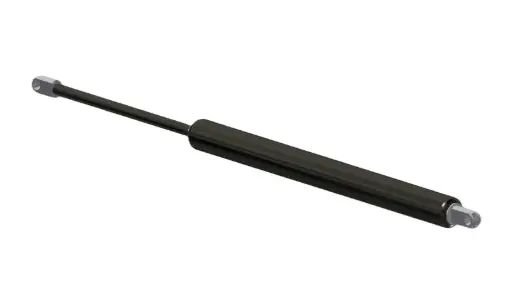

Bansbach Easylift Gas Spring
Standard push out version
normal speed and end-damping
with hinge eyes on both sides: Ø6.2mm
EL1: 367mm
F: 150N

Concens CON35 actuator
Stroke: 500 mm
Gear ratio: 14:1 (Maximum load 400 N – Nominal speed 16 mm/s)
24 VDC
Cable length: 3 m shielded cable – without connector
With Hall sensors
Standard steel – IP68
Black tube and black H.E. piston ring

Concens CON35 actuator
Stroke: 750 mm
Gear ratio: 14:1 (Maximum load 400 N – Nominal speed 16 mm/s)
24 VDC
Cable length: 3 m shielded cable – without connector
With Hall sensors
Stainless steel (AISI316) – IP68
Stainless steel tube and stainless steel piston ring

Driver for BLDC motor
DIP switches for configuration
Speed selection - status LED
Protection rate IP20

Integrated Servostepmotor

Concens iCON35 actuator
Stroke: 50 mm
Gear ratio: 71:1 (Maximum load 2200 N – Nominal speed 3 mm/s)
24 VDC
Cable length: 3 m shielded cable – without connector
Integrated controller: MDO – Multi-actuator
Stainless steel (AISI316) – IP68
Stainless steel tube and stainless steel piston ring

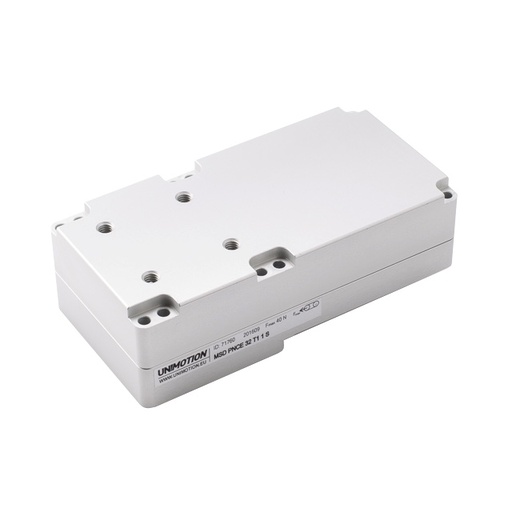

Side drive for Electric cylinder PNCE32
Reduction ratio: 1

SGN32 MSD mounting att. accessory
Material: aluminium

SSG 32 mounting attachment accessory

Concens iCON35 actuator
Stroke: 50 mm
Gear ratio: 71:1 (Maximum load 2200 N – Nominal speed 3 mm/s)
24 VDC
Cable length: 3 m shielded cable – without connector
Integrated controller: MDO – Multi-actuator
Standard steel – IP66
Black tube and black piston ring

Stainless steel Hinge Eyes M2 for gas springs
Eyes Ø10,2mm
for M8 thread
L1:20mm

Integrated AC Servomotor

Linear unit MTJ 80
Stroke 2500mm
1 long carriages
Drive pulley: left without keyway
With INOX protection cover

Linear unit MTJ 80
Stroke 2500mm
1 long carriages
Drive pulley: right without keyway
With INOX protection cover

VK MTJ80 80 x 80 GESM19/24 -Dummy-
Motor type: flange 80 x 80 mm
Coupling: GESM19/24
Mounting screws are included!

Synchronization shaft: OSR
Linear unit MTJ80
Size 24
Distance LM: 2180mm
Drive shaft: F18
Driven shaft: F18
Length: 2080mm

Linear unit CTJ145
stroke 2000mm
long carriage
number of carriages: 1
Drive pulley left without keyway
with connection plate

VK CTJ145 86 x 86 GESM19/24 -Dummy-
Motor type: flange 86 x 86 mm
Coupling: GESM19/24
Mounting screws are included!

Linear guide with tooth belt
Stroke: 2100 mm
Drive pulley without keyway
Number of drive blocks: 1
Distance between drive blocks: 0,0mm
