iCON50 Series

INTELLIGENTE ELEKTRISCHE IN-LINE ACTUATOR

Deze actuator biedt de perfecte oplossing als de kleinere iCON35 te kort komt op vlak van duwkracht of snelheid.

Snelheid: 4 tot 70mm/s
Spanning 12 of 24VDC
Belastingscapaciteit: 500 tot 4500N
Slaglengte: 50 tot 750mm

De specifieke icon voordelen:

Interne slagbeperking
Plug & Play-oplossing met conXion-box
Interne overstroombeveiliging en warmtebescherming
Gratis software voor eenvoudige installatie
Industriële interface MODBUS RTU op RS485

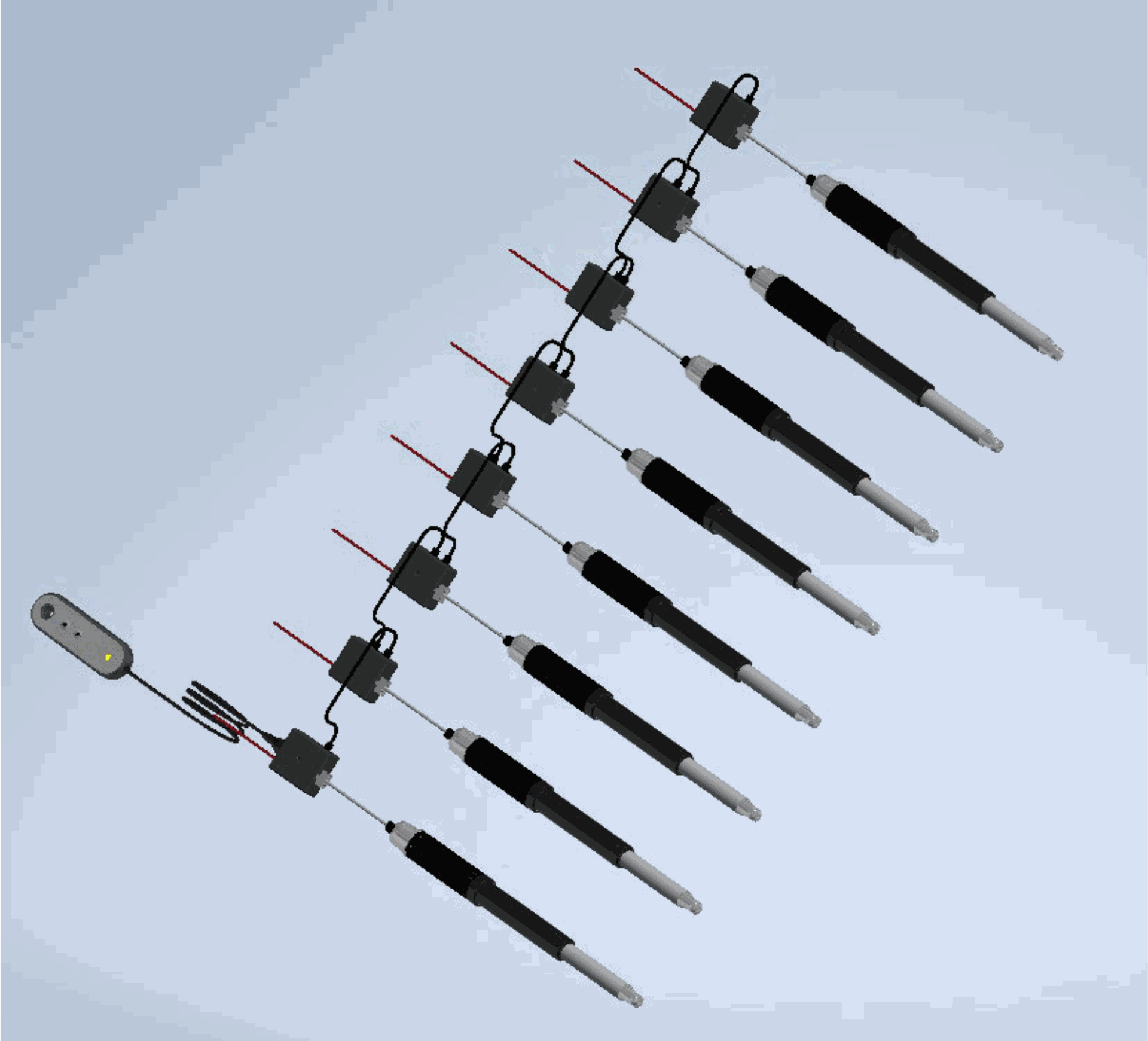

Interconnectie tot 128 units
Eenvoudige installatie en onderhoudsvrij
Slank ontwerp en overtuigende uitstraling

Aanpassingsmogelijkheden:

Andere slaglengtes en ingebouwde afmetingen beschikbaar op aanvraag
Beugels passend gemaakt voor uw toepassing
'Harsh Environment' (getest volgens IP68 en IP69)
Verkrijgbaar in elke RAL-kleur en roestvrij staal

Meer info

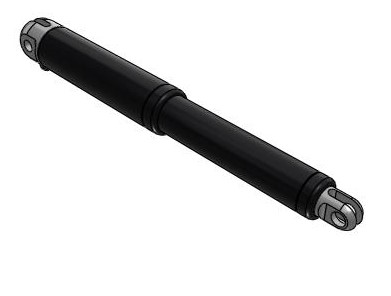

500100-843350A030000

1. icon50
2. Stroke Length: 100 mm
3. Low Noise: Standard
4. Gear Ratio: 84/1
5. Voltage & Certifications: 24VDC
6. Pitch & Nut: 3mm
7. Cable Length: 5m
8. Cable Type & Connector: Black cable, no connector
9. icon - Integrated controller - Single/Direction/Basic IO (SDB)
10. Steel & IP Class: Std. steel, IP66
11. Brackets: Aluminum w/clevis
12. Tube Color: Black, RAL9005, shine 25
13. Piston Ring Color: Black, standard

Lees meer

Meer info

500100-043350A030000

1. icon50
2. Stroke Length: 100 mm
3. Low Noise: Standard
4. Gear Ratio: 04/1
5. Voltage & Certifications: 24VDC
6. Pitch & Nut: 3mm
7. Cable Length: 5m
8. Cable Type & Connector: Black cable, no connector
9. icon - Integrated controller - Single/Direction/Basic IO (SDB)
10. Steel & IP Class: Std. steel, IP66
11. Brackets: Aluminum w/clevis
12. Tube Color: Black, RAL9005, shine 25
13. Piston Ring Color: Black, standard

Lees meer

Meer info

500150-173392C030000

Inline DC actuator iCon50
with Integrated controller - Single/Direction/Position (SDP)
Black cable, with Molex Minifir Jr. connector
Std. steel, IP66
Alu brackets w/clevis

Lees meer

Meer info

500750-173352D249000

Linear actuator with DC motor
iCon50
Integrated controller - Single/Position/Position (SPP)
Black cable, Molex Minifit Connector

Lees meer

Meer info

500150-143317F930200

iCon 50 linear actuator
Integrated controller MDO for multiple actuators
with molex minifit connector
iCon version SBS (Single setup - Bus-based - status control)
alu brackets wit clevis
Black tube and piston ring
RAL9005, shine 25
Harsh Environment IP68 protection

Lees meer

Meer info

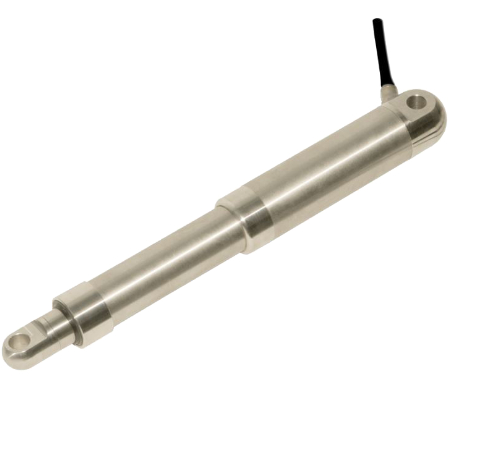

500150-143317F459900

iCon 50 linear actuator
Integrated controller MDO for multiple actuators
with molex minifit connector
iCon version SBS (Single setup - Bus-based - status control)
Stainless steel brackets with clevis
Stainless steel tube and piston ring
Harsh Environment IP68 protection

Lees meer

Meer info

500100-143332A030000

Concens in-line actuator iCON50
with integrated controller SDB (basic In&out)
Alu brackets with clevis
with molex connector

Lees meer

Meer info

500200-243357C459900

iCON50 In-line actuator
Stainless steel version AISI316
Integrated controller SDP(direction input - position output)
with screened cable
Brackets: Stainless steel with clevis
Harsh environment version IP68

Lees meer

Meer info

500750-143316F449000

In-line actuator iCON50
With integrated controller MDO for synchronization
(Direction input via dry contacts)
Black Shielded cable without connector
Stainless steel version (cylinder, piston & brackets)

Lees meer

Meer info

500750-173356D459900

iCON50 In-line actuator
Stainless steel version AISI316
Integrated controller SPP(an. position input - position ok)
with screened cable no connector
Brackets: Stainless steel with clevis
Harsh environment version IP68

Lees meer

Meer info

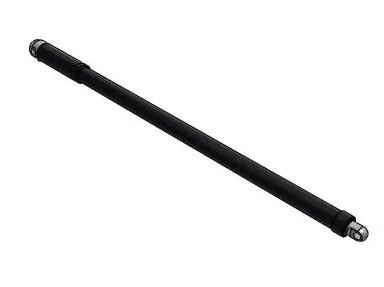

500750+243337F020000

In-line linear actuator iCon50
Integrated controller MDO(Multiple-direction-override)
Black screened cable, Molex Minifit Jr. Connector
Low noise version
Alu Brackets

Lees meer

Meer info

500750+243337F030000

In-line linear actuator iCon50
Integrated controller MDO(Multiple-direction-override)
Black screened cable, Molex Minifit Jr. Connector
Low noise version
Alu Brackets with clevis

Lees meer

Meer info

500500-243322C030000

Linear actuator icon50
Cable Type & Connector: Black cable, with molex connector
Integrated Controller (icon): icon - Single/Direction/Position (SDP)
Steel & IP Class: Std. steel, IP66
Brackets: Aluminum w/clevis
Tube Color: Black, RAL9005, shine 25
Piston Ring Color: Black, standard

Lees meer

Meer info

500500-243317F920200

Linear actuator iCon50
Black shieled cable, Molex Minifit Connector
icon - Integrated controller - Multiple/Direction/Override (MDO)
Std. steel, Harsh Environment (HE)
Alu brackets

Lees meer

Meer info

500750-493376F030001

Inline DC actuator iCon50
Black shielded cable without connector
icon - Integrated controller - MDO
Std Steel: IP66
Alu brackets with clevis

with additional 100 mm added to the BiD

Lees meer

Meer info

500150-173337F020000

Inline DC Actuator iCON50
Integrated controller - MDO
Black shielded cable, with Molex Minifit Jr. connector
Alu brackets

Lees meer

Meer info

500400-8433X6F449900

inline DC actuator iCON50
Integrated controller Multiple actuator - Direction control - Override input (MDO)
Shielded cable without connector
IP69 Harsh environment stainless steel
Brackets: Stainless steel
Tube: Stainless steel
Piston ring: Stainless steel harsh environment

Lees meer

Meer info

500400-8433X6C449900

inline DC actuator iCON50
Integrated controller Single/Direction/Position (SDP)
Shielded cable without connector
IP69 Harsh environment stainless steel
Brackets: Stainless steel
Tube: Stainless steel
Piston ring: Stainless steel harsh environment

Lees meer

Meer info

500400-8433X6C940200

inline DC actuator iCON50
Integrated controller Single/Direction/Position (SDP)
Shielded cable without connector
Std. steel, Harsh Environment (HE)
AISI Brackets
Tube: Black, RAL9005, shine 25
Piston ring: Black, Harsh Environment, std. steel

Lees meer

Meer info

500400-8433X6F940200

inline DC actuator iCON50
Integrated controller Multiple actuator - Direction control - Override input (MDO)
Shielded cable without connector
Std. steel, Harsh Environment (HE)
AISI Brackets
Tube: Black, RAL9005, shine 25
Piston ring: Black, Harsh Environment, std. steel

Lees meer
