Spiral Bevel Gearbox

Helical bevel gear
Input size: 50/70 M5
Input shaft: d14mm
Max output torque: 88Nm

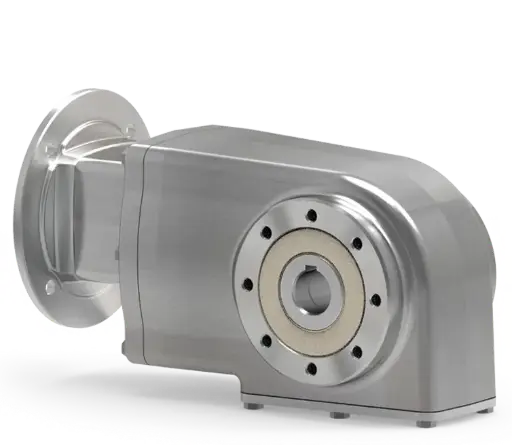

Full Stainless Steel helical bevel gear
Size: X63N
690W, i=92.18, output speed 15.19rpm 410Nm
Input: 80 B14 ø120, Output shaft/bore: ø35
Mounting position: B3

- Close protec. cap output shaft
- Food safe lubricant mobil oil
- Life lubricated bearing for position B6/B7
- Twin viton seals - shiel for IP69K

Full Stainless Steel helical bevel gear
Size: X63N
690W, i=92.18, output speed 15.19rpm 410Nm
Input: 80 B14 ø120, Output shaft/bore: ø30
Mounting position: B3

- Close protec. cap output shaft
- Life lubricated bearing for position B6/B7
- Twin viton seals - shiel for IP69K

Full Stainless Steel helical bevel gear
Size: X63N
510W, i=125.28, output speed 11.13rpm 410Nm
Input: 71 B14 ø105, Output shaft/bore: ø35
Mounting position: B3

- Close protec. cap output shaft
- Food safe lubricant mobil oil
- Life lubricated bearing for position B6/B7
- Twin viton seals - shiel for IP69K
