Electric cylinder MCE45 with AZ stepping motor AZM48
+ Ball Screw 10x03
+ Motor side drive

Linear actuator PNCE40
Ball screw 16x05

Electric cylinder PNCE40 with AZ stepping motor AZM69
+ Ball Screw 16x05
+ Motor side drive

AC Servo Motor
Mn=2.39Nm
Un=230V
In=4.4A
23Bit multiturn encoder
without brake

Stainless Steel Worm gearmotor
Size: N63
Mounting: UNI (Standard)
Position: N
Output rpm (n2 [min-1]): 23,33
Output torque (M2M [Nm]): 94
Service factor (fs): 1,4
Output shaft: 0 (Hollow output shaft)
Left protection cap: C (Closed)
Right protection cap: N (Without protection cap)
Terminal Box Position: C

CPU with dual Ethernet port
Motion axis : 4 pulse control axis
Encoder axis : 4 channel encoder
Pulse output : 8 x 200KHz
Extension modules :16
Left side extension : 2 (Support communication/digital IO/analog IO/TF card/RTC)
Communication Port : 2 x Ethernet, 1 x RS485
Support : 2 x RS232 /485 extension and 1 x CAN extension
Protocols : Serial free protocol, Modbus RTU/ASC, CANlink, CANopen, Modbus TCP, EIP
Program storage 10Mbyte
Data storage 20Mbyte（512KB non-volatile）
Dimensions(WxHxD:mm) 53x100x80
Other interface : Type C，TF card(need TF card extension module)
CAM and ITP motion : Support CAM and interpolation motion
Built in IO : 8 input(sink/source) / 8 output (source)
Programming language : Structured Text (ST), Ladder Diagram (LD), Sequential Function Chart (SFC), Continuous Function Chart (CFC)
Power input : DC24V

Hybrid linear actuator, captive type with
+ resolution (mm/step) : 0.0031
+ AB nut
+ Teflon Coated Screw

Hybrid actuator

Integrated Servostepmotor
Ø6.35x20 mm D-cut
Shaft: IP65 - Sealing
Motor: IP42

Inline DC Actuator iCON35
Integrated controller - Single/Position/Position (SPP)
Black cable with Molex Minifit Connector
Alu brackets

Linear unit MTJ 65
Carriage: long
Number of carriages: 1
Drive pulley: right with keyway
Inox protection cover

Linear unit MRJ 65
Carriage: long
Number of carriages: 1
Drive pulley: left with keyway
Inox protection cover

Linear unit MTV65
Ball screw: 16x05
Tolerance class: ISO7
Keyway: yes
Carriage: 1
Number of screw supports: 2

MSD CTV110 MTV65 T1 1 60 x 60
Motor type: flange 60 x 60 mm
Mounting screws are included

Bansbach Easylift Gas spring
Heat setup version (sealings)
with Valve in the Cylinder threaded end
F1 Push-out force: 700N
EL1 Build-in length: 375mm
With Elbowjoint D3 on both sides

Metal Clad Braking Resistor
800W - 5% - 47Ω

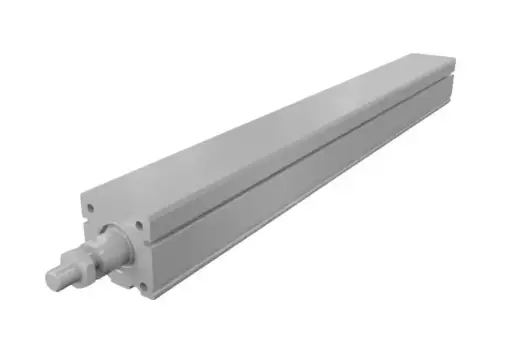

Electric cylinder MCE45 with Integrated Stepper Motor MIS231S1

1. Con50
2. Stroke Length: 100mm
3. Low Noise: Standard
4. Gear Ratio: 24/1 - 3100N - 12mm/s
5. Voltage & Certifications: 24VDC
6. Pitch & Nut: 3mm
7. Cable Length: 9m
8. Cable Type & Connector: Black cable, Molex Minifit Connector
9. Without hall sensors
10. Steel & IP Class: Std. steel, IP66
11. Brackets: Aluminum
12. Tube Color: Black, RAL9005, shine 25
13. Piston Ring Color: Black, standard

MD630 AC Drive

Steppingmotor of the AZ-Series;
Round shaft
