Linear unit CTV110
Ball screw 16x05
Tolerance class: ISO7
Keyway: No
Carriage: short
Number of carriages: 2
Distance between carriages (A): 200
Connection plate: No
Pu protection cover

Concens iCON35 actuator
Stroke: 100 mm
Gear ratio: 27:1 (Maximum load 900 N – Nominal speed 7.5 mm/s)
24 VDC
Cable length: 1 m shielded cable – without connector
Integrated controller: MDO – Multi-actuator
Standard steel – IP66
Black tube and black piston ring

Inline DC Actuator CON50
Black cable, Molex Minifit Connector
With hall sensors
Std. steel, IP66
Alu brackets w/clevis

Inline DC Actuator
CON35
Black cable with Molex Minifit Jr. Connector
With hall sensors
Std. steel, IP66
Alu brackets with clevis

Inline DC Actuator
CON35
Black cable with Molex Minifit Jr. Connector
With hall sensors
Std. steel, IP66
Alu brackets with clevis

Mecvel Screwjack Type HT25
Acme screw
special flange for servomotor

Mecvel Screwjack Type HT25
Ballscrew 32x10
Front flange TF

Electric cylinder PNCE 50
Ball screw: 2005
Version: S
Piston rod thread: Male

VK PNCE50 EKL20 0 S 60 x 60
Motor adapter for PNCE 50
Motor type: flange 60 x 60 mm
Coupling: EKL20

ZKCE50 mounting att. accessory

Inline actuator with DC Motor
Ratio: 24
Cable with Molex Minifit connector
Without Hall sensors
Std steel IP66
Alu brackets

Linear unit CTV90
Ball screw 12x05
Tolerance class: ISO7
Keyway: No
Carriage: Long
Number of carriages: 1
Connection plate: No
Pu protection cover

VK CTV90 60 x 60 GESM14
Motor type: flange 60 x 60 mm
Coupling: GESM14
Mounting screws are included

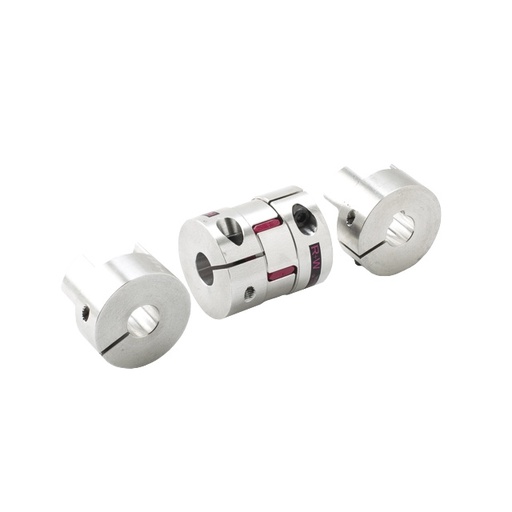

Coupling GESM14 F8 F10C
Elastomer coupling with clamping hubs
Max. transmissible torque: 3,3Nm
Screw tightening torque: 1,4Nm
Elastomer hardness: 98 Sh A
Assembly lenght tolerance after mounting: +/-1mm
Maximum radial misalignment: 0,09mm
Maximum angular misalignment: 0,9°

VK MG 32 T1 kpl
Motor adapter for MCE 32 & MSCE 32
without coupling
suitable for NEMA 11 motors (frame 28mm and Ø5mm shaft)

Linear unit CTV 90 with steppermotor AZM66
Ball Screw 12 x 05

Linear unit MGBS 32 with steppermotor AZM46
Ball Screw 08 x 08

Linear unit MGBS 32 with steppermotor AZM46
Ball Screw 08 x 08

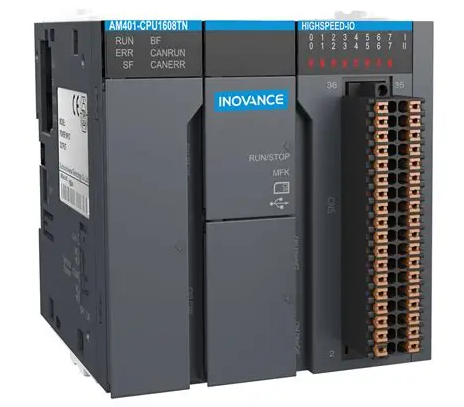

AM400 PLC controller
16 x high-speed inputs, 8 x high-speed outputs
2 x RS485, 1 x CAN port, 1 x Ethernet port, 1 x USB, supports up to 16 axes control

iCon 35 in-line actuator
black cable with molex minifit connector
icon version SDB (Single - Direction - Basic IO)
std steel with ALU brackets
Black tube and piston ring
