iCON60 in-line actuator
with integrated controller SDB
std. Steel version with Alu rear brackets with clevis
with molex connector
Black Tube and piston ring, RAL9005

iCON50 In-line actuator
Stainless steel version AISI316
Integrated controller SPP(an. position input - position ok)
with screened cable no connector
Brackets: Stainless steel with clevis
Harsh environment version IP68

CON50 in-line actuator
Stainless steel version AISI316
Without Hall Sensor
std cable, no connector
Brackets: Stianless steel with clevis
Harsh Environment version

CON60 - in-line actuator
std cable without connector
Without Hall sensors
Stainless steel version
With stainless steel Brackets with clevis

Bansbach Easylift Gas Spring
Quick ship version
Slow with strong end damping
Elbow joints with bolt and nut
Push out Force F1: 1000N
Build-in length: 624mm

Linear ball bearing KB-3-SSK ISO series 3 completely stainless steel not sealed for shaft Ø 12mm

Interface Unit

Bansbach Easylift Gas Spring
Standard version
SLow speed, increased end-damping
F1 push-out force: 1000N
with Elbowjoints wit M8x13mm bolt on both sides
EL1: 485mm

Electric cylinder PNCE 80
Ball Screw 32x10
Stroke 300mm
Piston rod: male thread

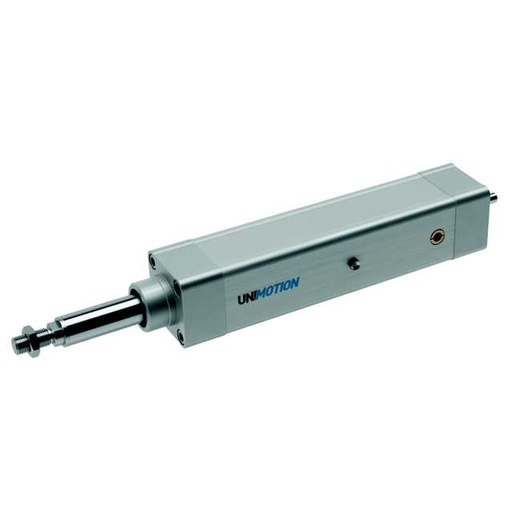

Electric cylinder PNCE 80
Ball Screw 32x10
Stroke 350mm
Piston rod: male thread

Linear Actuator with Servomotor and gear
PNCE 80
Ball Screw 32x10
Stroke 300mm
Adapter and coupling for mounting
Servomotor MAC1200 without brake - 1200W
B41 module
Gearbox PL80L1 ratio 10

Linear Actuator with Servomotor and gear
PNCE 80
Ball Screw 32x10
Stroke 350mm
Adapter and coupling for mounting
Servomotor MAC1200 without brake - 1200W
B41 module
Gearbox PL80L1 ratio 10

Linear Actuator with Servomotor and gear
PNCE 80
Ball Screw 32x10
Stroke 300mm
Adapter and coupling for mounting
Servomotor MS1H1 without brake - 1000W
Gearbox PL80L1 ratio 10

Linear Actuator with Servomotor and gear
PNCE 80
Ball Screw 32x10
Stroke 350mm
Adapter and coupling for mounting
Servomotor MS1H1 without brake - 1000W
Gearbox PL80L1 ratio 10

Bansbach Easylift Gas spring
M2 hinge eyes on both sides Ø10.2mm
Normal speed with normal end damping
Extension Force F1: 295N
Build-in lengthEL1: 610mm

Emergency stop button 2 normally closed with housing with contact blocks cable entry M20 SIL_QRBUVOO

Emergency stop button 2 normally closed / 1 normally open with housing with push button M12 connection 8-pole MBM128_NOOITI

Linear actuator with servomotor
+ Ball Screw 25 x 10
+ Electromagnetic brake
+ Frame size type 63
+ Stroke 500mm

MS1 Servomotor R-Type
Un=400V, In=3.3A, Pn=850W, Mn=5.39Nm, Nn=1500rpm,
23Bit multiturn encoder, IP67 (shaft IP65), MIL-connector,
keyed shaft, oil seal, with brake

Linear actuator with servomotor
+ Ball Screw 32 x 10
+ Electromagnetic brake
+ Frame size type 80
+ Stroke 500mm
