Hollow Rotary Actuator of the DGII-Series;

Bansbach Easylift Gas spring
M2 hinge eyes on both sides Ø10.2mm
Normal speed with normal end damping
Extension Force F1: 195N
Build-in lengthEL1: 666mm

Modbus TCP/IP Interface card
for MD290, MD500, CS710

Bansbach Easylift Gas Spring
Standard push out version
normal speed and end-damping
with hinge eyes on both sides: Ø6.2mm
EL1:266mm
F1: 100N

In-line linear actuator with DC motor
With hall sensors
Stainless steel brackets with spherical bearings

Bansbach Easylift Gas spring
CS version Ø8/19
With Ball sockets on both sides
EL1: 715
F1 145N
Valve in the threated end

De pressurizing screw for gas springs with valve
Thread size M4 for cylinder Ø12mm

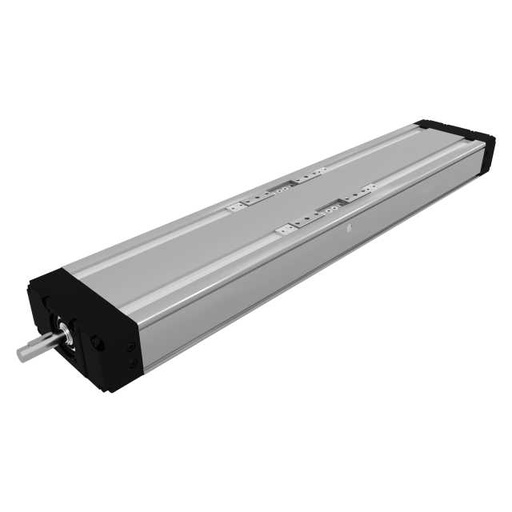

Linear unit CTV110
Total stroke: 400.0 mm
Profile length: L = 690.0 mm
Total length: 796.0 mm
Tolerance class: ISO7
Ballscrew diameter: 16.0 mm
Ballscrew pitch: 5.0 mm
Drive shaft: D 11.0 mm x 32.0 mm without keyway
Number of carriage: S2 L= 39.0 mm
Distance between carriage: A= 200.0 mm
Connecting plate: no
Protection strip: PU antistatic
Standard report

SAM:
- Holes in profile according to drawing: CTV 110 1605 ISO7 0 400 S2 200
0 1 SAM3611.pdf

HR 05 Screwjack
Stroke: 500mm
Gear ratio: 1:10
2 output axis: one for connecting to the other screwjack / one with mounted the encoder

Bansbach Easylift Gas spring
Lockable version B-type
Build in length EL1: 294mm
Push-out Force F1: 300N

MAEDLER stainless steel deep groove ball bearing single row inner Ø 17mm outer Ø 26mm width 5mm with blue NBR seals on both sides alternative marking 6803

Inline DC actuator Con35 stroke 100mm
with Hall sensors
with Molex Minifit Jr. connector
std.steel version IP66
with Alu brackets
Black tube and piston ring

Inline DC Actuator CON35
Black cable, with Molex Minifit Connector
Without hall sensors
Alu brackets

IG-32RGM, 04Type, 24V, ratio 1/14,
right angle gearbox, ball bearing
plantary gearbox and right angle are with ball bearings
+ shaft flattened over 15mm
with special shaft and cable
150mm UL1007 AWG22×2CMolex 3901-2021

ENP.000659.2

MAEDLER stainless steel deep groove ball bearing single row inner Ø 4mm outer Ø12mm width 4mm with blue NBR seals on both sides

Bansbach Easylift Gas spring
Quick ship version
with threaded ends M8
Push out Force F1: 100N
EL2: 464mm
Slow speed, strong end-damping

Tandem linear ball bearing KB-ST-VL with square flange sealed on both sides for shaft Ø 30mm long version

Bansbach Easylift Gas spring
Size 8/22 stroke 300mm
Push out Froce F1: 60N
EL1 dimension: 684mm
With A1 Hinge eyes on both sides dia 8,2mm

In-line DC actuator CON50
Black cable, with Molex Minifit connector
Without Hall sensors
Alu brackets

In-line DC actuator iCON35
With integrated controller SDB
with black cable without connnector
Brackets from Alu with Clevis
standard steel version powdercoated
