iCON35 Series

Omschrijving

Onze bestseller voor kleine heftaken is nu beschikbaar als Icon35, de intelligente in-line actuator met geïntegreerde controller.
Het is de perfecte combinatie, waarbij naadloze integratie wordt geboden zonder in te boeten aan ontwerp of efficiëntie.

  • Snelheid: 3 tot 33mm/s
  • Spanning 12 of 24VDC
  • Belastingscapaciteit: 120 tot 2200N
  • Slaglengte: 50 tot 750mm

De specifieke voordelen van de icon geïntegreerde controller:

  • Interne slagbeperking
  • Plug & Play-oplossing met conXion-box
  • Interne overstroombeveiliging en warmtebescherming
  • Gratis software voor eenvoudige installatie
  • Industriële interface MODBUS RTU op RS485
  • Interconnectie tot 128 units
  • Synchroon aansturen tot max 8units
  • Eenvoudige installatie en onderhoudsvrij
  • Slank ontwerp en overtuigende uitstraling

Aanpassingsmogelijkheden:

  • Andere slaglengtes en ingebouwde afmetingen beschikbaar op aanvraag
  • Beugels passend gemaakt voor uw toepassing
  • 'Harsh Environment' (getest volgens IP68 en IP69)
  • Verkrijgbaar in elke RAL-kleur en roestvrij staal

Contacteer Act In Time om u verder te informeren en te begeleiden in uw selectie.

Enkele producten uit deze categorie

ProductOmschrijving
Afbeelding

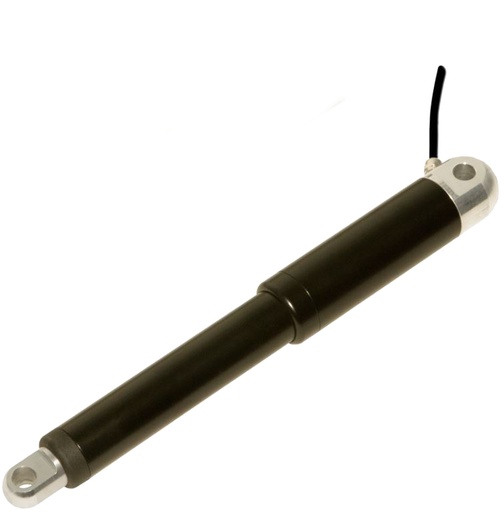

Inline DC actuator iCON35
Integrated controller MDO (Multiple actuator - Direction control - Override input)
Std steel, Harsh Environment (HE)
Black Shielded cable with Molex Minifit Jr. Connector
Alu brackets

Stroke (mm): 200 Supply Voltage (V): 24 VDC Gear: ratio 71 Linear Force (N): 2200 Linear Speed (mm/s): 3 Cable Length (m): 3

Inline DC actuator iCON35
Integrated controller MDO (Multiple actuator - Direction control - Override input)
Std steel, Harsh Environment (HE)
Black Shielded cable with Molex Minifit Jr. Connector
Alu brackets

Stroke (mm): 250 Supply Voltage (V): 24 VDC Gear: ratio 71 Linear Force (N): 2200 Linear Speed (mm/s): 3 Cable Length (m): 3

Concens iCON35 actuator
Stroke: 150 mm
Gear ratio: 71:1 (Maximum load 2200 N – Nominal speed 3 mm/s)
24 VDC
Cable length: 3 m shielded cable – Molex connector
Integrated controller: MDO – Multi-actuator
Stainless steel (AISI316) – IP66
Stainless steel tube and black piston ring

inline DC actuator iCON35
with Integrated controller SDB - Single / Direction / Basic IO (SDB)
Black Shielded cable with Molex Minifit Jr. Connector
IP66
Alu Brackets

Stroke (mm): 100 Supply Voltage (V): 24 VDC Gear: ratio 51 Linear Force (N): 1600 Linear Speed (mm/s): 4 Cable Length (m): 5

Concens iCON35 actuator
Stroke: 150 mm
Gear ratio: 71:1 (Maximum load 2200 N – Nominal speed 3 mm/s)
24 VDC
Cable length: 3 m shielded cable – Molex connector
Integrated controller: MDO – Multi-actuator
Stainless steel (AISI316) – IP66
Stainless steel tube and black piston ring
With spherical bearings

Concens iCON35 actuator
Stroke: 200 mm
Gear ratio: 27:1 (Maximum load 900 N – Nominal speed 7.5 mm/s)
24 VDC
Cable length: 5 m shielded cable – without connector
Integrated controller: SBS – Bus / Modbus
Standard steel – IP66
Black tube and black piston ring

Inline DC actuator iCon35
With Integrated controller SDB (single/direction/Basic)
Shielded cable with Molex Minifit Jr. connector
Alu brackets

Stroke (mm): 150 Supply Voltage (V): 24 VDC Gear: ratio 14 Linear Force (N): 400 Linear Speed (mm/s): 16 Cable Length (m): 3 Protection class: IP66

Inline DC actuator iCon35
With Integrated controller SDB (single/direction/Basic)
Shielded cable with Molex Minifit Jr. connector
Alu brackets
Std. Steel, Harsh Environment (HE)

Stroke (mm): 150 Supply Voltage (V): 24 VDC Gear: ratio 14 Linear Force (N): 400 Linear Speed (mm/s): 16 Cable Length (m): 3

Inline DC actuator iCon35
With Integrated controller SDB (single/direction/Basic)
Shielded cable with Molex Minifit Jr. connector
AISI316 brackets
AISI316, Harsh Environment (HE)

Stroke (mm): 150 Supply Voltage (V): 24 VDC Gear: ratio 14 Linear Force (N): 400 Linear Speed (mm/s): 16 Cable Length (m): 3

Inline DC actuator iCon35
Integrated controller - Single/Direction/Position (SDP)
Shielded cable with Molex Minifit Jr. connector
Std.steel, Harsh Environment
Alu brackets

Stroke (mm): 100 Supply Voltage (V): 24 VDC Gear: ratio 19 Linear Force (N): 600 Linear Speed (mm/s): 12 Cable Length (m): 1

Inline DC actuator iCon35
Integrated controller - Single/Position/Position (SPP)
Shielded cable with Molex Minifit Jr. connector
Std.steel, Harsh Environment
Alu brackets

Stroke (mm): 100 Supply Voltage (V): 24 VDC Gear: ratio 19 Linear Force (N): 600 Linear Speed (mm/s): 12 Cable Length (m): 1

Inline DC actuator iCon35
Integrated controller - Single/Direction/Position (SDP)
Shielded cable with Molex Minifit Jr. connector
AISI316, Harsh Environment
Brackets AISI316

Stroke (mm): 100 Supply Voltage (V): 24 VDC Gear: ratio 14 Linear Force (N): 400 Linear Speed (mm/s): 16 Cable Length (m): 1

inline DC actuator iCON35
with integrated controller Single/Direction/Basic IO (SDB)
Black cable with Molex Minifit Jr. Connector
PA Brackets

Stroke (mm): 200 Supply Voltage (V): 12 VDC Gear: ratio 27 Linear Force (N): 900 Linear Speed (mm/s): 7.5 Cable Length (m): 1 Protection class: IP66

inline DC actuator iCON35
with integrated controller Single/Direction/Basic IO (SDB)
Black cable with Molex Minifit Jr. Connector
PA Brackets

Stroke (mm): 250 Supply Voltage (V): 12 VDC Gear: ratio 27 Linear Force (N): 900 Linear Speed (mm/s): 7.5 Cable Length (m): 1 Protection class: IP66

inline DC actuator iCON35
with integrated controller Single/Direction/Basic IO (SDB)
Black cable with Molex Minifit Jr. Connector
PA Brackets

Stroke (mm): 300 Supply Voltage (V): 12 VDC Gear: ratio 27 Linear Force (N): 900 Linear Speed (mm/s): 7.5 Cable Length (m): 1 Protection class: IP66

Inline DC actuator iCON35
Integrated controller - Single/Bus/Status (SBS)
Black shielded cable, Molex Minifit Jr. Connector
Std. steel, IP66
Alu Brackets

Stroke (mm): 300 Supply Voltage (V): 24 VDC Gear: ratio 27 Linear Force (N): 900 Linear Speed (mm/s): 7.5 Cable Length (m): 9

Inline DC actuator iCON35
Integrated controller - Single/Direction/Basic IO (SDB)
Black shielded cable with Molex Minifit Jr. Connector
Alu brackets

Stroke (mm): 100 Supply Voltage (V): 24 VDC Gear: ratio 14 Linear Speed (mm/s): 16 Linear Force (N): 400 Cable Length (m): 3 Protection class: IP66

Inline DC actuator iCON35
Integrated controller - Single/Bus/Status (SBS)
Black shielded cable with Molex Minifit Jr. Connector
Alu brackets

Stroke (mm): 100 Supply Voltage (V): 24 VDC Gear: ratio 14 Linear Speed (mm/s): 16 Linear Force (N): 400 Cable Length (m): 3 Protection class: IP66

Concens Inline DC actuator iCON35
Integrated controller - Single/Position/Position (SPP)
Black shielded cable with Molex Minifit Jr. connector
Std. steel – IP66
Alu brackets

Stroke (mm): 100 Supply Voltage (V): 24 VDC Gear: ratio 27 Linear Force (N): 900 Linear Speed (mm/s): 7.5 Cable Length (m): 5 Protection class: IP66

in-line linear actuator with DC motor
Type : iCON35 SPP 12 VDC
Harsh environment version
10m black cable without connector
stroke 100mm
SPP= built-in controller for analog positioning
front bracket AISI316 with clevis
rearbracket: AISI316 w/o clevis

Stroke (mm): 100 Supply Voltage (V): 12 VDC Linear Speed (mm/s): 16 Linear Force (N): 400 Protection class: IP68
Niet gevonden wat u zocht? Contacteer ons!
