iCON35 Series

Description

Our bestseller for small lifting tasks is now available as Icon35, the intelligent in-line actuator with integrated controller.
It's the perfect combination, providing seamless integration without sacrificing design or efficiency.

Speed: 3 to 33m/s
Voltage: 12 or 24VDC
Load capacity: 120 too 2200N
Stroke length: 50 to 750mm

De specifieke voordelen van de icon geïntegreerde controller:

Internal stroke limitation
Plug & Play solution with conXion box
Internal overcurrent protection and heat protection
Free software for easy installation
Industrial interface MODBUS RTU on RS485
Interconnection up to 128 units
Synchroon aansturen tot max 8units
Easy installation and maintenance-free
Slim design and convincing appearance

Customisation options:

Other stroke lengths and built-in dimensions available on request
Brackets tailored to your application
'Harsh Environment' (tested to IP68 and IP69)
Available in any RAL color and stainless steel

Contacteer Act In Time om u verder te informeren en te begeleiden in uw selectie.

Some products from this category

Product	Description	PICTURE
350250-713237F920200 Concens	Inline DC actuator iCON35 Integrated controller MDO (Multiple actuator - Direction control - Override input) Std steel, Harsh Environment (HE) Black Shielded cable with Molex Minifit Jr. Connector Alu brackets Stroke (mm): 250 Supply Voltage (V): 24 VDC Gear: ratio 71 Linear Force (N): 2200 Linear Speed (mm/s): 3 Cable Length (m): 3
350150-713237F249000 Concens	Concens iCON35 actuator Stroke: 150 mm Gear ratio: 71:1 (Maximum load 2200 N – Nominal speed 3 mm/s) 24 VDC Cable length: 3 m shielded cable – Molex connector Integrated controller: MDO – Multi-actuator Stainless steel (AISI316) – IP66 Stainless steel tube and black piston ring
350100-513257A020000 Concens	inline DC actuator iCON35 with Integrated controller SDB - Single / Direction / Basic IO (SDB) Black Shielded cable with Molex Minifit Jr. Connector IP66 Alu Brackets Stroke (mm): 100 Supply Voltage (V): 24 VDC Gear: ratio 51 Linear Force (N): 1600 Linear Speed (mm/s): 4 Cable Length (m): 5
350150-713237F279000 Concens	Concens iCON35 actuator Stroke: 150 mm Gear ratio: 71:1 (Maximum load 2200 N – Nominal speed 3 mm/s) 24 VDC Cable length: 3 m shielded cable – Molex connector Integrated controller: MDO – Multi-actuator Stainless steel (AISI316) – IP66 Stainless steel tube and black piston ring With spherical bearings
350200-273256E020000 Concens	Concens iCON35 actuator Stroke: 200 mm Gear ratio: 27:1 (Maximum load 900 N – Nominal speed 7.5 mm/s) 24 VDC Cable length: 5 m shielded cable – without connector Integrated controller: SBS – Bus / Modbus Standard steel – IP66 Black tube and black piston ring

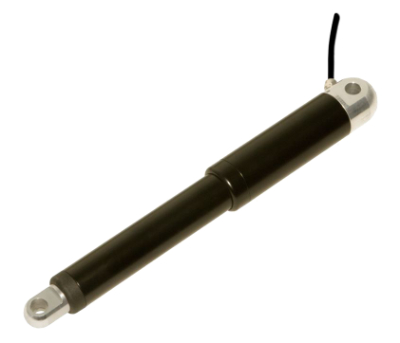

350150-143237A020000 Concens	Inline DC actuator iCon35 With Integrated controller SDB (single/direction/Basic) Shielded cable with Molex Minifit Jr. connector Alu brackets Stroke (mm): 150 Supply Voltage (V): 24 VDC Gear: ratio 14 Linear Force (N): 400 Linear Speed (mm/s): 16 Cable Length (m): 3 Protection class: IP66
350150-143237A920200 Concens	Inline DC actuator iCon35 With Integrated controller SDB (single/direction/Basic) Shielded cable with Molex Minifit Jr. connector Alu brackets Std. Steel, Harsh Environment (HE) Stroke (mm): 150 Supply Voltage (V): 24 VDC Gear: ratio 14 Linear Force (N): 400 Linear Speed (mm/s): 16 Cable Length (m): 3
350150-143237A449900 Concens	Inline DC actuator iCon35 With Integrated controller SDB (single/direction/Basic) Shielded cable with Molex Minifit Jr. connector AISI316 brackets AISI316, Harsh Environment (HE) Stroke (mm): 150 Supply Voltage (V): 24 VDC Gear: ratio 14 Linear Force (N): 400 Linear Speed (mm/s): 16 Cable Length (m): 3
NOT FOUND WHAT YOU WERE LOOKING FOR? CONTACT US!

Products
	350250-713237F920200 Concens Inline DC actuator iCON35 Integrated controller MDO (Multiple actuator - Direction control - Override input) Std steel, Harsh Environment (HE) Black Shielded cable with Molex Minifit Jr. Connector Alu brackets Stroke (mm): 250 Supply Voltage (V): 24 VDC Gear: ratio 71 Linear Force (N): 2200 Linear Speed (mm/s): 3 Cable Length (m): 3
	350150-713237F249000 Concens Concens iCON35 actuator Stroke: 150 mm Gear ratio: 71:1 (Maximum load 2200 N – Nominal speed 3 mm/s) 24 VDC Cable length: 3 m shielded cable – Molex connector Integrated controller: MDO – Multi-actuator Stainless steel (AISI316) – IP66 Stainless steel tube and black piston ring
	350100-513257A020000 Concens inline DC actuator iCON35 with Integrated controller SDB - Single / Direction / Basic IO (SDB) Black Shielded cable with Molex Minifit Jr. Connector IP66 Alu Brackets Stroke (mm): 100 Supply Voltage (V): 24 VDC Gear: ratio 51 Linear Force (N): 1600 Linear Speed (mm/s): 4 Cable Length (m): 5
	350150-713237F279000 Concens Concens iCON35 actuator Stroke: 150 mm Gear ratio: 71:1 (Maximum load 2200 N – Nominal speed 3 mm/s) 24 VDC Cable length: 3 m shielded cable – Molex connector Integrated controller: MDO – Multi-actuator Stainless steel (AISI316) – IP66 Stainless steel tube and black piston ring With spherical bearings
	350200-273256E020000 Concens Concens iCON35 actuator Stroke: 200 mm Gear ratio: 27:1 (Maximum load 900 N – Nominal speed 7.5 mm/s) 24 VDC Cable length: 5 m shielded cable – without connector Integrated controller: SBS – Bus / Modbus Standard steel – IP66 Black tube and black piston ring
	350150-143237A020000 Concens Inline DC actuator iCon35 With Integrated controller SDB (single/direction/Basic) Shielded cable with Molex Minifit Jr. connector Alu brackets Stroke (mm): 150 Supply Voltage (V): 24 VDC Gear: ratio 14 Linear Force (N): 400 Linear Speed (mm/s): 16 Cable Length (m): 3 Protection class: IP66
	350150-143237A920200 Concens Inline DC actuator iCon35 With Integrated controller SDB (single/direction/Basic) Shielded cable with Molex Minifit Jr. connector Alu brackets Std. Steel, Harsh Environment (HE) Stroke (mm): 150 Supply Voltage (V): 24 VDC Gear: ratio 14 Linear Force (N): 400 Linear Speed (mm/s): 16 Cable Length (m): 3
	350150-143237A449900 Concens Inline DC actuator iCon35 With Integrated controller SDB (single/direction/Basic) Shielded cable with Molex Minifit Jr. connector AISI316 brackets AISI316, Harsh Environment (HE) Stroke (mm): 150 Supply Voltage (V): 24 VDC Gear: ratio 14 Linear Force (N): 400 Linear Speed (mm/s): 16 Cable Length (m): 3
NOT FOUND WHAT YOU WERE LOOKING FOR? CONTACT US!

Name *

Company *

Email address *

Telephone number

Subject

Extra information

By submitting this form, I declare that I agree with the privacy policy.

Splits e-mailadressen met een komma.

Send

Would you like to see more information?

Act in time only supports professional users.

Are you a private individual? Your machine's manufacturer likely has the necessary parts. We therefore recommend contacting the manufacturer directly for assistance.

Request an account Request quote

Name *

Company *

Email *

Telephone number

Subject

Extra information

By submitting this form, I agree to the privacy policy.

Send

Name *

Company*

VAT number *

Telephone number

E-mail *

By submitting this form, I declare that I agree with the privacy policy.

Splits e-mailadressen met een komma.

Send

Catalogi & flyers

icon Data Sheet

CON35 Specificaties

Dimensions & Drawings

3D Part Configurator

User manual icon

Software

CAS software

Speed: 3 to 33m/s
Voltage: 12 or 24VDC
Load capacity: 120 too 2200N
Stroke length: 50 to 750mm

De specifieke voordelen van de icon geïntegreerde controller:

Internal stroke limitation
Plug & Play solution with conXion box
Internal overcurrent protection and heat protection
Free software for easy installation
Industrial interface MODBUS RTU on RS485
Interconnection up to 128 units
Synchroon aansturen tot max 8units
Easy installation and maintenance-free
Slim design and convincing appearance

Customisation options:

Other stroke lengths and built-in dimensions available on request
Brackets tailored to your application
'Harsh Environment' (tested to IP68 and IP69)
Available in any RAL color and stainless steel

Contacteer Act In Time om u verder te informeren en te begeleiden in uw selectie.

Meer info 350250-713237F920200 Inline DC actuator iCON35 Integrated controller MDO (Multiple actuator - Direction control - Override input) Std steel, Harsh Environment (HE) Black Shielded cable with Molex Minifit Jr. Connector Alu brackets Lees meer 555.29 € 555.29 EUR	Meer info 350150-713237F249000 Concens iCON35 actuator Stroke: 150 mm Gear ratio: 71:1 (Maximum load 2200 N – Nominal speed 3 mm/s) 24 VDC Cable length: 3 m shielded cable – Molex connector Integrated controller: MDO – Multi-actuator Stainless steel (AISI316) – IP66 Stainless steel tube and black piston ring Lees meer 849.65 € 849.65 EUR	Meer info 350100-513257A020000 inline DC actuator iCON35 with Integrated controller SDB - Single / Direction / Basic IO (SDB) Black Shielded cable with Molex Minifit Jr. Connector IP66 Alu Brackets Lees meer 446.17 € 446.17 EUR
Meer info 350150-713237F279000 Concens iCON35 actuator Stroke: 150 mm Gear ratio: 71:1 (Maximum load 2200 N – Nominal speed 3 mm/s) 24 VDC Cable length: 3 m shielded cable – Molex connector Integrated controller: MDO – Multi-actuator Stainless steel (AISI316) – IP66 Stainless steel tube and black piston ring With spherical bearings Lees meer 1,092.26 € 1092.26 EUR	Meer info 350200-273256E020000 Concens iCON35 actuator Stroke: 200 mm Gear ratio: 27:1 (Maximum load 900 N – Nominal speed 7.5 mm/s) 24 VDC Cable length: 5 m shielded cable – without connector Integrated controller: SBS – Bus / Modbus Standard steel – IP66 Black tube and black piston ring Lees meer 484.40 € 484.4 EUR	Meer info 350150-143237A020000 Inline DC actuator iCon35 With Integrated controller SDB (single/direction/Basic) Shielded cable with Molex Minifit Jr. connector Alu brackets Lees meer 443.56 € 443.56 EUR
Meer info 350150-143237A920200 Inline DC actuator iCon35 With Integrated controller SDB (single/direction/Basic) Shielded cable with Molex Minifit Jr. connector Alu brackets Std. Steel, Harsh Environment (HE) Lees meer 517.06 € 517.06 EUR	Meer info 350150-143237A449900 Inline DC actuator iCon35 With Integrated controller SDB (single/direction/Basic) Shielded cable with Molex Minifit Jr. connector AISI316 brackets AISI316, Harsh Environment (HE) Lees meer 920.23 € 920.23 EUR
