EAC series

Omschrijving

EAC is a linear drive with closed loop stepping motor incremental or absolute encoder for plug & play use.
A standard drive is available for stand-alone use, replacing pneumatic cilinders or with optional communication protocols such as Modbus RTU, Ethercat and Profinet.

  • Compact and high push force up to 500N
  • Repeatability up to +/-0.02mm
  • Linear speed up to 600mm/s
  • Stroke lengths up to 300mm
  • Protection degree IP40 or IP66 (depending on model)

Very easy to use thanks to the corresponding drivers on either 24VDC (AZD-K Serie) or 230 VAC power connection (AZD-C Serie)

Enkele producten uit deze categorie

ProductOmschrijving
Afbeelding

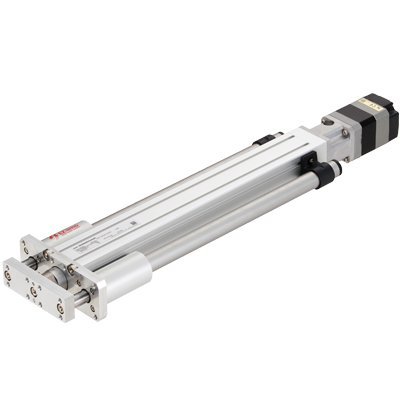

EACM2WE10AZAK-G

Orientalmotor

Miniature electric cilinder with:
+ full closed loop stepper motor
+ side bearing

Stroke (mm): 100 Supply Voltage (V): 24 VDC Encoder: Absolute Dimension (mm): 28 x 28
EACM4RE30AZAK

Orientalmotor

EAC Series linear actuators with AZ Series absolute mechanical stepper motor.
Equipped with battery-free absolute encoder
Positioning information can be known without a sensor
High reliability using closed loop control
Connection Cables Required (sold separately*)

Dimension (mm): 42 x 42 Stroke (mm): 300 Encoder: Absolute
EACM4RWD20AZMK-G

Orientalmotor

EAC Series linear actuators with AZ Series absolute mechanical stepper motor.
Equipped with battery-free absolute encoder
Positioning information can be known without a sensor
High reliability using closed loop control
Connection Cables Required (sold separately*)

Dimension (mm): 42 x 42 Stroke (mm): 200 Encoder: Absolute
EACM4RWD25AZMK-G

Orientalmotor

EAC Series linear actuators with AZ Series absolute mechanical stepper motor.
Equipped with battery-free absolute encoder
Positioning information can be known without a sensor
High reliability using closed loop control
Connection Cables Required (sold separately*)

Dimension (mm): 42 x 42 Stroke (mm): 250 Encoder: Absolute
