MD800
Omschrijving
The MD800 series is an innovative solution for multidrive applications, offering extensive functionality, flexible connectivity and a compact design.
When using multiple drives in an application, the MD800 will reduce installation costs and take up significantly less space in an electrical cabinet.
Features:
- Power rectifier:
- Single-phase 220 VAC: 2.2kW to 4.4kW
- Three-phase 220 VAC: 3.7kW to 11kW
- Three-phase 400 VAC: 3.7kW to 18.5kW
- Single-phase 220 VAC: 2.2kW to 4.4kW
- Power drives:
- 200V: 0.2kW to 3.7kW
- 400V: 0.4kW to 11kW
- 200V: 0.2kW to 3.7kW
- Communication protocols:
- Standard: USB, CANopen, CANlink, Modbus-RTU
- Optional: Profinet EtherCAT Ethernet/IP, Modbus-TCP
- Standard: USB, CANopen, CANlink, Modbus-RTU
- STO SIL 3 PL e:
Enkele producten uit deze categorie
Product | Omschrijving | Afbeelding |
---|---|---|
Products | ||
---|---|---|
SI-ECAT1
Inovance MD800 EtherCAT communication card |
||

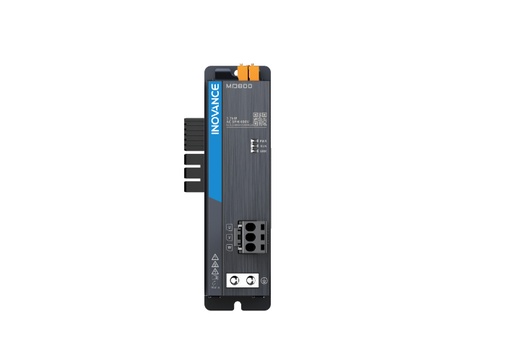

MD800-1-4T3R4S-INT
Inovance MD800 Single drive Inverter |
||
MD800-0-4T41B-INT
Inovance MD800 Drive Rectifier |
||
MD800-2-4T4R8S-INT
Inovance MD800 Dual drive Inverter |
||
MD800-2-4T1R8S-INT
Inovance MD800 Dual drive Inverter |
||
MD800-2-2T8S
Inovance MD800 Dual drive Inverter |
||
MD800-2-2T3S-INT
Inovance MD800 Dual drive Inverter |
||
MD800-1-4T13S-INT
inovance MD800 Single drive Inverter |
||
MD800-1-4T1R8S-INT
inovance MD800 Single drive Inverter |
||

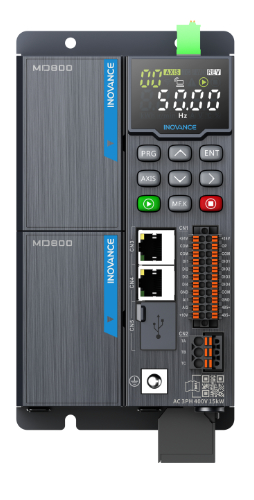

MD800-0-4T22B-INT
Inovance MD800 Drive Rectifier |
||

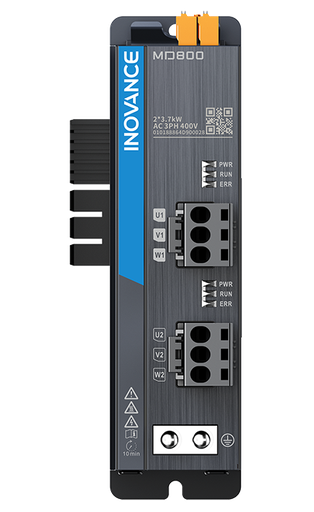

MD800-2-2T1R7S-INT
Inovance MD800 Dual drive Inverter |
||

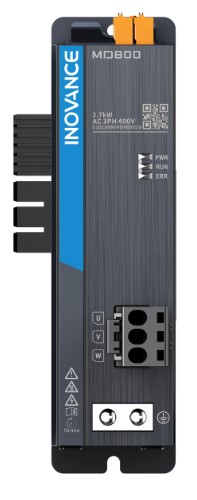

MD800-1-2T8S
Inovance MD800 Single drive Inverter |
||
MD800-1-2T5S
Inovance MD800 Single drive Inverter |
||

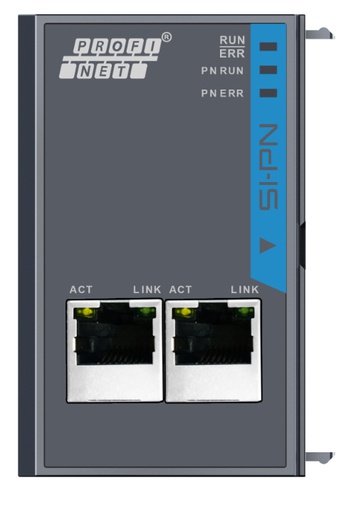

SI-PN1
Inovance Profinet communication card |
||
MD800-1-4T4R8S-INT
Inovance MD800 Single drive Inverter |
||
MD800-1-2T1R7S-INT
inovance MD800 Single drive Inverter |
||
MD800-0-2S24B-INT
Inovance MD800 Drive Rectifier |
||
MD800-2-4T5R5S-INT
Inovance MD800 Dual drive Inverter |
||
MD800-1-4T5R5S-INT
Inovance MD800 Single drive Inverter |
||

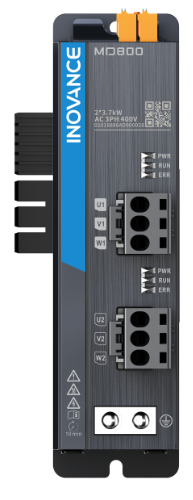

MD800-2-2T5S
Inovance MD800 Dual drive Inverter |
||
