EM Brake for MIS34x motor
+ mounted to the front of the motor, see atttached mounting inscturction
+ need connection cable (see attached datasheet for available types)

Beam coupling LA made from stainless steel max. torque 8Nm overall length 28.00mm outer diameter 19.05mm both sides bore 8mm

SKF deep groove ball bearing single row inner diameter 25mm outer diameter 47mm width 12mm shielded on both sides

Chain connecting link type 11 / E for roller chain no. 03 pitch 5mm

Sprocket KRS with hub pitch 4mm 76 teeth material steel

Sprocket KRS with hub pitch 4mm 95 teeth material steel

Roller chain no. 03 pitch 5mm

Sprocket KRS with hub pitch 5mm 8 teeth material steel

Sprocket KRS with hub pitch 5mm 09 teeth material steel

Sprocket KRS with hub pitch 5mm 10 teeth material steel

Spur gear made of polyacetal resin die-cast with hub module 1.5 30 teeth tooth width 12mm outside diameter 48mm

Quick Ship standard Gas Spring
Extended length 425mm(incl. connectings)
M2 hinge eye on piston rod end
A4 elbow joint on cylinder end.
with pressure release valve

Triple-strand plate wheel DRL without hub 08 B-3 1/2x5/16" 22 teeth material steel

Timing belt pulley from steel AT10 24 teeth belt width 32mm for taper bush 1615

Linear unit CTV 110
ISO7, with keyway
1 Long carriage
Stroke 1325mm
Ball screw 16x10
with connection plate
with inox protection cover

Planentary gearbox

Electric cylinder

1. Product Series: icon50
2. Stroke Length: 300 mm
3. Low Noise: Standard
4. Gear Ratio: 04/1
5. Voltage & Certifications: 24VDC
6. Pitch & Nut: 3mm
7. Cable Length: 9m
8. Cable Type & Connector: Black cable, Molex Minifit Connector
9. Hall Sensors/Integrated Controller (icon): icon - Integrated controller - Single/Direction/Position (SDP)
10. Steel & IP Class: Std. steel, IP66
11. Brackets: AISI316 w/clevis
12. Tube Color: Black, RAL9005, shine 25
13. Piston Ring Color: Black, standard

1. Product Series: icon50
2. Stroke Length: 150mm
3. Low Noise: Standard
4. Gear Ratio: 14/1
5. Voltage & Certifications: 24VDC
6. Pitch & Nut: 3mm
7. Cable Length: 9m
8. Cable Type & Connector: Black cable, with molex connector
9. Integrated Controller (icon): Single/Direction/Position (SDP)
10. Steel & IP Class: Std. steel, IP66
11. Brackets: Alu w/clevis
12. Tube Color: Black, RAL9005, shine 25
13. Piston Ring Color: Black, standard

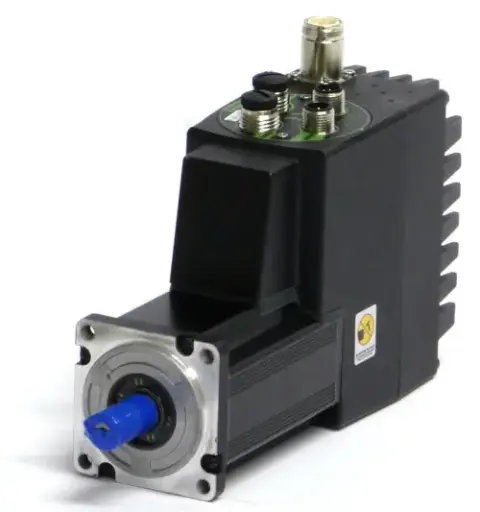

Integrated Servo Motor
