Bansbach Easylift Gas spring
Stainless steel
Push-out force F1: 600N
Build-in Length: EL1: 258mm

Concens CON35 actuator
Stroke: 500 mm
Gear ratio: 14:1 (Maximum load 400 N – Nominal speed 16 mm/s)
24 VDC
Cable length: 5 m shielded cable – without connector
With Hall sensors
Standard steel – IP66
Black tube and black piston ring

Concens CON50 actuator
Stroke: 500 mm
Gear ratio: 24:1 (Maximum load 2000 N – Nominal speed 12 mm/s)
24 VDC
Cable length: 5 m shielded cable – without connector
With Hall sensors
Standard steel – IP66
Black tube and black piston ring
Warning: Maximum load limited due to stroke > 400 mm

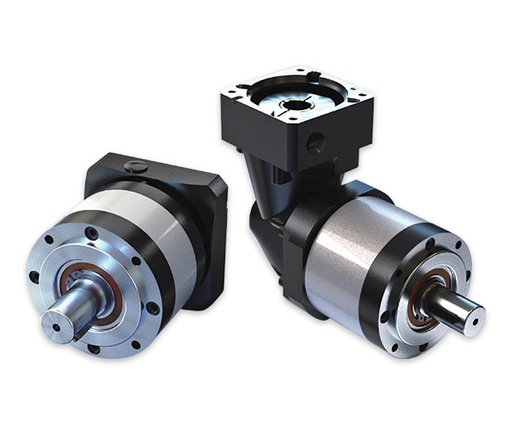

Planetary Gearbox

Planetary Gearbox

Pulse Geared Drive Ai 67
Gearmotor 24V with Ai Technology
Double bearing output shaft
Gear ratio 67:1

Cable encoder STCF E A12 05
Suitable for motor STMN 42, STMN 56
Angled connector M12, 8pin
Suitable for cable chain use
Shielded cable

319-dc gearmotor
12Vdc - 6A - IP40
Ratio: 81/1
45rpm at 8Nm
Starting torque 50Nm
Starting current 50A
shaft E35 D12 mm with keyway
Plastic wheel
with hall sensor 972 pulses

AB Nut with adjustable drag force for lead screw with
Lead 1.22 mm/rev
Screw Diameter : 3.6mm

Trapezoidal-threaded spindle DIN 103 Tr.40 x 7 x 3200 mm long single-start right material C15 rolled

nut for screw diameter 10mm / lead 12mm

Planetary Gearbox

Full Stainless Steel helical bevel gear
Size: X63N
690W, i=92.18, output speed 15.19rpm 410Nm
Input: 80 B14 ø120, Output shaft/bore: ø35
Mounting position: B3

- Close protec. cap output shaft
- Food safe lubricant mobil oil
- Life lubricated bearing for position B6/B7
- Twin viton seals - shiel for IP69K

Full Stainless Steel helical bevel gear
Size: X63N
690W, i=92.18, output speed 15.19rpm 410Nm
Input: 80 B14 ø120, Output shaft/bore: ø30
Mounting position: B3

- Close protec. cap output shaft
- Life lubricated bearing for position B6/B7
- Twin viton seals - shiel for IP69K

Full Stainless Steel helical bevel gear
Size: X63N
510W, i=125.28, output speed 11.13rpm 410Nm
Input: 71 B14 ø105, Output shaft/bore: ø35
Mounting position: B3

- Close protec. cap output shaft
- Food safe lubricant mobil oil
- Life lubricated bearing for position B6/B7
- Twin viton seals - shiel for IP69K

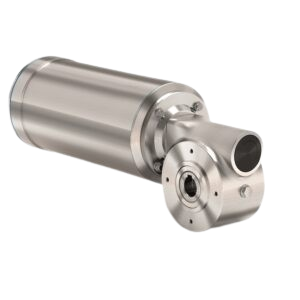

Stainless Steel Worm gearmotor
Size: N63
Motor power: 1.50kW
Mounting: UNI (Standard)
Position: B3
Output rpm (n2 [min-1]): 46.67
Output torque (M2M [Nm]): 227
Service factor (fs): 0.6
Output shaft: Hollow output shaft
Terminal Box Position: A

- Viton seals on input shaft
- Food safe lubricant mobil oil
- Twin viton seals-shield IP69K
- Life lubricated bearings on output

Stainless Steel Worm gearmotor
Size: N50
Motor power: 0.37kW
Mounting: UNI (Standard)
Position: B3
Output rpm (n2 [min-1]): 23.33
Output torque (M2M [Nm]): 88
Service factor (fs): 0.7
Output shaft: Hollow output shaft
Terminal Box Position: A

- Viton seals on input shaft
- Food safe lubricant mobil oil
- Twin viton seals-shield IP69K
- Life lubricated bearings on output

Stainless Steel Worm gearmotor
Size: N63
Motor power: 0.55kW
Mounting: UNI (Standard)
Position: B8
Output rpm (n2 [min-1]): 58.33
Output torque (M2M [Nm]): 68Nm
Service factor (fs): 2.1
Output shaft: Single output shaft
Terminal Box Position: A

- Food safe lubricant mobil oil
- Twin viton seals-shield IP69K
- Life lubricated bearings on output

Stainless Steel Worm gearmotor
Size: N50
Motor power: 0.25kW
Mounting: UNI (Standard)
Position: V5
Output rpm (n2 [min-1]): 38.89
Output torque (M2M [Nm]): 42Nm
Service factor (fs): 1.7
Output shaft: Hollow output shaft
Terminal Box Position: A

- Food safe lubricant mobil oil
- Twin viton seals-shield IP69K
- Life lubricated bearings on output

Bansbach Easylift Gas Spring
Standard version
Slow increased end-damping
Hinge eyes on both sides Ø12.2mm
F1 Force: 2500N
EL1: 712 mm
