inline DC actuator iCON50
with Integrated controller SDB - Single / Direction / Basic IO (SDB)
Black Shielded cable with Molex Minifit Jr. Connector
IP66
Alu Brackets

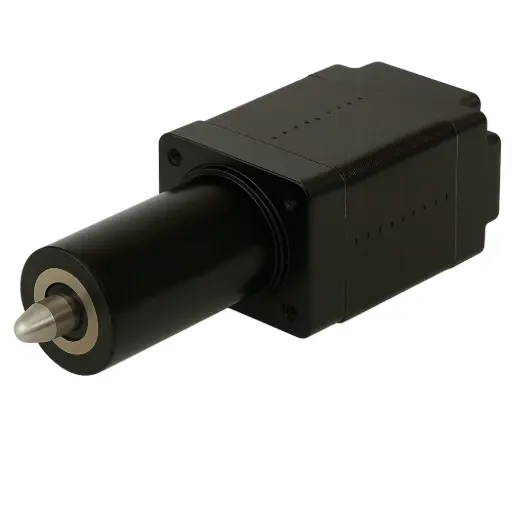

Hybrid stepper linear actuator
Actuator Type Captive, ball spline
Linear Travel Per Step (mm) 0.01
Current Per Phase 0.49 A

Concens CON35 actuator
Stroke: 200 mm
Gear ratio: 19:1 (Maximum load 600 N – Nominal speed 12 mm/s)
24 VDC
Cable length: 3 m standard cable – Molex connector
With Hall sensors
Standard steel – IP66
Black tube and black piston ring

Bansbach Easylift Gas spring
Standard version with normal speed
Normal end damping
Build in length 705mm

Low Voltage Servo Motor

Low Voltage Servo Motor

Bansbach Easylift Gas spring
Build-in length: 291mm
With elbow joints A4 on both sides

Electric cylinder PNCE 50
Ball Screw; 20x20
Stroke 300mm
Piston rod: Male thread

Electric cylinder PNCE 40
Ball Screw; 16x16
Stroke 300mm
Piston rod: Male thread

319-dc gearmotor
24Vdc - 85rpm at 4Nm starting torque 40Nm axis E35 12g6 mm with key

Planetary Gearbox

Inductive Proximity Sensor
Cylindrical
Thread Size: M12 x 1
IP67
Max DC Voltage: 30Vdc
Output type: PNP
Maximum Detection: 8 mm
Switching current: 200mA

Controller for 2 DC- actuators in parallel
DIN-bracket
Configured for con35, 24VDC (1,8 A)

Linear unit MTV80
Stroke: 1400mm
Ball Screw: 20x50
Tolerance class: ISO7
With Keyway
Carriages: 1
Screw supports: 0

Inline DC Actuator CON50
Stroke 750mm
Gear ratio: 24 (2400N - 6mm/s)
12VDC
Cable 3m with Molex Minifit Jr. Connector
Without hall sensors
Std steel, Harsh Environment
Alu brackets

VK CTV145 EMGA-80 GESM19/24 SAM1753
Gearbox adapter for CTV 145 / MTV 80 and gearbox EGMA-80 and coupling
GESM19/24 F14x F20
mounting screws included

Inline DC Actuator CON50
Stroke 600mm
Gear ratio: 24 (2400N - 6mm/s)
12VDC
Cable 3m with Molex Minifit Jr. Connector
Without hall sensors
Std steel, Harsh Environment
Alu brackets

Inline DC Actuator CON50
Stroke 750mm
Gear ratio: 24 (2400N - 6mm/s)
12VDC
Cable 3m with Molex Minifit Jr. Connector
Without hall sensors
AISI316, Harsh Environment
AISI316 brackets

Inline DC Actuator CON50
Stroke 600mm
Gear ratio: 24 (2400N - 6mm/s)
12VDC
Cable 3m with Molex Minifit Jr. Connector
Without hall sensors
AISI316, Harsh Environment
AISI316 brackets

Integrated Servo Motor
750 W - 2.4 Nm RMS
3000 RPM
24-48 VDC
