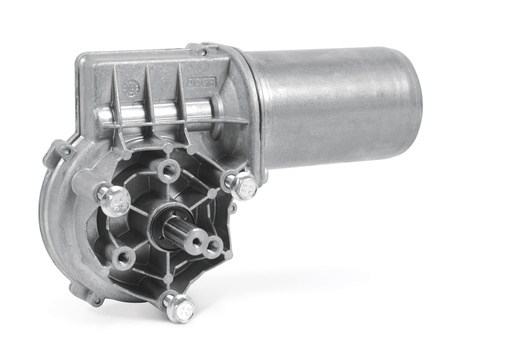

319-dc gearmotor 12Vdc 65 rpm at 6Nm 8A Input power 96W starting torque 35Nm starting curent 40A - axis E35 12f6 mm with key - connector fem. Molex-T2 pin

Bansbach Gas spring 50N
Connecting part piston rod: Hinge eyes (H1)
Connecting part cylinder: Clevises (N4)
Extended length EL2: 70mm
Extended length EL1: 98mm

VK CTJ200

Splined shaft similar to DIN ISO 14 profile KW 11x14 x 1000mm long stainless steel 1.4301

Including modification:
straightness of 0.1 mm/m

Hybrid stepper linear actuator
Current Per Phase 0.31 A
Linear Travel Per Step 0.002 / 0.051(in/mm)
Stack Length Double

VK MG 25 T1
Motor adapter for MCE 25 & MSCE 25
without coupling
suitable for NEMA 11 motors (frame 28mm and Ø5mm shaft)

Electric Linear Slides EZS Series
Reversed Motor (Left Side)
AC input

Electric Linear Slides EZS Series
Reversed Motor (Right Side)
AC input

Elbow Joint B3
for thread M5
Stainless steel AISI 303

Bansbach Easylift Gas Spring
Stainless steel AISI 316L
Normal speed and strong end-damping
A1 Hinge eyes on both sides

Motor side drive
MSD MG 32 T1
for M(S)CE32 & MGBS/MGTB 32
suitable for motor NEMA11 (size 28x28mm - shaft Ø5mm)

Inline DC actuator CON60
Hall sensors
Shielded cable with Molex Minifit Jr connector
std. Steel, Harsh Environment
Piston ring Black, Harsh Environment, std. steel
AISI316 brackets with clevis

Inline DC actuator CON60
Hall sensors
Shielded cable with Molex Minifit Jr connector
AISI316, Harsh Environment
Brackets AISI316 with clevis

MD200 Drive - NC Series
Three-phase 380 to 480 Vac -15% to +10%
Rater input currect (A): 4.5
Drive output: 0.75kW

Bevel gear made of stainless steel 1.4305
module 2,5
22 teeth
i=1:1
*** toothing geometry according to our machine data ***
*** Axial angle 90° ***
*** When placing an order, we require the installation dimensions and tooth width***.

universal joint shaft
both sides bore 12H7 min.
length 140 mm max. length 160 mm
stainless steel 1.4301
outer diameter 25 mm

Bansbach Easylift Gas Spring
Build in length: EL1: 1266mm
With hinge eyes on both sides
Push-out force F1: 5150N

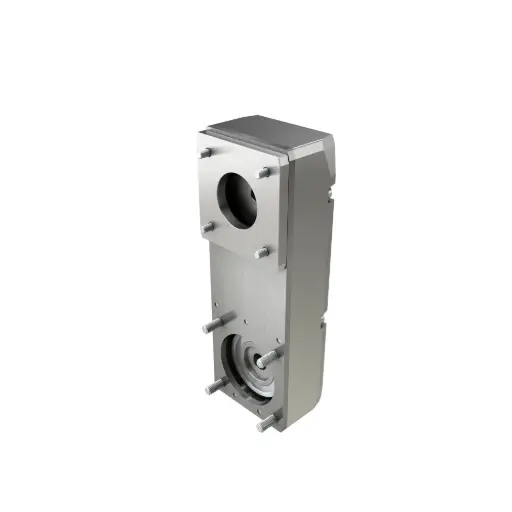

MSD MG 60 T1
Motor Side drive for
Linear Unit MGTB/MGBS 60
suitable for motor NEMA 23 (size 56x56 - shaft Ø6,35mm)

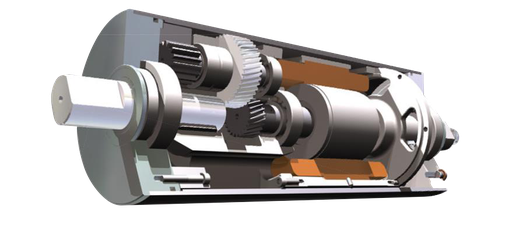

Drummotor TM113.1 x 260 0.25 0.21 stainless steel cylindrical
including sprockets (included separately)

Bansbach Easylift Lockable Gas Spring
B-type Spring locking
Stainless steel gas spring
Short release system / slow
Hinge eye cilinder side
Threaded end piston side M10x1
With valve
Build-in-length EL1: 501 mm
Push-out force F1: 300N
