2PHASE STEPPING MOTOR
Frame Size : 60 mm
Type : Flat with encoder
Resolution : 1000 CPR
Connection System :Bipolar 4 Lead Wires
Encoder Output Circuit Type : Voltage Output
Maximum Holding Torque : 0.18 N·m
Rotor Inertia J : 69×10-7 kg·m2
Basic Step Angle : 1.8°
Rated Current : 1.5 A/Phase

2PHASE STEPPING MOTOR
Frame Size : 42 mm
Type : Flat with encoder
Resolution : 400 CPR
Connection System :Bipolar 4 Lead Wires
Encoder Output Circuit Type : Voltage Output
Maximum Holding Torque : 0.1 N·m
Rotor Inertia J : 14×10-7 kg·m2
Basic Step Angle : 1.8°
Rated Current : 2.3 A/Phase

Elbow joint F4
for M4 thread

Connecting part
Clevise with clip bolt
GAK/EBL = 16MM/M4/Ø4MM

Connecting part R6
Hinge head with hole dia. 4mm
thread M4

Ball Socket F5
for M4 thread

Bansbach Easylift Gas spring
Quick Ship version
Normal Speed, normal end damping
Length EL2: 332mm
Progressivity P: +/- 21%

Bansbach Easylift Gas spring
Quick Ship version
Normal Speed, normal end damping
Length EL2: 272mm
Progressivity P: +/- 21%

Bansbach Easylift Gas spring
Quick Ship version
Normal Speed, normal end damping
Length EL2: 2322mm
Progressivity P: +/- 21%

Bansbach Easylift Gas spring
Quick Ship version
Normal Speed, normal end damping
Length EL2: 192mm
Progressivity P: +/- 21%

Bansbach Easylift Gas spring
Quick Ship version
Normal Speed, normal end damping
Length EL2: 152mm
Progressivity P: +/- 21%

Bansbach Easylift Gas spring
Quick Ship version
Normal Speed, normal end damping
Length EL2: 132mm
Progressivity P: +/- 21%

Bansbach Easylift Gas spring
Quick Ship version
Normal Speed, normal end damping
Length EL2: 112mm
Progressivity P: +/- 21%

Bansbach Easylift Gas spring
Quick Ship version
Normal Speed, normal end damping
Length EL2: 92mm
Progressivity P: +/- 21%

Bansbach Easylift Gas spring
Lockable P-type
Short release
Build-in length EL1: 313mm
Push-out Force F1: 50N

Conveyor roller S1 steel Ø=50mm RL=600mm EL=610mm AL=630mm spring axle

Linear actuator with DC motor
iCon35 series
Integrated controller - SDB- shielded cable
Configuration: Single actuator - Direction control - Basic IO

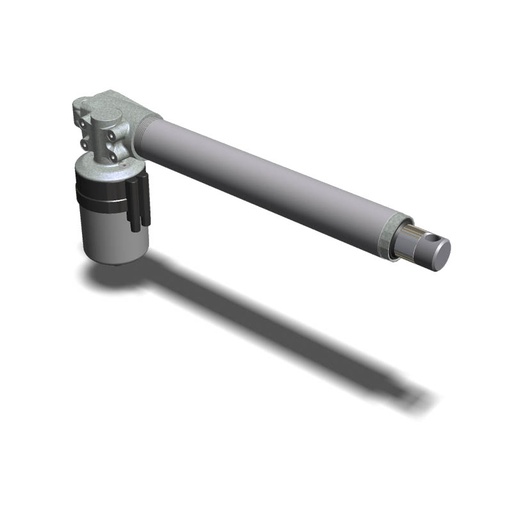

Linear Actuator without motor
Flange IEC56B14

Bansbach Easylift Gas spring
Quick Ship version
Normal Speed, normal end damping
Length EL2: 427mm
Progressivity P: +/- 27%

Bansbach Easylift Gas spring
Quick Ship version
Normal Speed, normal end damping
Length EL2: 327mm
Progressivity P: +/- 27%
