Lock. springs
1200N

Splitter Bowden wire - parallel release

Gear rack made of stainless steel 1.4305 module 1.5 tooth width 17mm height 17mm length 1000mm

PKP Series Bipolar Stepper Motor
2-Phase Spur Gear (centered shaft)

Clamp hub for elastic coupling RNKC short backlash-free size 19 outer diameter 40mm l=17mm borehole 20mm

Clamp hub for elastic coupling RNKC short backlash-free size 19 outer diameter 40mm l=17mm borehole 14mm

Bansbach Easylift Gas spring
Quick ship version
slow speed, increased end-damping

Bracket for gas springs
suitable for ball socket with AØ 10mm
Max load 1000N

Bracket for gas spring
suitable for ball socket with AØ 10mm
Max load 800N

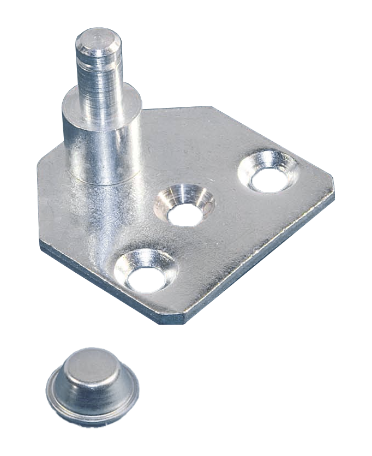

Bracket for gas springs with M8 hinge eye
including retaining clip
Max load 1000N

Gear rack made of stainless steel 1.4305 module 1.5 tooth width 17mm height 17mm length 500mm

IT7043 HMI
LCD Display 4.3"

Bansbach Easylift lockable Gas Spring
K-type with Rigid locking in both directions
Size 10/22
Push-out Force F1: 300N
stroke 80mm
EL1: 358mm
with elbowjoint on cylinder side A4
normal speed

Bansbach Easylift lockable Gas Spring
K-type with Rigid locking in pull direction
Size 10/22
Push-out Force F1: 300N
stroke 80mm
EL1: 358mm
with elbowjoint on cylinder side A4
slow speed

Bansbach Easylift lockable Gas Spring
K-type with Rigid locking in both directions
Size 10/22
Push-out Force F1: 400N
stroke 80mm
EL1: 358mm
with elbowjoint on cylinder side A4
normal speed

Bansbach Easylift lockable Gas Spring
K-type with Rigid locking in both directions
Size 10/22
Push-out Force F1: 600N
stroke 80mm
EL1: 358mm
with elbowjoint on cylinder side A4
normal speed

Spur gear stainless steel 1.4305 with hub module 2 25 teeth tooth width 20mm outside diameter 54mm

Spur gear stainless steel 1.4305 with hub module 1.5 14 teeth tooth width 17mm outside diameter 24mm

SET Mounting bracket 1 front and 1 back incl. pin & lock washer for CON50
stainless steel version

CON35 in-line actuator
Stainless steel version
no hall sensors without connector
