Driver of the BLV-R-Series;

Planetary Gearbox

AC motor of the KIIS series

With Terminal Box
Hollow right-angle shaft hypoid GV Gearhead

CON50 stroke 200mm
Ratio: 1:24 3100N - 12mm/s
Spline version (only push actuator for emergency opening)
3m of cable with Molex connector
24V DC - no Hall sensor
Housing: IP66 powerdercoated steel
Brackets: Aluminum
Tube: Black, RAL9005, shine 25
Piston ring: Black

Positioning Driver for two parallel DC-motor 12/24V DC
2x10A or 2x20Apeak, Rs-485
Analog input 0-10V

CON50 in-line actuator
with Hall Sensors
black shielded cable without connector.
Std Steel version IP66 with alu brackets

AC Servo Motor
Mn=2.39Nm
Un=230V
In=4.8A
23Bit multiturn encoder
without brake

MD200 Drive

MD200 Drive

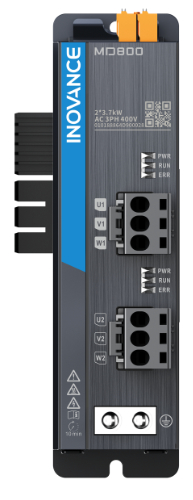

MD800 Dual drive Inverter
In=1.8A
STO, IP40

IT7100 HMI
10.1" LCD screen, 1024*600 resolution, 24bit true colour
2x RS485, 1x RS232, 1x USB slave, 1x USB host, 1x SD card slot, 1x Ethernet, built-in RTC
IP65 frontside, IP20 back side

Con35 stroke 50mm
ratio:71/1 2200N
24V DC - Low noise version
13m screened cable with molex minifit connector
with Hall sensors
Std steel Ip66 version with alu brackets
Black tube and piston ring RAL9005 shine 25

DC Actuator ALI2 24V
Stroke 230mm
110mm/s - 3000rpm
Encoder
Anti-rotation device

IT7150 HMI
15.0" LCD screen, 1600*1200 resolution, 24bit true colour
2x RS485, 1x RS232, 1x USB slave, 1x USB host, 1x SD card slot, 1x Ethernet, built-in RTC
IP65 frontside, IP20 back side.

IT7070 HMI
7.0" LCD Display, Resolution: 800*480, 24bit true colour
1x RS485, 1x USB slave, 1x USB host, 1x SD card slot, integrated RTC
IP65 from frontside, IP20 from backside

EMC filter

EMC filter

MD800 Dual drive Inverter
In=8A
STO, IP40

Communication cable for PC

MD800 Dual drive Inverter
In=3A
STO, IP40
