Easytouch Hydraulic release system for lockable gas spring
Angle connector at release cylinder
M8*1
Straight hose connector at the release head
Hose length 400mm

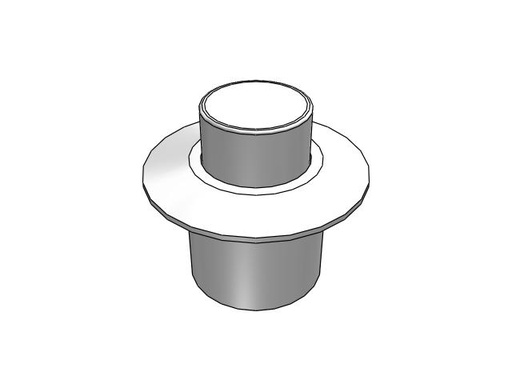

Bansbach Push button SET002
Aluminium bushing and button

Inline DC actuator iCon50
icon - Integrated controller - Multiple/Direction/Override (MDO)
Black shieled cable, Molex Minifit Connector
Std. steel, IP66
Alu brackets w/ clevis

ITS7000 HMI
ITS7000 series HMI, Professional type(Dual-core CPU),
7.0 inch LCD screen, 800×480 resolution, 24 bit true
colour, 24VDC power supply, 1x RS485, 1x RS232, 1x
USB type A, 1x USB type C, 1 x SD card slot, 1x Ethernet,
built-in RTC, new color.

Hybrid linear stepper motor, external linear type
BFWFNR-021-0383-BZ00 nut
Kerkote coating
screw length 255mm (5mm tenon incl)
Cable length (cm) : 30

VK CTJ145 90 GESM24/28
Motor type: flange 90 x 90 mm
Coupling: GESM24/28
Mounting screws are included

Slot nut T 8L M6

Slide rail (single rail) DZ 4180 Slide length 1750mm zinc plated

Bansbach Lockable spring
KX type
F1 push-out force: 910N
M2 hinge eye cylinder side

Spur gear made of steel C45 with hub module 3 22 teeth tooth width 30mm outside diameter 72mm teeth induction hardened

Including modification acc. to drawing
*** keyway without reference to toothing ***

Bansbach Easylift Gas spring
With Dynamic Groove
normal speed with end damping last 30mm
Without valve on cylinder side

Bansbach Easylift Gas Spring
Standard push out version
with hinge eyes on both sides
normal speed, normal end damping
Build-in length EL1: 687mm
Pushout force F1: 1000

Multi-axes stepper drives
+ up to 2 stepping motors (max. 3A/phase per motor)
+ mixed 2-phase and 5 phase stepping motors
+ encoder feedback
+ EM brake outputs
+ power supply for sensors
+ With Right Angle Mounting Plate

Bansbach Easylift Gas spring
Size 8/19 stroke 140mm
Push out Froce F1: 100N
EL1 dimension: 363mm
With A1 Hinge eyes on both sides dia 8,2mm

Electric cylinder PNCE 50
Ball screw: 2010
Stroke: 100mm
Version: S
Piston rod thread: Male
