Connecting part A5 Stainless steel AISI303
Clevis without clip bolt
M8, L2: 32mm, Ø8

Connecting part A7 Stainless steel
Hinge head with hole dia. 8mm
thread M8

Bansbach Easylift Gas spring
Quick Ship version - Stainless Steel 316L
With Valve
Slow Speed, strong end damping
Stroke: 500mm
Length EL2: 1064mm
Progressivity P: 39%

Bansbach Easylift Gas spring
Quick Ship version - Stainless Steel 316L
With Valve
Slow Speed, strong end damping
Stroke: 300mm
Length EL2: 664mm
Progressivity P: 39%

Bansbach Easylift Gas spring
Quick Ship version - Stainless Steel 316L
With Valve
Slow Speed, strong end damping
Stroke: 200mm
Length EL2: 464mm
Progressivity P: 39%

Bansbach Easylift Gas spring
Quick Ship version - Stainless Steel 316L
With Valve
Slow Speed, strong end damping
Stroke: 150mm
Length EL2: 364mm
Progressivity P: 39%

Elbow joint B4
Stainless steel version
for M14 thread
L=45mm ; f=20mm
Bolt M14 ; e=28mm

Connecting part B9
Stainless steel version
Clevis without clip bolt
M10, L40, Ø10H9

Connecting part A8
Stainless steel
Hinge head with hole dia. 10mm
thread M10

Bansbach Easylift Gas spring
Quick Ship version - Stainless Steel 316L
With Valve
Slow Speed, strong end damping
Stroke: 100mm
Length EL2: 262mm
Progressivity P: 52%

Bansbach Easylift Gas spring
Quick Ship version - Stainless Steel 316L
With Valve
Slow Speed, strong end damping
Stroke: 400mm
Length EL2: 862mm
Progressivity P: 52%

Bansbach Easylift Gas spring
Quick Ship version - Stainless Steel 316L
With Valve
Slow Speed, strong end damping
Stroke: 200mm
Length EL2: 462mm
Progressivity P: 52%

Bansbach Easylift Gas spring
Quick Ship version - Stainless Steel 316L
With Valve
Slow Speed, strong end damping
Stroke: 150mm
Length EL2: 362mm
Progressivity P: 52%

Bansbach Easylift Gas Spring
Build in length: EL1: 1266mm
With hinge eyes on both sides
Push-out force F1: 5070N

MAEDLER stainless steel deep groove ball bearing single row inner Ø 25mm outer Ø 42mm width 9mm with blue NBR seals on both sides alternative marking 6905

Double universal joint WDL similar to DIN808 both sides bore 18H7 with keyway 6mm (on length of 20mm) material
steel total length 112mm outer diameter 32mm based on 63073200

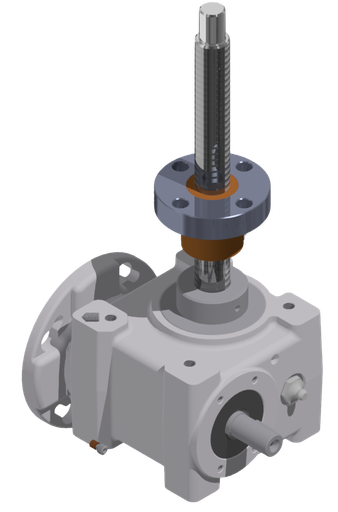

HR25 Screwjack
Worm gearbox
Acme lead screw

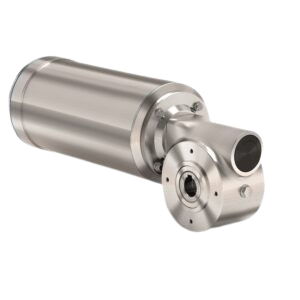

Stainless Steel Worm Gearmotor
Size: N50
250W, i=50, output speed 28rpm 53Nm
Hollow output shaft diameter 25mm
Without output flange
Mounting position: B8
Double seal for IP69K, life lubricated bearings on output
Food-grade oil

SV660 Servo Drive
In=11.9A, Imax=29,75A
STO, IP20

Bowden Wire for splitter (release head)
From splitter to release head
length1500mm
