iCON50 Series

Omschrijving

INTELLIGENTE ELEKTRISCHE IN-LINE ACTUATOR

Deze actuator biedt de perfecte oplossing als de kleinere iCON35 te kort komt op vlak van duwkracht of snelheid.

  • Snelheid: 4 tot 70mm/s
  • Spanning 12 of 24VDC
  • Belastingscapaciteit: 500 tot 4500N
  • Slaglengte: 50 tot 750mm

De specifieke icon voordelen:

  • Interne slagbeperking
  • Plug & Play-oplossing met conXion-box
  • Interne overstroombeveiliging en warmtebescherming
  • Gratis software voor eenvoudige installatie
  • Industriële interface MODBUS RTU op RS485
  • Interconnectie tot 128 units
  • Eenvoudige installatie en onderhoudsvrij
  • Slank ontwerp en overtuigende uitstraling

Aanpassingsmogelijkheden:

  • Andere slaglengtes en ingebouwde afmetingen beschikbaar op aanvraag
  • Beugels passend gemaakt voor uw toepassing
  • 'Harsh Environment' (getest volgens IP68 en IP69)
  • Verkrijgbaar in elke RAL-kleur en roestvrij staal


Enkele producten uit deze categorie

ProductOmschrijving
Afbeelding
500350-243332F060000

Concens

iCON50 stroke 350mm
Ratio 24/1 Nom.speed: 12mm/s
Nom.Force: 3100N
Max Stat.load: 16,8kN
with integrated controller
iCon MDO (multiple)
with 3m black cable (molex connector)
Std.steel version IP66
with alu brackets with Ball Bearing.
Black motor tube and piston ring.
500100-843350A030000

Concens

1. icon50
2. Stroke Length: 100 mm
3. Low Noise: Standard
4. Gear Ratio: 84/1
5. Voltage & Certifications: 24VDC
6. Pitch & Nut: 3mm
7. Cable Length: 5m
8. Cable Type & Connector: Black cable, no connector
9. icon - Integrated controller - Single/Direction/Basic IO (SDB)
10. Steel & IP Class: Std. steel, IP66
11. Brackets: Aluminum w/clevis
12. Tube Color: Black, RAL9005, shine 25
13. Piston Ring Color: Black, standard

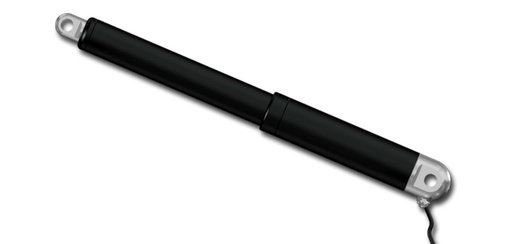

500300-043392C050000

Concens

1. Product Series: icon50
2. Stroke Length: 300 mm
3. Low Noise: Standard
4. Gear Ratio: 04/1
5. Voltage & Certifications: 24VDC
6. Pitch & Nut: 3mm
7. Cable Length: 9m
8. Cable Type & Connector: Black cable, Molex Minifit Connector
9. Hall Sensors/Integrated Controller (icon): icon - Integrated controller - Single/Direction/Position (SDP)
10. Steel & IP Class: Std. steel, IP66
11. Brackets: AISI316 w/clevis
12. Tube Color: Black, RAL9005, shine 25
13. Piston Ring Color: Black, standard

500150-143392C030000

Concens

1. Product Series: icon50
2. Stroke Length: 150mm
3. Low Noise: Standard
4. Gear Ratio: 14/1
5. Voltage & Certifications: 24VDC
6. Pitch & Nut: 3mm
7. Cable Length: 9m
8. Cable Type & Connector: Black cable, with molex connector
9. Integrated Controller (icon): Single/Direction/Position (SDP)
10. Steel & IP Class: Std. steel, IP66
11. Brackets: Alu w/clevis
12. Tube Color: Black, RAL9005, shine 25
13. Piston Ring Color: Black, standard

500350-243332E030000

Concens

1. icon50
2. Stroke Length: 350mm
3. Low Noise: Standard
4. Gear Ratio: 24/1 3100N 12mm/s
5. Voltage & Certifications: 24VDC
6. Pitch & Nut: 3mm
7. Cable Length: 3m
8. Cable Type & Connector: Black cable, Molex Minifit Connector
9. Hall Sensors/Integrated Controller (icon): icon - Integrated controller - Single/Bus/Status (SBS)
10. Steel & IP Class: Std. steel, IP66
11. Brackets: Aluminum w/clevis
12. Tube Color: Black, RAL9005, shine 25
13. Piston Ring Color: Black, standard

500200-843332D020000

Concens

iCon 50 in-line actuator
cable with molex minifit connector
iCON SPP version(Single - position input - position ok output)
alu brackets
Black tube and piston ring

Cable Length (m): 3 Stroke (mm): 200 Supply Voltage (V): 24 VDC Linear Speed (mm/s): 4 Linear Force (N): 4500 Protection class: IP66
500350-243312F060000

Concens

500350-243312F060000
iCON50 stroke 350mm
Ratio 24/1 Nom.speed: 12mm/s
Nom.Force: 3100N
Max Stat.load: 16,8kN
with integrated controller
iCon MDO (multiple)
with 1m black cable (molex connector)
Std.steel version IP66
with alu brackets with Ball Bearing.
Black motor tube and piston ring.
500500-493332+020000

Concens

CON50 stroke 500mm
Ratio 49/1 - 4500N - 6mm/s
24V DC - With Hall Sensors
3m cable with Molex Connector
std steel IP66
alu brackets
Black tube and piston ring
RAL9005, shine 25
500100-043350A030000

Concens

1. icon50
2. Stroke Length: 100 mm
3. Low Noise: Standard
4. Gear Ratio: 04/1
5. Voltage & Certifications: 24VDC
6. Pitch & Nut: 3mm
7. Cable Length: 5m
8. Cable Type & Connector: Black cable, no connector
9. icon - Integrated controller - Single/Direction/Basic IO (SDB)
10. Steel & IP Class: Std. steel, IP66
11. Brackets: Aluminum w/clevis
12. Tube Color: Black, RAL9005, shine 25
13. Piston Ring Color: Black, standard

500100-243350A030000

Concens

1. icon50
2. Stroke Length: 100 mm
3. Low Noise: Standard
4. Gear Ratio: 24/1
5. Voltage & Certifications: 24VDC
6. Pitch & Nut: 3mm
7. Cable Length: 5m
8. Cable Type & Connector: Black cable, no connector
9. icon - Integrated controller - Single/Direction/Basic IO (SDB)
10. Steel & IP Class: Std. steel, IP66
11. Brackets: Aluminum w/clevis
12. Tube Color: Black, RAL9005, shine 25
13. Piston Ring Color: Black, standard

500350-173332A449900

Concens

1. Product Series: icon50
2. Stroke Length: 350 mm
3. Low Noise: Standard
4. Gear Ratio: 17/1 2200N - 17mm/s
5. Voltage & Certifications: 24VDC
6. Pitch & Nut: 3mm
7. Cable Length: 3m
8. Cable Type & Connector: Black cable, Molex Minifit Connector
9. icon - Integrated controller - Single/Direction/Basic IO (SDB)
10. Steel & IP Class: AISI316, Harsh Environment (HE)
11. Brackets: AISI316
12. Tube Color: AISI
13. Piston Ring Color: AISI

500750-173352D249000

Concens

Linear actuator with DC motor
iCon50
Integrated controller - Single/Position/Position (SPP)
Black cable, Molex Minifit Connector

Gear: ratio 17 Cable Length (m): 5 Stroke (mm): 750 Supply Voltage (V): 24 VDC Protection class: IP66
500150-143317F459900

iCon 50 linear actuator
Integrated controller MDO for multiple actuators
with molex minifit connector
iCon version SBS (Single setup - Bus-based - status control)
Stainless steel brackets with clevis
Stainless steel tube and piston ring
Harsh Environment IP68 protection

Cable Length (m): 1 Stroke (mm): 150 Supply Voltage (V): 24 VDC Linear Speed (mm/s): 20 Linear Force (N): 1750 Protection class: IP68
500100-143332A030000

Concens in-line actuator iCON50
with integrated controller SDB (basic In&out)
Alu brackets with clevis
with molex connector

Cable Length (m): 3 Stroke (mm): 100 Supply Voltage (V): 24 VDC Linear Speed (mm/s): 20 Linear Force (N): 1750 Protection class: IP66
500200-243357C459900

iCON50 In-line actuator
Stainless steel version AISI316
Integrated controller SDP(direction input - position output)
with screened cable
Brackets: Stainless steel with clevis
Harsh environment version IP68

Cable Length (m): 5 Stroke (mm): 200 Supply Voltage (V): 24 VDC Linear Speed (mm/s): 12 Linear Force (N): 3100 Protection class: IP68
500750-143316F449000

In-line actuator iCON50
With integrated controller MDO for synchronization
(Direction input via dry contacts)
Black Shielded cable without connector
Stainless steel version (cylinder, piston & brackets)

Cable Length (m): 1 Stroke (mm): 750 Supply Voltage (V): 24 VDC Linear Speed (mm/s): 20 Linear Force (N): 1750 Protection class: IP68
500750+243337F020000

In-line linear actuator iCon50
Integrated controller MDO(Multiple-direction-override)
Black screened cable, Molex Minifit Jr. Connector
Low noise version
Alu Brackets

Stroke (mm): 750 Protection class: IP66 Cable Length (m): 3 Linear Force (N): 3100 Linear Speed (mm/s): 12 Supply Voltage (V): 24 VDC
Niet gevonden wat u zocht? Contacteer ons!
