AM Serie

Omschrijving

De AM serie bevat 3 types CPU's:

  • PLC AM320.
  • Motion Controller AM521 & AM522.
  • Advanced Motion controller: AM600.

De controllers AM320, AM521 en AM522 zijn compacte high performance controllers.
De software programmatie is Codesys gebasseerd.
PLCOpen bibliotheek is beschikbaar voor motion control.

Mogelijke communicatieprotocollen zijn:

  • Modbus RTU
  • Modbus TCP
  • EtherCAT
  • Ethernet IP
  • CANopen
  • OPC-UA

In de CPU's kunnen CAM en interpolation motion profielen worden aangemaakt voor de gemakkelijke aansturing van assen.


De Motion controller AM600 kan via de EtherCAT bus tot 32 drives aansturen met ingebouwde PLC functionaliteit..
De software programmatie is ook hier Codesys gebasseerd.

Dezelfde communicatieprotocollen als de compacte controllers zijn hier mogelijk.

Enkele producten uit deze categorie

ProductOmschrijving
Afbeelding
AM600-CPU1608TP-INT

Inovance

AM600 advanced motion controller
16 x high-speed inputs, 8 x high-speed outputs (source type, requires connectors, see below FCN-40),
1 x RS485, 1 x CAN port, 1 x Ethernet port, 1 x USB, supports up to 32 axes control

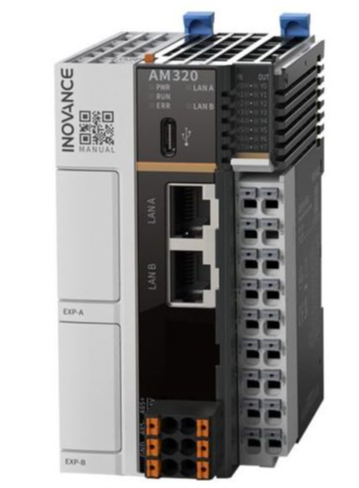

AM320-0808TN

Inovance

CPU with dual Ethernet port
Motion axis : 4 pulse control axis
Encoder axis : 4 channel encoder
Pulse output : 8 x 200KHz
Extension modules :16
Left side extension : 2 (Support communication/digital IO/analog IO/TF card/RTC)
Communication Port : 2 x Ethernet, 1 x RS485
Support : 2 x RS232 /485 extension and 1 x CAN extension
Protocols : Serial free protocol, Modbus RTU/ASC, CANlink, CANopen, Modbus TCP, EIP
Program storage 10Mbyte
Data storage 20Mbyte（512KB non-volatile）
Dimensions(WxHxD:mm) 53x100x80
Other interface : Type C，TF card(need TF card extension module)
CAM and ITP motion : Support CAM and interpolation motion
Built in IO : 8 input(sink/source) / 8 output (sink)
Programming language : Structured Text (ST), Ladder Diagram (LD), Sequential Function Chart (SFC), Continuous Function Chart (CFC)
Power input : DC24V
AM320-0808TP-INT

Inovance

CPU with dual Ethernet port
Motion axis : 4 pulse control axis
Encoder axis : 4 channel encoder
Pulse output : 8 x 200KHz
Extension modules :16
Left side extension : 2 (Support communication/digital IO/analog IO/TF card/RTC)
Communication Port : 2 x Ethernet, 1 x RS485
Support : 2 x RS232 /485 extension and 1 x CAN extension
Protocols : Serial free protocol, Modbus RTU/ASC, CANlink, CANopen, Modbus TCP, EIP
Program storage 10Mbyte
Data storage 20Mbyte（512KB non-volatile）
Dimensions(WxHxD:mm) 53x100x80
Other interface : Type C，TF card(need TF card extension module)
CAM and ITP motion : Support CAM and interpolation motion
Built in IO : 8 input(sink/source) / 8 output (source)
Programming language : Structured Text (ST), Ladder Diagram (LD), Sequential Function Chart (SFC), Continuous Function Chart (CFC)
Power input : DC24V
