Drive STDF 42 A EN
Closed-loop, high resolution and a fast response stepper drive

Electric cylinder PNCE 80
Ball Screw 32x10
Stroke 500mm

MAEDLER stainless steel deep groove ball bearing single row inner Ø 8mm outer Ø 22mm width 7mm with stainless steel shields on both sides

VK MG 32 T2 kpl
Motor adapter

DC Gearmotor
RA-14GM, ratio 1/298
03type (3V)

Electric cylinder PNCE 63
Ball Screw 25x10
Stroke 500mm

Gear rack made of stainless steel 1.4305 module 1 tooth width 15mm height 15mm length 1000mm

Integrated AC Servomotor
incl. STO M8 4pin

Rodless actuator type CTL145
Drive type: Linear motor
Built-in measurement system
Central lubrication system

Electric cylinder PNCE 40
Ball screw 16x05
Stroke 100mm
Piston rod: Female thread

Electric cylinder PNCE 40
Ball screw 16x05
Stroke 200mm

Electric cylinder PNCE 32
Ball Screw 12x05
Stroke 300mm

Electric cylinder PNCE 32
Ball Screw 12x05
Stroke 100mm

1. icon50
2. Stroke Length: 100 mm
3. Low Noise: Standard
4. Gear Ratio: 04/1
5. Voltage & Certifications: 24VDC
6. Pitch & Nut: 3mm
7. Cable Length: 5m
8. Cable Type & Connector: Black cable, no connector
9. icon - Integrated controller - Single/Direction/Basic IO (SDB)
10. Steel & IP Class: Std. steel, IP66
11. Brackets: Aluminum w/clevis
12. Tube Color: Black, RAL9005, shine 25
13. Piston Ring Color: Black, standard

1. icon50
2. Stroke Length: 100 mm
3. Low Noise: Standard
4. Gear Ratio: 24/1
5. Voltage & Certifications: 24VDC
6. Pitch & Nut: 3mm
7. Cable Length: 5m
8. Cable Type & Connector: Black cable, no connector
9. icon - Integrated controller - Single/Direction/Basic IO (SDB)
10. Steel & IP Class: Std. steel, IP66
11. Brackets: Aluminum w/clevis
12. Tube Color: Black, RAL9005, shine 25
13. Piston Ring Color: Black, standard

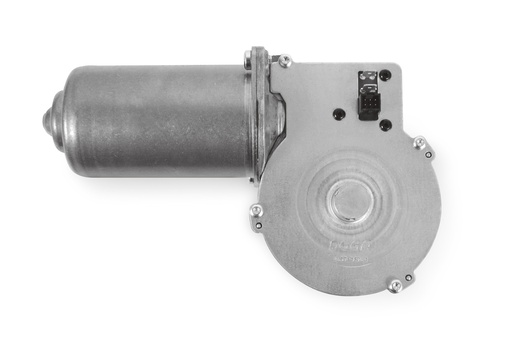

319-dc gearmotor 12Vdc 65 rpm at 6Nm 8A Input power 96W starting torque 35Nm starting curent 40A - axis E35 12f6 mm with key - connector fem. Molex-T2 pin

Power cable for AZ mini Driver

319-dc gearmotor 12Vdc 78:2 85rpm at 4Nm 6A Starting torque 40Nm Starting current 60A - IP40 - shaft E35 D12 mm with keyway - Plastic wheel - with hall sensor 468 pulses

Ball flange bearing KFL 002 bore 15mm material zinc die cast

Electric cylinder PNCE 40
Ball screw 16x05
Stroke 250mm
