CON35 In-Line Actuatoren – Compacte Lineaire Actuator

CON35 Series

Description

UN ACTIONNEUR ÉLECTRIQUE EN LIGNE COMPACT ET PUISSANT

Notre actionneur le plus polyvalent est également l’actionneur le plus vendu. Sa taille, son efficacité et son design élégant font de cet actionneur électrique en ligne la solution idéale pour presque toutes les petites tâches de levage.

Vitesse linéaire : de 3 à 33 m/s
Voltage 12 de 24VDC
Force linéaire : 120 à 2200N
Longueur de course : 50 à 750 mm
Protection standard IP66

Personnalisation:

D’autres longueurs de course et dimensions intégrées sont disponibles sur demande
Des supports conçus pour s’adapter à votre application
« Hash Environnement » (testé selon IP68 et IP69)
Avec ou sans capteurs à effet Hall pour le positionnement/la synchronisation
version ICON avec carte de pilotage intégrée
Disponible dans n’importe quelle couleur RAL et en acier inoxydable
Version homologuée pour un usage médical (24 VDC)

Quelques produits de cette catégorie

Produit	Description	IMAGE
350100-273230+920200 Concens	in-line linear actuator with DC motor CON35 Black cable, no connector With hall sensors Std. steel, Harsh Environment (HE) Alu brackets Stroke (mm): 100 Linear Force (N): 900 Linear Speed (mm/s): 7.5 Supply Voltage (V): 24 VDC Cable Length (m): 3 Gear: ratio 27
350050-513232+459900 Concens	1. Product Series: con35 2. Stroke Length: 50 mm 3. Low Noise: Standard 4. Gear Ratio: 51/1 5. Voltage & Certifications: 24VDC 6. Pitch & Nut: 2mm 7. Cable Length: 3m 8. Cable Type & Connector: Black cable, Molex Minifit Connector 9. Hall Sensors/Integrated Controller: With hall sensors 10. Steel & IP Class: AISI316, Harsh Environment (HE) 11. Brackets: AISI316 w/clevis 12. Tube Color: AISI 13. Piston Ring Color: AISI (Harsh Environment only)

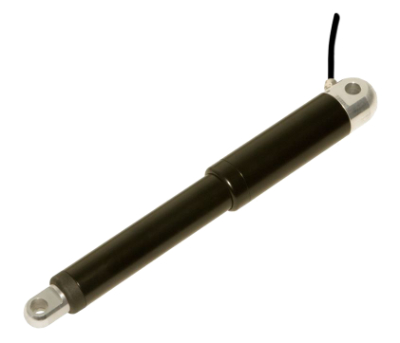

350100-143250-030000 Concens	in-line linear actuator with DC motor Cable Length (m): 5 Stroke (mm): 100 Supply Voltage (V): 24 VDC Linear Speed (mm/s): 16 Linear Force (N): 400

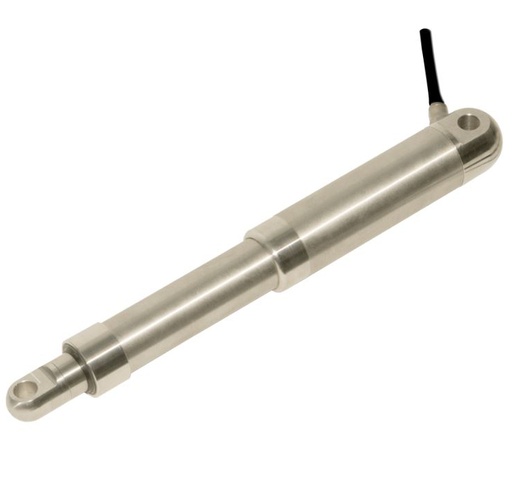

350100-713236+449900	Concens Con35 linear actuator Pitch & Nut: 2mm Cable Length: 3m Cable Type & Connector: Screened Black cable, no connector With hall sensors Steel & IP Class: AISI316, Harsh Environment (HE) Brackets: AISI316 Tube and piston Color: AISI Gear: ratio 71 Stroke (mm): 100 Supply Voltage (V): 24 VDC Linear Speed (mm/s): 3 Linear Force (N): 2200
350400+713296+030000	Inline actuator with DC motor with Hall sensor cable without connector Housing: black powerdercoated steel Brackets: Aluminum with clevis Piston ring: Black Gear: ratio 71 Cable Length (m): 9 Stroke (mm): 400 Supply Voltage (V): 24 VDC Protection class: IP66

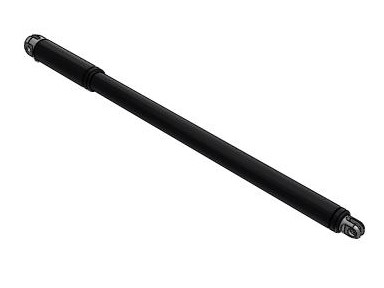

350300-053292-030000	CON35 in-line actuator Standard steel version with alu piston Black cable with Molex connector no hall sensors With alu brackets with clevis Cable Length (m): 9 Stroke (mm): 300 Supply Voltage (V): 24 VDC Linear Speed (mm/s): 33 Linear Force (N): 120 Protection class: IP66
350150-193292-020000	in-line linear actuator with DC motor Type : CON35 without Hall sensors with Molex minifit-connector front & rear bracket in Alu Cable Length (m): 9 Stroke (mm): 150 Supply Voltage (V): 24 VDC Linear Speed (mm/s): 12 Linear Force (N): 600 Protection class: IP66

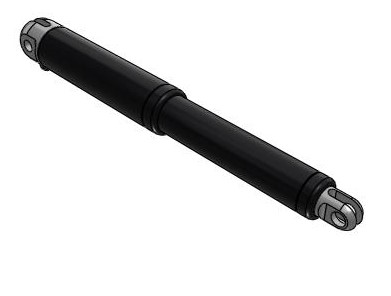

350150-273242-940200 Concens	in-line linear actuator with DC motor CON35 Black cable, Molex Minifit connector without hall sensors Std steel, harsh environment Brackets: AISI316 Gear: ratio 27 Cable Length (m): 4 Stroke (mm): 150 Supply Voltage (V): 24 VDC
350200-273242-940200 Concens	in-line linear actuator with DC motor CON35 Black cable, Molex Minifit connector without hall sensors Std steel, harsh environment Brackets: AISI316 Gear: ratio 27 Cable Length (m): 4 Stroke (mm): 200 Supply Voltage (V): 24 VDC

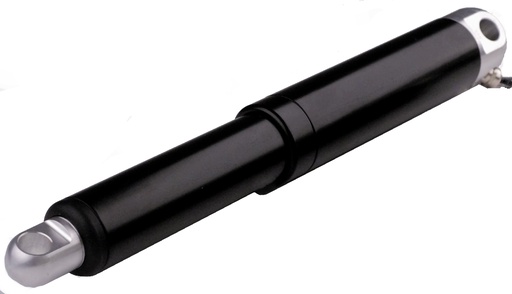

350100+193232-020000	Concens in-line actuator standard steel version reduced noise version with molex connector Cable Length (m): 3 Stroke (mm): 100 Supply Voltage (V): 24 VDC Linear Speed (mm/s): 12 Linear Force (N): 600 Protection class: IP66
350500-141252+030000	Inline DC Actuator CON35 Black cable with Molex Minifit Jr. Connector With hall sensors Std. steel, IP66 Alu brackets with clevis Gear: ratio 14 Cable Length (m): 5 Stroke (mm): 500 Supply Voltage (V): 12 VDC
350500-143252+030000	Inline DC Actuator CON35 Black cable with Molex Minifit Jr. Connector With hall sensors Std. steel, IP66 Alu brackets with clevis Gear: ratio 14 Cable Length (m): 5 Stroke (mm): 500 Supply Voltage (V): 24 VDC
350100-193222+020000 Concens	Inline DC actuator Con35 stroke 100mm with Hall sensors with Molex Minifit Jr. connector std.steel version IP66 with Alu brackets Black tube and piston ring Stroke (mm): 100 Gear: ratio 19 Linear Force (N): 600 Linear Speed (mm/s): 12 Cable Length (m): 2 Supply Voltage (V): 24 VDC
350100-191222+020000 Concens	Inline DC actuator Con35 stroke 100mm with Hall sensors with Molex Minifit Jr. connector std.steel version IP66 with Alu brackets Black tube and piston ring Stroke (mm): 100 Gear: ratio 19 Linear Force (N): 600 Linear Speed (mm/s): 9 Cable Length (m): 2 Supply Voltage (V): 12 VDC
350100-053232-020000	Inline DC Actuator CON35 Black cable, with Molex Minifit Connector Without hall sensors Alu brackets Stroke (mm): 100 Supply Voltage (V): 24 VDC Protection class: IP66 Cable Length (m): 3 Linear Speed (mm/s): 33 Linear Force (N): 120
350150-513296+020000	In-line DC Actuator CON35 With Hall sensors Screened cable Std Alu brackets Stroke (mm): 150 Supply Voltage (V): 24 VDC Cable Length (m): 9 Linear Speed (mm/s): 4 Linear Force (N): 1600 Protection class: IP66
350200-273220-020000 Concens	in-line linear actuator with DC motor CON35 Black cable, without without hall sensors Std steel Brackets: alu Gear: ratio 27 Cable Length (m): 2 Stroke (mm): 200 Supply Voltage (V): 24 VDC Protection class: IP66 Linear Force (N): 900 Linear Speed (mm/s): 7.5
350200-273220-449900 Concens	in-line linear actuator with DC motor CON35 Black cable, without connector without hall sensors Harsh Environment version AISI 316 Tube and piston Brackets: AISI316 Gear: ratio 27 Cable Length (m): 2 Stroke (mm): 200 Supply Voltage (V): 24 VDC Protection class: IP68 Linear Force (N): 900 Linear Speed (mm/s): 7.5
350200-273222-449900	CON35 in-line actuator With Molex Minifit Connector Brackets: Stainless steel AISI316 body, piston and pistonring Harsh Environment version Stroke (mm): 200 Linear Force (N): 900 Linear Speed (mm/s): 7.5 Supply Voltage (V): 24 VDC Protection class: IP68 Cable Length (m): 2
350200-273222-020000	CON35 in-line actuator With Molex Minifit Connector Brackets: alu Std steel body, Alu piston Stroke (mm): 200 Supply Voltage (V): 24 VDC Cable Length (m): 2 Linear Speed (mm/s): 7.5 Linear Force (N): 900 Protection class: IP66
RIEN TROUVÉ DE CE QUE VOUS CHERCHIEZ ? CONTACTEZ-NOUS !

Products
	350100-273230+920200 Concens in-line linear actuator with DC motor CON35 Black cable, no connector With hall sensors Std. steel, Harsh Environment (HE) Alu brackets Stroke (mm): 100 Linear Force (N): 900 Linear Speed (mm/s): 7.5 Supply Voltage (V): 24 VDC Cable Length (m): 3 Gear: ratio 27
	350050-513232+459900 Concens 1. Product Series: con35 2. Stroke Length: 50 mm 3. Low Noise: Standard 4. Gear Ratio: 51/1 5. Voltage & Certifications: 24VDC 6. Pitch & Nut: 2mm 7. Cable Length: 3m 8. Cable Type & Connector: Black cable, Molex Minifit Connector 9. Hall Sensors/Integrated Controller: With hall sensors 10. Steel & IP Class: AISI316, Harsh Environment (HE) 11. Brackets: AISI316 w/clevis 12. Tube Color: AISI 13. Piston Ring Color: AISI (Harsh Environment only)
	350100-143250-030000 Concens in-line linear actuator with DC motor Cable Length (m): 5 Stroke (mm): 100 Supply Voltage (V): 24 VDC Linear Speed (mm/s): 16 Linear Force (N): 400
	350100-713236+449900 Concens Con35 linear actuator Pitch & Nut: 2mm Cable Length: 3m Cable Type & Connector: Screened Black cable, no connector With hall sensors Steel & IP Class: AISI316, Harsh Environment (HE) Brackets: AISI316 Tube and piston Color: AISI Gear: ratio 71 Stroke (mm): 100 Supply Voltage (V): 24 VDC Linear Speed (mm/s): 3 Linear Force (N): 2200
	350400+713296+030000 Inline actuator with DC motor with Hall sensor cable without connector Housing: black powerdercoated steel Brackets: Aluminum with clevis Piston ring: Black Gear: ratio 71 Cable Length (m): 9 Stroke (mm): 400 Supply Voltage (V): 24 VDC Protection class: IP66
	350300-053292-030000 CON35 in-line actuator Standard steel version with alu piston Black cable with Molex connector no hall sensors With alu brackets with clevis Cable Length (m): 9 Stroke (mm): 300 Supply Voltage (V): 24 VDC Linear Speed (mm/s): 33 Linear Force (N): 120 Protection class: IP66
	350150-193292-020000 in-line linear actuator with DC motor Type : CON35 without Hall sensors with Molex minifit-connector front & rear bracket in Alu Cable Length (m): 9 Stroke (mm): 150 Supply Voltage (V): 24 VDC Linear Speed (mm/s): 12 Linear Force (N): 600 Protection class: IP66
	350150-273242-940200 Concens in-line linear actuator with DC motor CON35 Black cable, Molex Minifit connector without hall sensors Std steel, harsh environment Brackets: AISI316 Gear: ratio 27 Cable Length (m): 4 Stroke (mm): 150 Supply Voltage (V): 24 VDC
	350200-273242-940200 Concens in-line linear actuator with DC motor CON35 Black cable, Molex Minifit connector without hall sensors Std steel, harsh environment Brackets: AISI316 Gear: ratio 27 Cable Length (m): 4 Stroke (mm): 200 Supply Voltage (V): 24 VDC
	350100+193232-020000 Concens in-line actuator standard steel version reduced noise version with molex connector Cable Length (m): 3 Stroke (mm): 100 Supply Voltage (V): 24 VDC Linear Speed (mm/s): 12 Linear Force (N): 600 Protection class: IP66
	350500-141252+030000 Inline DC Actuator CON35 Black cable with Molex Minifit Jr. Connector With hall sensors Std. steel, IP66 Alu brackets with clevis Gear: ratio 14 Cable Length (m): 5 Stroke (mm): 500 Supply Voltage (V): 12 VDC
	350500-143252+030000 Inline DC Actuator CON35 Black cable with Molex Minifit Jr. Connector With hall sensors Std. steel, IP66 Alu brackets with clevis Gear: ratio 14 Cable Length (m): 5 Stroke (mm): 500 Supply Voltage (V): 24 VDC
	350100-193222+020000 Concens Inline DC actuator Con35 stroke 100mm with Hall sensors with Molex Minifit Jr. connector std.steel version IP66 with Alu brackets Black tube and piston ring Stroke (mm): 100 Gear: ratio 19 Linear Force (N): 600 Linear Speed (mm/s): 12 Cable Length (m): 2 Supply Voltage (V): 24 VDC
	350100-191222+020000 Concens Inline DC actuator Con35 stroke 100mm with Hall sensors with Molex Minifit Jr. connector std.steel version IP66 with Alu brackets Black tube and piston ring Stroke (mm): 100 Gear: ratio 19 Linear Force (N): 600 Linear Speed (mm/s): 9 Cable Length (m): 2 Supply Voltage (V): 12 VDC
	350100-053232-020000 Inline DC Actuator CON35 Black cable, with Molex Minifit Connector Without hall sensors Alu brackets Stroke (mm): 100 Supply Voltage (V): 24 VDC Protection class: IP66 Cable Length (m): 3 Linear Speed (mm/s): 33 Linear Force (N): 120
	350150-513296+020000 In-line DC Actuator CON35 With Hall sensors Screened cable Std Alu brackets Stroke (mm): 150 Supply Voltage (V): 24 VDC Cable Length (m): 9 Linear Speed (mm/s): 4 Linear Force (N): 1600 Protection class: IP66
	350200-273220-020000 Concens in-line linear actuator with DC motor CON35 Black cable, without without hall sensors Std steel Brackets: alu Gear: ratio 27 Cable Length (m): 2 Stroke (mm): 200 Supply Voltage (V): 24 VDC Protection class: IP66 Linear Force (N): 900 Linear Speed (mm/s): 7.5
	350200-273220-449900 Concens in-line linear actuator with DC motor CON35 Black cable, without connector without hall sensors Harsh Environment version AISI 316 Tube and piston Brackets: AISI316 Gear: ratio 27 Cable Length (m): 2 Stroke (mm): 200 Supply Voltage (V): 24 VDC Protection class: IP68 Linear Force (N): 900 Linear Speed (mm/s): 7.5
	350200-273222-449900 CON35 in-line actuator With Molex Minifit Connector Brackets: Stainless steel AISI316 body, piston and pistonring Harsh Environment version Stroke (mm): 200 Linear Force (N): 900 Linear Speed (mm/s): 7.5 Supply Voltage (V): 24 VDC Protection class: IP68 Cable Length (m): 2
	350200-273222-020000 CON35 in-line actuator With Molex Minifit Connector Brackets: alu Std steel body, Alu piston Stroke (mm): 200 Supply Voltage (V): 24 VDC Cable Length (m): 2 Linear Speed (mm/s): 7.5 Linear Force (N): 900 Protection class: IP66
RIEN TROUVÉ DE CE QUE VOUS CHERCHIEZ ? CONTACTEZ-NOUS !

Nom *

Entreprise *

Adresse e-mail *

Numéro de téléphone

Sujet

Informations supplémentaires

En envoyant ce formulaire, je déclare accepter le politique de confidentialité.

Splits e-mailadressen met een komma.

Envoyer

Vous souhaitez obtenir plus d'informations ?

Act in time ne prend en charge que les questions provenant d'utilisateurs professionnels.

Vous êtes un particulier? Le fabricant de votre machine dispose probablement des pièces nécessaires. Nous vous recommandons donc de le contacter directement.

Demander un compte Demander un devis

Nom *

Entreprise *

Adresse e-mail *

Numéro de téléphone

Sujet

Informations supplémentaires

En envoyant ce formulaire, j'accepte les conditions générales. politique de confidentialité.

Envoyer

Nom *

Entreprise *

Numéro de TVA *

Numéro de téléphone

Adresse e-mail *

En envoyant ce formulaire, je déclare accepter le politique de confidentialité.

Splits e-mailadressen met een komma.

Envoyer

UN ACTIONNEUR ÉLECTRIQUE EN LIGNE COMPACT ET PUISSANT

Vitesse linéaire : de 3 à 33 m/s
Voltage 12 de 24VDC
Force linéaire : 120 à 2200N
Longueur de course : 50 à 750 mm
Protection standard IP66

Personnalisation:

D’autres longueurs de course et dimensions intégrées sont disponibles sur demande
Des supports conçus pour s’adapter à votre application
« Hash Environnement » (testé selon IP68 et IP69)
Avec ou sans capteurs à effet Hall pour le positionnement/la synchronisation
version ICON avec carte de pilotage intégrée
Disponible dans n’importe quelle couleur RAL et en acier inoxydable
Version homologuée pour un usage médical (24 VDC)

INFORMATION 350100-273230+920200 in-line linear actuator with DC motor CON35 Black cable, no connector With hall sensors Std. steel, Harsh Environment (HE) Alu brackets Lire plus 404,48 € 404.48 EUR	INFORMATION 350050-513232+459900 1. Product Series: con35 2. Stroke Length: 50 mm 3. Low Noise: Standard 4. Gear Ratio: 51/1 5. Voltage & Certifications: 24VDC 6. Pitch & Nut: 2mm 7. Cable Length: 3m 8. Cable Type & Connector: Black cable, Molex Minifit Connector 9. Hall Sensors/Integrated Controller: With hall sensors 10. Steel & IP Class: AISI316, Harsh Environment (HE) 11. Brackets: AISI316 w/clevis 12. Tube Color: AISI 13. Piston Ring Color: AISI (Harsh Environment only) Lire plus 810,51 € 810.51 EUR	INFORMATION 350100-143250-030000 in-line linear actuator with DC motor Lire plus 288,70 € 288.7 EUR
INFORMATION 350100-713236+449900 Concens Con35 linear actuator Pitch & Nut: 2mm Cable Length: 3m Cable Type & Connector: Screened Black cable, no connector With hall sensors Steel & IP Class: AISI316, Harsh Environment (HE) Brackets: AISI316 Tube and piston Color: AISI Lire plus 818,95 € 818.95 EUR	INFORMATION 350400+713296+030000 Inline actuator with DC motor with Hall sensor cable without connector Housing: black powerdercoated steel Brackets: Aluminum with clevis Piston ring: Black Lire plus 446,19 € 446.19 EUR	INFORMATION 350300-053292-030000 CON35 in-line actuator Standard steel version with alu piston Black cable with Molex connector no hall sensors With alu brackets with clevis Lire plus 333,47 € 333.47 EUR
INFORMATION 350150-193292-020000 in-line linear actuator with DC motor Type : CON35 without Hall sensors with Molex minifit-connector front & rear bracket in Alu Lire plus 299,50 € 299.5 EUR	INFORMATION 350150-273242-940200 in-line linear actuator with DC motor CON35 Black cable, Molex Minifit connector without hall sensors Std steel, harsh environment Brackets: AISI316 Lire plus 399,85 € 399.85 EUR	INFORMATION 350200-273242-940200 in-line linear actuator with DC motor CON35 Black cable, Molex Minifit connector without hall sensors Std steel, harsh environment Brackets: AISI316 Lire plus 409,11 € 409.11 EUR
INFORMATION 350100+193232-020000 Concens in-line actuator standard steel version reduced noise version with molex connector Lire plus 297,97 € 297.97 EUR	INFORMATION 350500-141252+030000 Inline DC Actuator CON35 Black cable with Molex Minifit Jr. Connector With hall sensors Std. steel, IP66 Alu brackets with clevis Lire plus 427,64 € 427.64 EUR	INFORMATION 350500-143252+030000 Inline DC Actuator CON35 Black cable with Molex Minifit Jr. Connector With hall sensors Std. steel, IP66 Alu brackets with clevis Lire plus 427,64 € 427.64 EUR
INFORMATION 350100-193222+020000 Inline DC actuator Con35 stroke 100mm with Hall sensors with Molex Minifit Jr. connector std.steel version IP66 with Alu brackets Black tube and piston ring Lire plus 322,66 € 322.66 EUR	INFORMATION 350100-191222+020000 Inline DC actuator Con35 stroke 100mm with Hall sensors with Molex Minifit Jr. connector std.steel version IP66 with Alu brackets Black tube and piston ring Lire plus Contactez-nous pour le meilleur prix 0.0 EUR	INFORMATION 350100-053232-020000 Inline DC Actuator CON35 Black cable, with Molex Minifit Connector Without hall sensors Alu brackets Lire plus 280,97 € 280.97 EUR
INFORMATION 350150-513296+020000 In-line DC Actuator CON35 With Hall sensors Screened cable Std Alu brackets Lire plus 376,71 € 376.71 EUR	INFORMATION 350200-273220-020000 in-line linear actuator with DC motor CON35 Black cable, without without hall sensors Std steel Brackets: alu Lire plus 297,97 € 297.97 EUR	INFORMATION 350200-273220-449900 in-line linear actuator with DC motor CON35 Black cable, without connector without hall sensors Harsh Environment version AISI 316 Tube and piston Brackets: AISI316 Lire plus 811,43 € 811.43 EUR
INFORMATION 350200-273222-449900 CON35 in-line actuator With Molex Minifit Connector Brackets: Stainless steel AISI316 body, piston and pistonring Harsh Environment version Lire plus 811,43 € 811.43 EUR	INFORMATION 350200-273222-020000 CON35 in-line actuator With Molex Minifit Connector Brackets: alu Std steel body, Alu piston Lire plus 297,97 € 297.97 EUR
