STMN Series

Description

Closed-loop UNIMOTION stepper systems consists of a stepper motors and drives which offer a simple Plug & Drive solution for precise automation, with Profinet, Ethernet, EtherCAT and Pulse-direction communication so that each application can be personalised according to individual specifications.

Plug & Drive
Motor sizes: 28, 42, 56
Communications: Profinet, Ethernet, EtherCAT, Pulse/direction
Closed-loop system
No gain tunning
Brake control

Quelques produits de cette catégorie

ProduitOmschrijving
Afbeelding
109425

Unimotion

Stepper motor type STMN 42 L E
High torque, NEMA 17 stepper motor with M12 type connectors
Plug & Drive solution with Unimotion drives
Mass moment of inertia: 0,082 kg cm^2
Encoder resolution: 2000 ppr
Without brake
RoHS 2011/65/EU, 2015/863/EU approved

Dimension (mm): 42 x 42 Holding Torque (Nm): 0.5 Encoder: Incremental Protection class: IP65

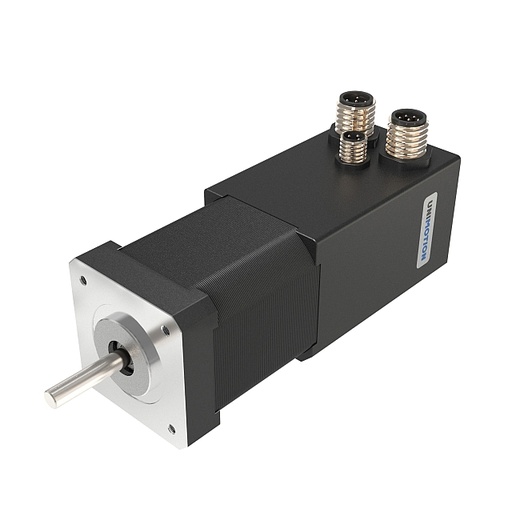

109426

Unimotion

Stepper motor type STMN 42 L E B
High torque, NEMA 17 stepper motor M type connectors
Plug & Drive solution with Unimotion drives
Mass moment of inertia: 0,082 kg cm^2
Encoder resolution: 2000 ppr
Brake holding torque: 0,4 Nm
Brake power consumption: 8 W
RoHS 2011/65/EU, 2015/863/EU approved

Dimension (mm): 42 x 42 Holding Torque (Nm): 0.5 Encoder: Incremental Electromagnetic Brake: Yes Protection class: IP65
109428

Unimotion

Stepper motor STMN 56 L E B
High torque, NEMA 23 stepper motor with M type connectors

Dimension (mm): 56 x 56 Holding Torque (Nm): 1.87 Encoder: Incremental Electromagnetic Brake: Yes Protection class: IP65
109427

Unimotion

Stepper motor STMN 56 L E
High torque, NEMA 23 stepper motor with M type connectors

Dimension (mm): 56 x 56 Holding Torque (Nm): 1.87 Encoder: Incremental Electromagnetic Brake: No Protection class: IP65
RIEN TROUVÉ DE CE QUE VOUS CHERCHIEZ ? CONTACTEZ-NOUS !
Products
109425

Unimotion

Stepper motor type STMN 42 L E
High torque, NEMA 17 stepper motor with M12 type connectors
Plug & Drive solution with Unimotion drives
Mass moment of inertia: 0,082 kg cm^2
Encoder resolution: 2000 ppr
Without brake
RoHS 2011/65/EU, 2015/863/EU approved

Dimension (mm): 42 x 42 Holding Torque (Nm): 0.5 Encoder: Incremental Protection class: IP65
109426

Unimotion

Stepper motor type STMN 42 L E B
High torque, NEMA 17 stepper motor M type connectors
Plug & Drive solution with Unimotion drives
Mass moment of inertia: 0,082 kg cm^2
Encoder resolution: 2000 ppr
Brake holding torque: 0,4 Nm
Brake power consumption: 8 W
RoHS 2011/65/EU, 2015/863/EU approved

Dimension (mm): 42 x 42 Holding Torque (Nm): 0.5 Encoder: Incremental Electromagnetic Brake: Yes Protection class: IP65
109428

Unimotion

Stepper motor STMN 56 L E B
High torque, NEMA 23 stepper motor with M type connectors

Dimension (mm): 56 x 56 Holding Torque (Nm): 1.87 Encoder: Incremental Electromagnetic Brake: Yes Protection class: IP65
109427

Unimotion

Stepper motor STMN 56 L E
High torque, NEMA 23 stepper motor with M type connectors

Dimension (mm): 56 x 56 Holding Torque (Nm): 1.87 Encoder: Incremental Electromagnetic Brake: No Protection class: IP65
RIEN TROUVÉ DE CE QUE VOUS CHERCHIEZ ? CONTACTEZ-NOUS !
