High Torque Stepper Motor

Linear unit MGBS 45
Ball screw 10x3
Stroke 600mm

Stepper motor type STMN 42 L E
High torque, NEMA 17 stepper motor with M12 type connectors
Plug & Drive solution with Unimotion drives
Mass moment of inertia: 0,082 kg cm^2
Encoder resolution: 2000 ppr
Without brake
RoHS 2011/65/EU, 2015/863/EU approved

Drive STDF 42 A EN
Closed-loop, high resolution and a fast response stepper drive

Linear unit MGBS 45
Ball screw 10x3
Stroke 800mm

Electric cylinder PNCE 80
Ball Screw 32x10
Stroke 500mm

MAEDLER stainless steel deep groove ball bearing single row inner Ø 8mm outer Ø 22mm width 7mm with stainless steel shields on both sides

VK MG 32 T2 kpl
Motor adapter for MCE32 & MSCE32
without coupling
for motor NEMA17 (size 42mm & Ø5mm motor shaft)

Electric cylinder PNCE 63
Ball Screw 25x10
Stroke 500mm

Gear rack made of stainless steel 1.4305 module 1 tooth width 15mm height 15mm length 1000mm

Integrated AC Servomotor
incl. STO M8 4pin

Rodless actuator type CTL145
Drive type: Linear motor
Built-in measurement system
Central lubrication system

Electric cylinder PNCE 40
Ball screw 16x05
Stroke 100mm
Piston rod: Female thread

Electric cylinder PNCE 40
Ball screw 16x05
Stroke 200mm

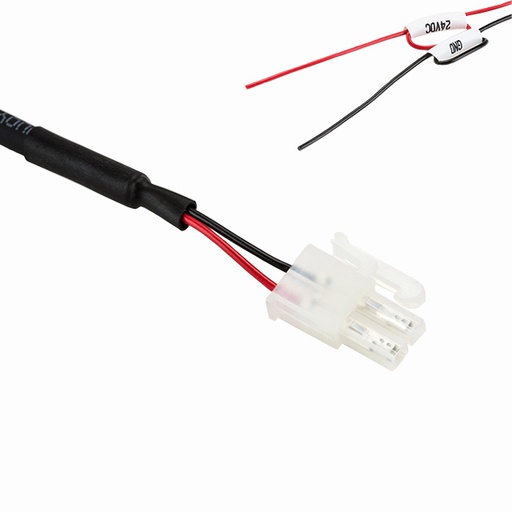

Cable set for AZ-series
Connects AZM46, AZM48, AZM66, AZM69 motors to AZ-mini driver or AZ Multi-axis Slim type driver
Standard cable version
Cable length: 1 m

Electric cylinder PNCE 32
Ball Screw 12x05
Stroke 300mm

Electric cylinder PNCE 32
Ball Screw 12x05
Stroke 100mm

BLV-R series Brushless DC Motor

1. icon50
2. Stroke Length: 100 mm
3. Low Noise: Standard
4. Gear Ratio: 04/1
5. Voltage & Certifications: 24VDC
6. Pitch & Nut: 3mm
7. Cable Length: 5m
8. Cable Type & Connector: Black cable, no connector
9. icon - Integrated controller - Single/Direction/Basic IO (SDB)
10. Steel & IP Class: Std. steel, IP66
11. Brackets: Aluminum w/clevis
12. Tube Color: Black, RAL9005, shine 25
13. Piston Ring Color: Black, standard

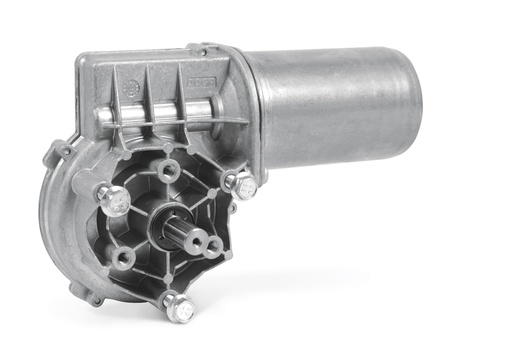

319-dc gearmotor 12Vdc 65 rpm at 6Nm 8A Input power 96W starting torque 35Nm starting curent 40A - axis E35 12f6 mm with key - connector fem. Molex-T2 pin
