1. icon50
2. Stroke Length: 100 mm
3. Low Noise: Standard
4. Gear Ratio: 04/1
5. Voltage & Certifications: 24VDC
6. Pitch & Nut: 3mm
7. Cable Length: 5m
8. Cable Type & Connector: Black cable, no connector
9. icon - Integrated controller - Single/Direction/Basic IO (SDB)
10. Steel & IP Class: Std. steel, IP66
11. Brackets: Aluminum w/clevis
12. Tube Color: Black, RAL9005, shine 25
13. Piston Ring Color: Black, standard

319-dc gearmotor 12Vdc 65 rpm at 6Nm 8A Input power 96W starting torque 35Nm starting curent 40A - axis E35 12f6 mm with key - connector fem. Molex-T2 pin

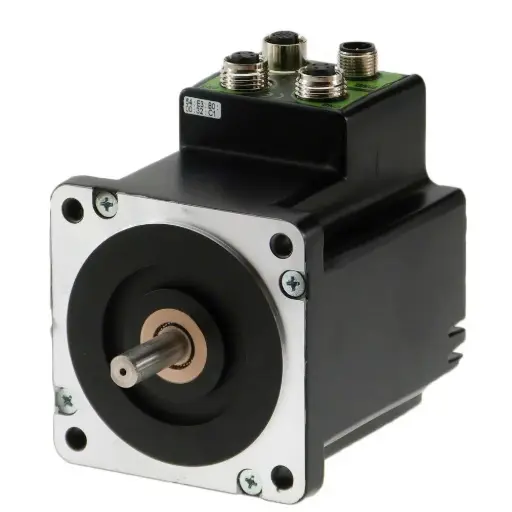

Integrated Servo Motor
320W - 0.8Nm
RMS
4000RPM
12-48VDC
High Torque, Ethernet Ready
incl. HW STO M8 4pin

Power cable for AZ mini Driver

319-dc gearmotor 12Vdc 78:2 85rpm at 4Nm 6A Starting torque 40Nm Starting current 60A - IP40 - shaft E35 D12 mm with keyway - Plastic wheel - with hall sensor 468 pulses

Cable set for AZ-mini
Connects AZM14, AZM15, AZM24, AZM26 motors to AZ mini Driver (AZD-KR2D & AZD-KRED)
standard version

Ball flange bearing KFL 002 bore 15mm material zinc die cast

Linear unit MGBS 60
Ball screw 12x5
max travel speed: 0.483m/s
without motor

Electric cylinder PNCE 40
Ball screw 16x05
Stroke 250mm

DC Actuator ALI1-F 24V
With limit switches

319-dc gearmotor 12Vdc 85rpm at 4Nm 6A Input starting torque 40Nm starting curent 60A - axis E35 12f6 mm with key - IP65 with integrated Hall sensor 468p/rot

Electric cylinder PNCE 40
Ball screw 16x16
Stroke 750mm

Electric cylinder PNCE 40
Ball screw 16x05
Stroke 750mm

Cable set for AZ-mini
Connects AZM14, AZM15, AZM24, AZM26 motors to AZ mini Driver (AZD-KR2D & AZD-KRED)
Flexible cable version
Cable length: 3 m

Worm gear unit KES 30 version B center distance 30mm ratio 17:1 output hollow shaft 14mm

Steppingmotor PKP Bipolar with Harmonic drive Gear ratio 100:1 - Step Angle 0.018°
Rated Current: 2.3 A - Holding Torque 2.4 Nm - Speed Range 0-35 rpm
Frame Size 51 mm x 51 mm - Connection Type 4 Leads

PNCE 32
BS 1205
Stroke 100mm
IP65CR

Screwjack

Conveyor roller S1 steel Ø=80mm RL=400mm EL=422mm AL=452mm external thread
