Controller for a single DC actuator 12/24VDC
Positioning via analog voltage input
Adjustable start- and stop ramp
Settable current limit (max.Ip 20A)
Max Cont. current 15A
Din-rail version

Bracket for gas springs with M8 hinge eye
including quick-fastener
Max load 1000N

Alu Push Button for lockable gasspring
Suitable for short release
With coil spring

Open loop driver for 2 phase stepping motor

Driver of the BLE2-Series;

Integrated AC Servomotor

Integrated AC Servomotor

Planetary Gearbox

Spur gear made of steel C45 with hub module 1.5 15 teeth tooth width 10mm outside diameter 25.5mm

De pressurizing screw for gas springs with valve
Thread size M10

Quick Ship standard Gas Spring
stroke 150mm
Extended length 430mm(incl. connectings)
M2 hinge eye on piston rod end
D9 clevis on cylinder end.
with valve

Double-strand sprocket ZRF with hub 10 B-2 16 teeth material steel bore 30H7 keyway DIN 6885/1 2 set screw threads teeth induction hardened

AC Servo Motor
Mn=0.64Nm
Un=230V
In=1.5A
23Bit multiturn encoder
without brake

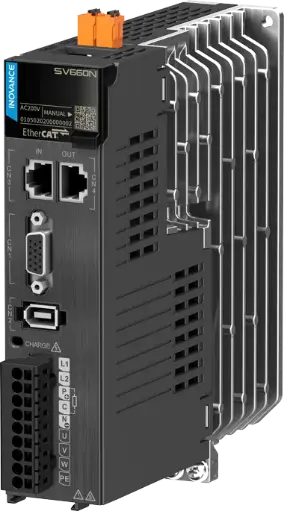

SV660 Servo Drive
In=5.5A, Imax=16.9A
STO, IP20

SV660 Servo Drive
In=5.5A, Imax=16.9A
STO, IP20

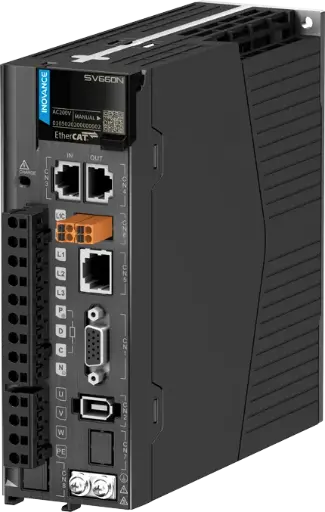

SV660 Servo Drive
In=25.7A, Imax=65A
STO, IP20

SV660 Servo Drive
In=5.4A, Imax=14A
STO, IP20

SV670 Servo Drive
In=16.5A, Imax=42A
STO, IP20

SV670 Servo Drive
In=3.5A, Imax=8.5A
STO, IP20

SV670 Servo Drive
In=5.4A, Imax=14A
STO, IP20
