Bansbach Easylift Gas Spring
Standard push out version
with hinge eyes on both sides
normal speed, normal end damping
Build-in length EL1: 687mm
Pushout force F1: 1000

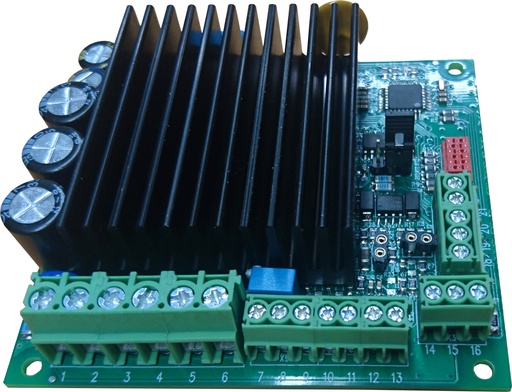

Multi-axes stepper drives
+ up to 2 stepping motors (max. 3A/phase per motor)
+ mixed 2-phase and 5 phase stepping motors
+ encoder feedback
+ EM brake outputs
+ power supply for sensors
+ With Right Angle Mounting Plate

Bansbach Easylift Gas spring
Size 8/19 stroke 140mm
Push out Froce F1: 100N
EL1 dimension: 363mm
With A1 Hinge eyes on both sides dia 8,2mm

Electric cylinder PNCE 50
Ball screw: 2010
Stroke: 100mm
Version: S
Piston rod thread: Male

Bansbach Easylift Gas spring
Build in length EL1: 417mm
Push-out Force F1: 2600N

Inline DC actuator CON35
Without hall sensors
Black cable, Molex Minifit Jr. Connector
Std. steel, IP66
Alu Brackets w/clevis

Electric cylinder PNCE 80
Ball Screw 32x10
Stroke 150mm
Piston rod: male thread
Food grade version

MSD PNCE80 T1 1 IP65CR
Side drive for
Electric cylinder PNCE 80
Reduction ratio: 1
IP65CR

Bansbach Easylift Gas spring

MSD PNCE32 T1 1 S
Side drive for Electric cylinder PNCE32
Reduction ratio: 1

for motor Siemens 1FK2203-2AK00-0MA0

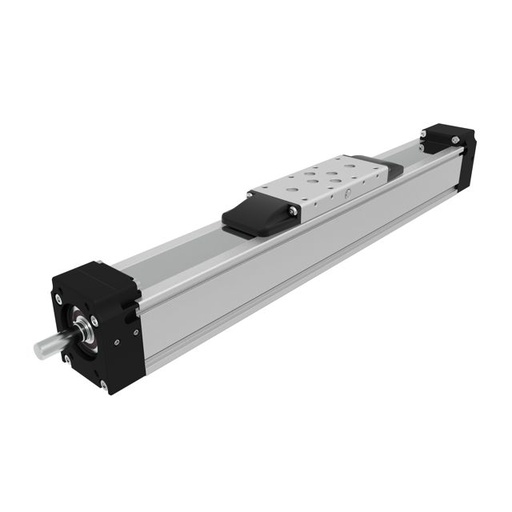

Linear unit MTV65
Ball screw: 16x10
Tolerance class: ISO7
With keyway
Stroke: 300mm
1 carriage

AC Servo Motor
Mn=0.64Nm
Un=230V
In=1.5A
23Bit multiturn encoder
without brake

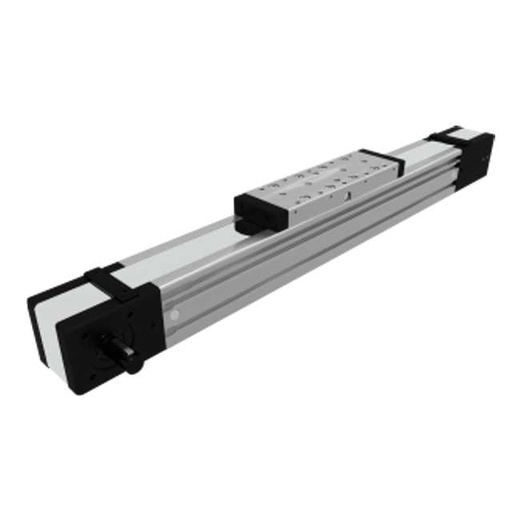

Linear unit MTJ 65
Carriage: long
Number of carriages: 1
Drive pulley: both sides with keyway
Without protection cover

Linear unit MTJ 65
Carriage: long
Number of carriages: 1
Drive pulley: right with keyway
Without protection cover

Synchronization shaft: OSL
Linear unit MTJ 65 to linear unit MTJ 65
Size 19/24
Distance LM: 1080mm
Drive shaft: F16C
Driven shaft: F16C

Coupling GESM19/24 F14C F16C

BLDC Servo Motor

In-line linear actuator with DC motor
Food grade grease

Bansbach Easylift Gas Spring

Lockable gas spring
2670N
