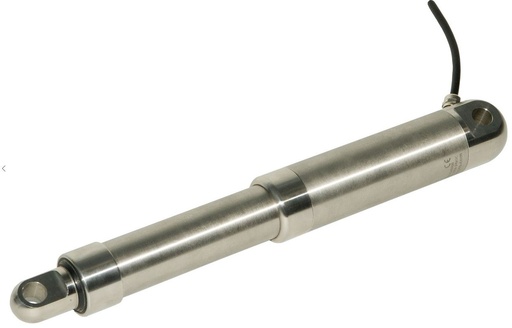

inline DC actuator iCON35
with integrated controller Single/Direction/Basic IO (SDB)
Black cable with Molex Minifit Jr. Connector
PA Brackets

inline DC actuator iCON35
with integrated controller Single/Direction/Basic IO (SDB)
Black cable with Molex Minifit Jr. Connector
PA Brackets

inline DC actuator iCON35
with integrated controller Single/Direction/Basic IO (SDB)
Black cable with Molex Minifit Jr. Connector
PA Brackets

inline DC actuator CON35
with Hall sensors
Black cable with Molex Minifit Jr. Connector
PA Brackets

inline DC actuator CON35
with Hall sensors
Black cable with Molex Minifit Jr. Connector
PA Brackets

inline DC actuator CON35
with Hall sensors
Black cable with Molex Minifit Jr. Connector
PA Brackets

Bansbach Easy lift Lockable Gas spring
B-type locking
Push out Force 45N
Short release version
dia 8/19 mm with stroke 220mm
W0 -connecting on piston rod side (MF 8 x 1x16)
A1 - Hinge eye on cylinder side (dia8.2mm) L1=20mm

Hydraulic lifting system
Easymotion L41AZ225K1--BQ-001/001
L = Linear unit
4 = Number of cylinders
1 = Type, fast (6 mm/rev)
A = Piston rod connection type
Z = Cylinder connection type
225 = Stroke in mm
K1 = Hand crank
B = Special
Q = Quick couplings
With 4x hydraulic hoses (length acc to drawing 001)

Flexible Connection Cable for Motor
AZ Series DC Power Supply Input type, Cable Type Motor

Flexible Connection Cables for Encoder
AZ Series AC Power Supply Input type, Cable Type Motor
AZ Series DC Power Supply Input type, Cable Type Motor (AZM46, AZM48, AZM66, AZM69)
AZX Serie

Flexible Connection Cable For Electromagnetic Brake
AZ Series DC Power Supply Input type with Electromagnetic Brake, Cable Type Motor (AZME24M, AZME26M, AZM46M, AZM48M, AZM66M, AZM69M)

Con25 actuator
Without hall sensors
Black cable with Molex Minifit Jr. connector
PA brackets

Easytouch Hydraulic release system for lockable gas spring
Angle connector at release cylinder
M8*1
Straight hose connector at the release head
Hose length 400mm

Bansbach Push button SET002
Aluminium bushing and button

Inline DC actuator iCon50
icon - Integrated controller - Multiple/Direction/Override (MDO)
Black shieled cable, Molex Minifit Connector
Std. steel, IP66
Alu brackets w/ clevis

ITS7000 HMI
ITS7000 series HMI, Professional type(Dual-core CPU),
7.0 inch LCD screen, 800×480 resolution, 24 bit true
colour, 24VDC power supply, 1x RS485, 1x RS232, 1x
USB type A, 1x USB type C, 1 x SD card slot, 1x Ethernet,
built-in RTC, new color.

Hybrid linear stepper motor, external linear type
BFWFNR-021-0383-BZ00 nut
Kerkote coating
screw length 255mm (5mm tenon incl)
Cable length (cm) : 30

VK CTJ145 90 GESM24/28
Motor type: flange 90 x 90 mm

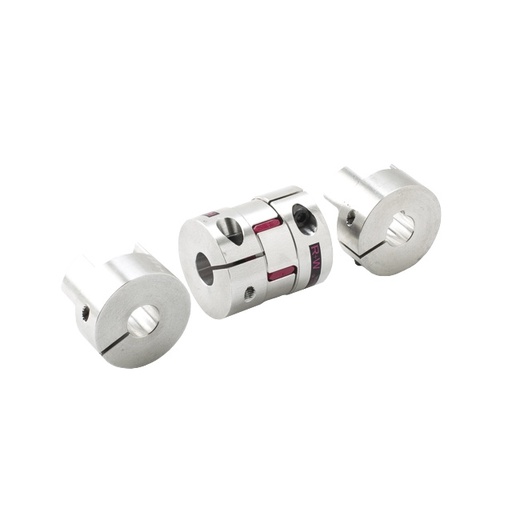

Coupling: GESM24/28
Mounting screws are included

Slot nut T 8L M6

Slide rail (single rail) DZ 4180 Slide length 1750mm zinc plated
