Motion control CPU
Motion axis : 32 (pulse control axis + EtherCAT axis)
Encoder axis : 4 channel encoder
Pulse output : 8 x 200KHz
Extension modules :16
Left side extension : 2 (Support communication/digital IO/analog IO/TF card/RTC)
Communication Port : 2 x Ethernet, 1 x EtherCAT, 1 x RS485
Support : 2 x RS232 /485 extension and 1 x CAN extension
Protocols : EtherCAT, Serial free protocol, Modbus RTU/ASC, CANlink, CANopen, Modbus TCP, EIP (under development）
Program storage 200k step
Data storage 2Mbyte（128KB non-volatile）
Instruction execution time 20K step / 1.6ms
Dimensions(WxHxD:mm) 53x100x80
Other interface : Type C，TF card(need TF card extension module)
CAM and ITP motion : Support CAM and interpolation motion
Built in IO : 8 input / 8 output
Programming language : LD、SFC、FB/FC(support encryption functionality), ST(under development)
Power input : DC24V

PLC
Motion axis : 5 (pulse control axis)
Encoder axis : 4 channel encoder axis
Pulse output : 8 x 200KHz
Extension modules : 16
Left side extension 2(Support communication/digital IO/analog IO/TF card/RTC)
Communication Port : 1 x RS232, 1 x RS485 ; Support 1 x RS232 /485 extension and 1 x CAN extension
Protocols Serial free protocol, Modbus RTU/ASC, CANlink, CANopen
Program storage 128K step
Data storage 1Mbyte（128KB non-volatile）
Instruction execution time 20K step / 2ms
Dimensions(WxHxD:mm) 40x100x83
Other interface Type C，TF card(need TF card extension module)
CAM and ITP motion Support CAM and interpolation motion
Built in IO 8 input / 8 output
Programming language LD、SFC、FB/FC(support encryption functionality), ST(under development)
Power input DC24V

Easy PLC with
Motion axis :5 (pulse control axis)
Encoder axis : 4 channel encoder axis
Pulse output : 8 x 200KHz
Extension modules : 16
Left side extension : 2(Support communication/digital IO/analog IO/TF card/RTC)
Communication Port : 2 x Ethernet, 1 x RS485, Support 2 x RS232 /485 extension and 1 x CAN extension
Protocols : Serial free protocol, Modbus RTU/ASC, CANlink, CANopen, Modbus TCP, EIP(under development）
Program storage 128K step
Data storage 1Mbyte（128KB non-volatile）
Instruction execution time 20K step / 2ms
Dimensions(WxHxD:mm) 53x100x80
Other interface Type C，TF card(need TF card extension module)
CAM and ITP motion Support CAM and interpolation motion
Built in IO 8 input / 8 output
Programming language LD、SFC、FB/FC(support encryption functionality), ST(under development)
Power input DC24V

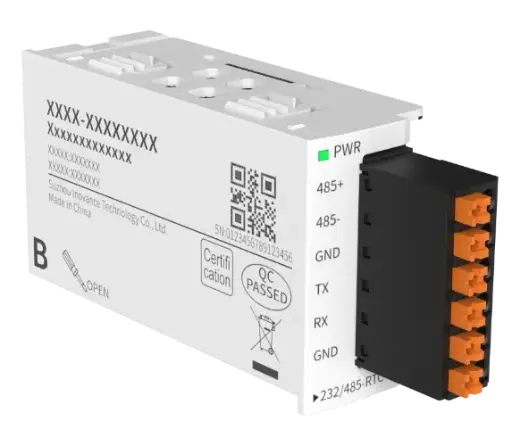

GE20 Extension Card
RS232 or RS485 communication card

AM600 advanced motion controller
16 x high-speed inputs, 8 x high-speed outputs (source type, requires connectors, see below FCN-40),
1 x RS485, 1 x CAN port, 1 x Ethernet port, 1 x USB, supports up to 32 axes control

GL20 expansion module
4 x analog inputs module (resolution 16 bits, sampling time 250 µs)

GL20 expansion module
4 x analog outputs module (resolution 16 bits, sampling time 250 µs)

Intel Core 2, Duo i5 processor, 2.4 GHz
DDR 4 GB, SSD 128 GB
dot matrix digital display module 128 x 64 dots, 4 keys, EtherCAT bus master station, LAN x4, USB2.0 x2, USB3.0 x2, RS485 x1, RS232 x1, 3 DIs, 2 DOs

GE20 Extension Card
2 x analog inputs (resolution 12 bits, sampling time 6 ms)
1 x analog current output (resolution 12 bits, sampling time 1 ms)

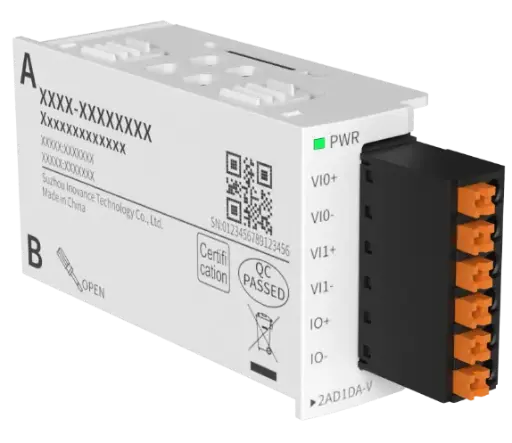

GE20 Extension Card
2 x analog inputs (resolution 12 bits, sampling time 6 ms)
1 x analog voltage output (resolution 12 bits, sampling time 1 ms)

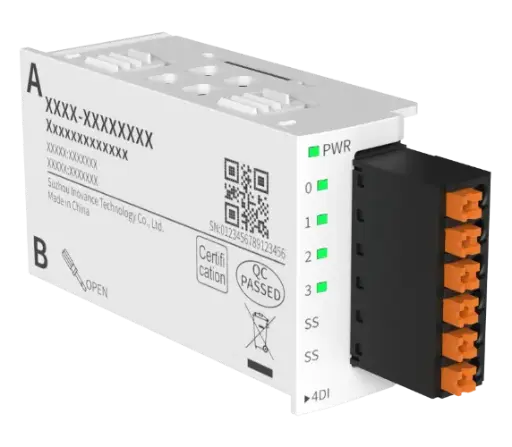

CE20 Extension Card
4 x source (PNP)/sink (NPN) digital inputs module.

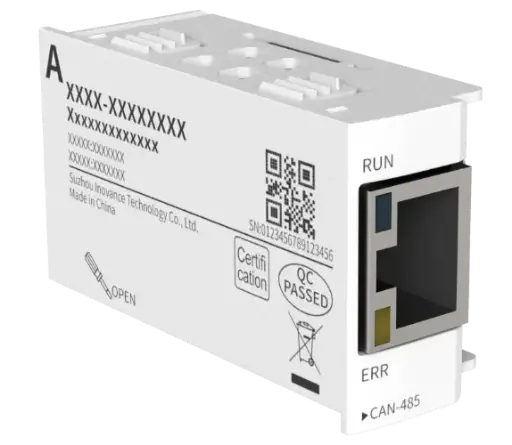

GE20 Extension Card
CAN Communication module

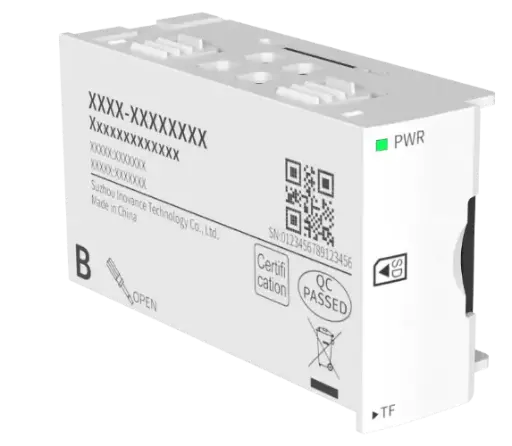

GE20 Extension Card
Memory expansion module

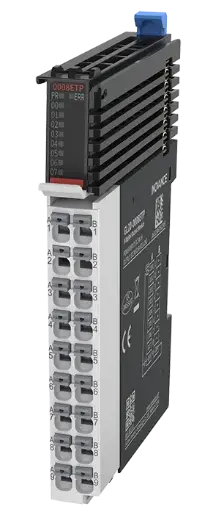

GL20 Extension Module
8 x source (PNP) transistor outputs module (Response time 100 μs)

GL20 Extension Module
16 x source (PNP) transistor outputs module

GL20 expansion module
16 x source (PNP)/sink (NPN) digital inputs module

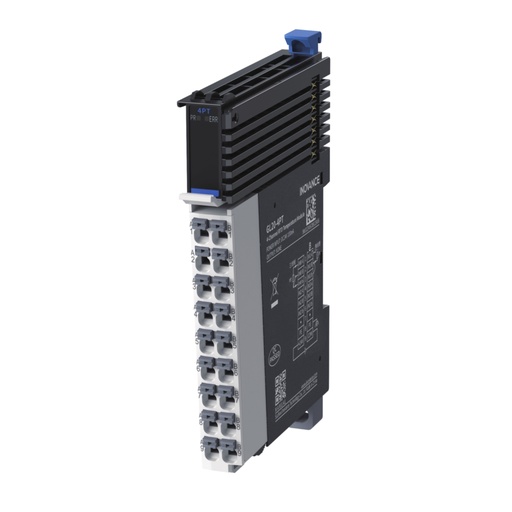

GL20 expansion module
4 x channel thermal resistance inputs temperature detection module (Pt 100, Pt 500, Pt 1000, Cu 100, KTY 84, NTC 5K, NTC 10K)

Easy PLC with :
Motion axis : 16 (pulse control axis + EtherCAT axis)
Encoder axis : 4 channel encoder axis
Pulse output : 8 x 200KHz
Extension modules : 16
Left side extension 2(Support communication/digital IO/analog IO/TF card/RTC)
Communication Port 1 x EtherCAT, 1 x RS485, Support 2 x RS232 /485 extension and 1 x CAN extension
Protocols : EtherCAT, Serial free protocol, Modbus RTU/ASC, CANlink, CANopen
Program storage 200K step
Data storage : 2Mbyte（128KB non-volatile）
Instruction execution time 20K step / 2ms
Dimensions(WxHxD:mm) 53x100x80
Other interface Type C，TF card(need TF card extension module) CAM and ITP motion Support CAM and interpolation motion
Built in IO : 8 input / 8 output
Programming language LD、SFC、FB/FC(support encryption functionality), ST(under development)
Power input DC24V

PLC with
Motion axis : 4 (pulse control axis)
Encoder axis : 4 channel encoder axis
Pulse output : 4 x 200KHz
Extension modules : 8
Communication Port : 1 x RS232 + 1 x RS485
Protocols : Serial free protocol, Modbus RTU/ASC
Program storage : 128K step
Data storage : 1Mbyte（128KB non-volatile）
Instruction execution time : 20K step / 2ms
Dimensions(WxHxD:mm) : 24x100x83
Other interface Type-C
Built in IO : 8 input / 8 output
Programming language LD、SFC、FB/FC(support encryption functionality), ST(under development)
Power input DC24V

GL20 expansion module
8 x source (PNP)/sink (NPN) digital inputs module.
