WGS Series
Description

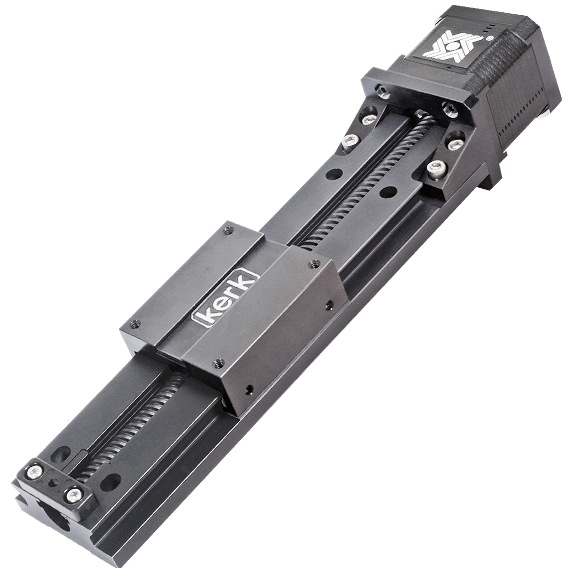

Linear Rail with compact profile and improved torsional stiffness and stability. The integral mounting base can provide support over the entire length that can extend up to 8 feet (2.4 meters).
The WGS utilizes sliding plane bearings on a low-profile aluminum guide rail that keeps the motion smooth throughout the travel distance.
The length and speed of the WGS is not limited by critical screw speed, allowing high RPM, linear speed and long stroke lengths.
- Many optional leads available in inch or metric
- Available in custom lengths > 2.4m
- All moving surfaces include Kerkite® polymers running on Kerkote® TFE coating
- Slides include a wear-compensating, anti-backlash driven carriage
Quelques produits dans cette catégorie
| ProduITs | ||
|---|---|---|
|
WGS06K-M0500-A38
HAYDONKERK Wide Guide Screw |
|
|
RGW06KR-A00-0100-06
HAYDONKERK Wide Guide Screw |
|
| Produit | Description | IMAGE |
|---|---|---|
|
WGS06K-M0500-A38
HAYDONKERK |
Wide Guide Screw
|
|
|
RGW06KR-A00-0100-06
HAYDONKERK |
Wide Guide Screw
|
|
