Stainless Steel Worm gearmotor
Size: N63
Motor power: 0.55kW
Mounting: UNI (Standard)
Position: B8
Output rpm (n2 [min-1]): 58.33
Output torque (M2M [Nm]): 68Nm
Service factor (fs): 2.1
Output shaft: Single output shaft
Terminal Box Position: A

- Food safe lubricant mobil oil
- Twin viton seals-shield IP69K
- Life lubricated bearings on output

Stainless Steel Worm gearmotor
Size: N50
Motor power: 0.25kW
Mounting: UNI (Standard)
Position: V5
Output rpm (n2 [min-1]): 38.89
Output torque (M2M [Nm]): 42Nm
Service factor (fs): 1.7
Output shaft: Hollow output shaft
Terminal Box Position: A

- Food safe lubricant mobil oil
- Twin viton seals-shield IP69K
- Life lubricated bearings on output

Bansbach Easylift Gas Spring
Standard version
Slow increased end-damping
Hinge eyes on both sides Ø12.2mm
F1 Force: 2500N
EL1: 712 mm

Controller Ai Technology
Two zone controller with Piercing Technology
Supply voltage: 24 V DC
Protection rating: IP54
Rated current: ECO: 5.0 A | BOOST: 7.0 A with two actuators
Starting current: ECO: 6.0 A | BOOST: 10.0 A with two actuators
Connection type: M8 – 4-pin connector
Temperature range: 0°C to +40°C
Ambient humidity: 10%–90% (non-condensing)
Certifications: UL, CE, UKCA, RoHS, REACH

Bansbach Easylift Gas spring
Stainless steel version 316 - Heat Setup
Push-out Force F1: 800N
Build-in length EL1: 270mm
With Hinge eyes Ø8.2mm

Concens iCON35 actuator
Stroke: 150 mm
Gear ratio: 71:1 (Maximum load 2200 N – Nominal speed 3 mm/s)
24 VDC
Cable length: 5 m shielded cable – with connector
Integrated controller: MDO – Multi-actuator
Standard steel – IP66
Black tube and black piston ring

Double-strand sprocket ZRF with hub 10 B-2 15 teeth material steel bore 25H7 keyway DIN 6885/1 2 set screw threads teeth induction hardened

Power supply for con/icon actuators
Output power : 350 W
Up to 14.6 A / 24 VDC
Selectable Main Power Input

Bansbach Easylift Gas spring
CS Type

Prepared as spare part for:
MTJ/MRJ 40, absolute stroke: 2800mm
Length: 6025mm

Bansbach Easylift Gas spring
with dynamic damping

Concens iCON35 actuator
Stroke: 600 mm
Gear ratio: 51:1 (Maximum load 1000 N – Nominal speed 4 mm/s)
24 VDC
Cable length: 2 m shielded cable – without connector
Integrated controller: SDB – Basic IO
Standard steel – IP68
Black tube and black H.E. piston ring
Warning: Maximum load limited due to stroke > 400 mm

Concens iCON50 actuator
Stroke: 750 mm
Gear ratio: 24:1 (Maximum load 2000 N – Nominal speed 12 mm/s)
24 VDC
Cable length: 2 m shielded cable – without connector
Integrated controller: SDB – Basic IO
Standard steel – IP68
Black tube and black H.E. piston ring
Warning: Maximum load limited due to stroke > 400 mm

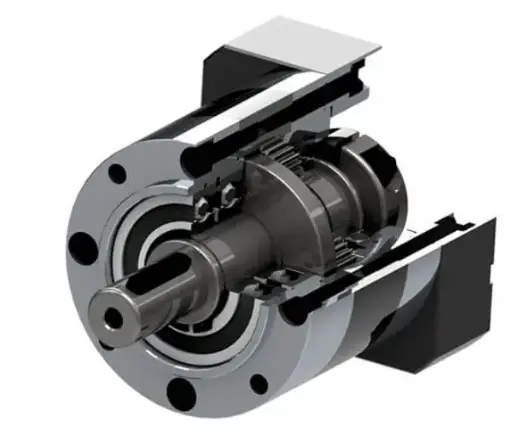

Planetary Gearbox

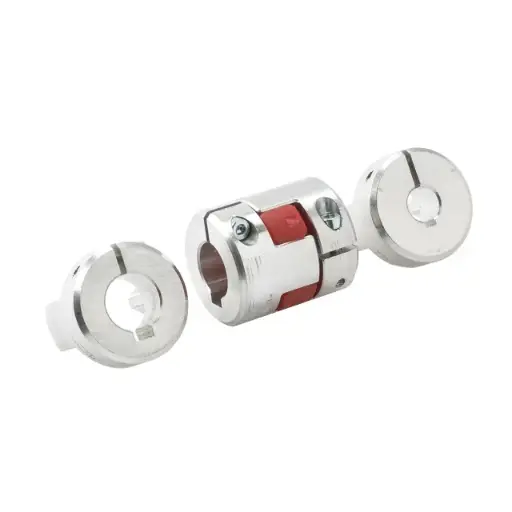

Coupling GESM24/28 F16C F20C
Elastomer coupling with clamping hubs
Max. transmissible torque: 120Nm
Screw tightening torque: 11Nm
Elastomer hardness: 98 Sh A
Assembly lenght tolerance after mounting: +/-1,4mm
Maximum radial misalignment: 0,1mm
Maximum angular misalignment: 0,9°
