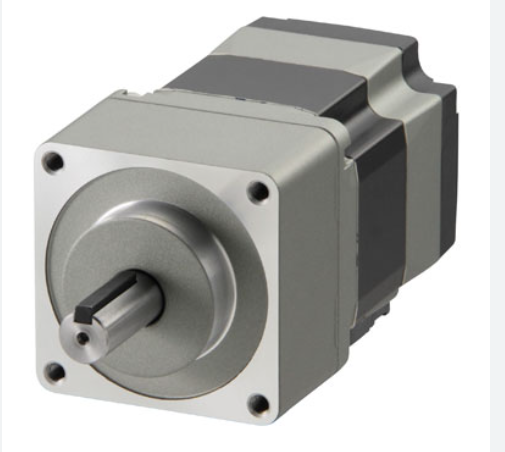

AZ Series

Description

De AZ Series van Oriental motor zijn zogenaamde Servosteppers. Deze motoren hebben een hoge effictiëntie en lage vibratie.

  • Flensmaat van 20 mm tot 85 mm
  • Mechanische absolute encoder
  • AC of DC input types
  • Stappenmotoren met opgebouwde reductiekast voor betere inertie-matching
  • Optioneel met elektromagnetische rem
  • AZD-C driver nodig voor de aansturing van AC-motoren
  • AZD-K driver nodig voor de aansturing van DC-motoren
Het AC type is als volgt samen te stellen:​

Het DC type is als volgt samen te stellen:​
