AZ Series

Description

De AZ Series van Oriental motor zijn zogenaamde Servosteppers. Deze motoren hebben een hoge effictiëntie en lage vibratie.

Flensmaat van 20 mm tot 85 mm
Mechanische absolute encoder
AC of DC input types
Stappenmotoren met opgebouwde reductiekast voor betere inertie-matching
Optioneel met elektromagnetische rem
AZD-C driver nodig voor de aansturing van AC-motoren
AZD-K driver nodig voor de aansturing van DC-motoren

Het AC type is als volgt samen te stellen:

Het DC type is als volgt samen te stellen:

Quelques produits de cette catégorie

Produit	Description	IMAGE
AZM66A1KH Orientalmotor	AZ Series Key Shaft Stepper Motor with Absolute Mechanical Encoder Connector type Dimension (mm): 60 x 60 Encoder: Absolute
CCM020Z1EFF Orientalmotor	AZ mini driver connection cables Cable Output in shaft direction Connector type (suitable for Mini driver or Multi-axis driver slim version) Cable Length (m): 2

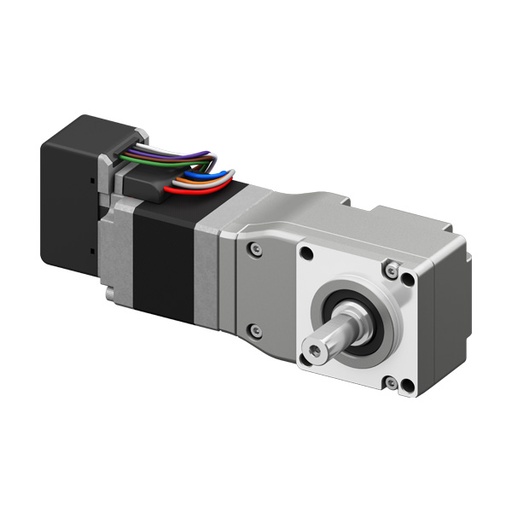

AZM24AK-FC7.2UA Orientalmotor	Steppingmotor of the AZ-Series; + with right angle gearhead Gear: ratio 7.2 Dimension (mm): 35 x 35 Holding Torque (Nm): 0.3 Encoder: Absolute

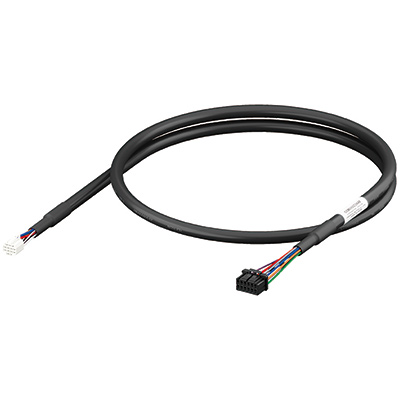

CCM005Z2ABR Orientalmotor	Cable set for AZ-series Connects AZM46, AZM48, AZM66, AZM69 motors to AZ-mini driver or AZ Multi-axis Slim type driver Flexible cable version Cable length: 0.5 m Cable Length (m): 0.5
AZM66AKH-PS10 Orientalmotor	Steppingmotor of the AZ-Series; Gear: ratio 10 Dimension (mm): 60 x 60 Electromagnetic Brake: No
CCM010Z1CFF Orientalmotor	Connection Cable Set Connector type for use with AZ Series without EM-brake DC input - type Cable outlet in shaft direction Cable Length (m): 1
CCM100Z2ACR Orientalmotor	Cable set for AZ-series Connects AZM46, AZM48, AZM66, AZM69 motors to AZ-mini driver or AZ Multi-axis Slim type driver Flexible cable version Cable length: 10 m
CCM100Z2ACF Orientalmotor	Cable set for AZ-series Connects AZM46, AZM48, AZM66, AZM69 motors to AZ-mini driver or AZ Multi-axis Slim type driver Standard cable version Cable length: 10 m
CCM100Z2ABR Orientalmotor	Cable set for AZ-series Connects AZM46, AZM48, AZM66, AZM69 motors to AZ-mini driver or AZ Multi-axis Slim type driver Flexible cable version Cable length: 10 m
CCM100Z2ABF Orientalmotor	Cable set for AZ-series Connects AZM46, AZM48, AZM66, AZM69 motors to AZ-mini driver or AZ Multi-axis Slim type driver Standard cable version Cable length: 10 m
CCM100Z2AAR Orientalmotor	Cable set for AZ-mini Connects AZM14, AZM15, AZM24, AZM26 motors to AZ mini Driver (AZD-KR2D & AZD-KRED) Flexible cable version Cable length: 10 m
CCM100Z2AAF Orientalmotor	Cable set for AZ-mini Connects AZM14, AZM15, AZM24, AZM26 motors to AZ mini Driver (AZD-KR2D & AZD-KRED) standard version Cable Length (m): 10
CCM100Z1EVF Orientalmotor	Connection Cable AZ Series mini-Driver Cable Output in vertical direction Connector type (suitable for Mini driver or Multi-axis driver slim version) Cable Length (m): 10
CCM100Z1EFF Orientalmotor	AZ mini driver connection cables Cable Output in shaft direction Connector type (suitable for Mini driver or Multi-axis driver slim version) Cable Length (m): 10
CCM100Z1EBF Orientalmotor	Connection Cable AZ Series mini-Driver Cable Output in opposite direction of output shaft Connector type (suitable for Mini driver or Multi-axis driver slim version) Cable Length (m): 10
CCM100Z1DFF Orientalmotor	Connection Cable Set Connector type for use with AZ Series with EM-brake DC input - type Cable outlet in shaft direction Cable Length (m): 10
CCM100Z1DBF Orientalmotor	Connection Cable Set Connector type for use with AZ Series with EM-brake DC input - type Cable outlet opposite to shaft direction Cable Length (m): 10

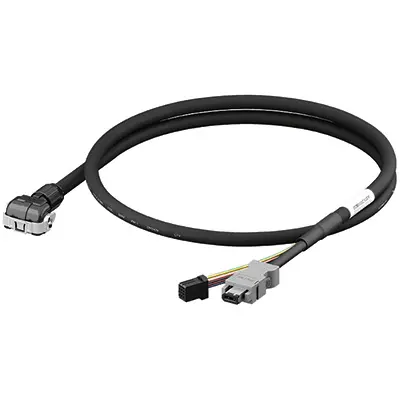

CCM100Z1CVF Orientalmotor	Connection Cable Set Connector type for use with AZ Series without EM-brake DC input - type Vertical Cable outlet Cable Length (m): 10
CCM100Z1CFF Orientalmotor	Connection Cable Set Connector type for use with AZ Series without EM-brake DC input - type Cable outlet in shaft direction Cable Length (m): 10
CCM100Z1CBF Orientalmotor	Connection Cable Set Connector type for use with AZ Series without EM-brake DC input - type Cable outlet opposite to shaft direction
