MTJ Series
Description
Linear unit with a single integrated zero clearance rail guiding
systems. The carriage, with central lubrication port, allows easy
central re-lubrication ball rail guide and provides the possibility to
attach additional additional accessories on the side.
Sizes: 40, 65, 80, 110
Drive type: Toothed belt
Repeatability: Up to ± 0,08 mm
Travel speed: Up to 6 m/s
Max. Stroke: Up to 5770 mm
Max. Axial Load: Up to 1730 N
Quelques produits de cette catégorie
| Produit | Description | IMAGE |
|---|---|---|
|

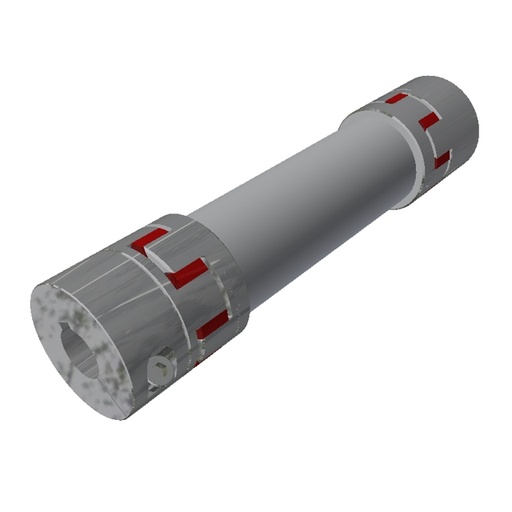

OSL 14 MTJ65 LM 1900 F16C F16C
Unimotion |
Synchronization shaft: OSL |
|
|

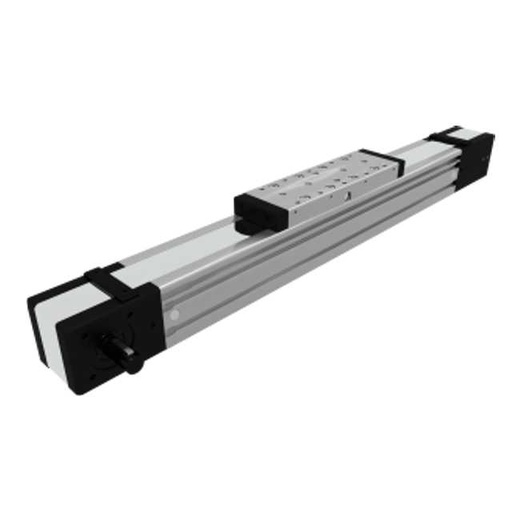

MTJ 65 1600 S 1L 0
Unimotion |
Linear unit MTJ 65 |
|
|
MTJZ 110 1200 0 0 1
Unimotion |
Linear guide with tooth belt |
|
|
MTJZ 110 2000 0 0 1
Unimotion |
Linear guide with tooth belt |
|
| Products | ||
|---|---|---|
|
|
OSL 14 MTJ65 LM 1900 F16C F16C
Unimotion Synchronization shaft: OSL |
|
|
|
MTJ 65 1600 S 1L 0
Unimotion Linear unit MTJ 65 |
|
|
|
MTJZ 110 1200 0 0 1
Unimotion Linear guide with tooth belt |
|
|
|
MTJZ 110 2000 0 0 1
Unimotion Linear guide with tooth belt |
|
