CON50 Series

Omschrijving

ACTIONNEUR ÉLECTRIQUE EN LIGNE COMPACT ET PUISSANT

Cet actionneur offre la solution parfaite lorsque le plus petit CON35 est court en termes de force de poussée ou de vitesse.

  • Vitesse : 4 à 70m/s
  • Courant: 12 ou 24VDC
  • Capacité de charge: 500 à 4500N
  • Longueur de course: 50 à750mm

Personnalisation:

  • • Autres longueurs de course et dimensions intégrées disponibles sur demande
  • • Supports conçus pour s’adapter à votre application
  • 'Harsh Environment' = version pour les Environnements difficiles » (testé selon IP68 et IP69)
  • • Avec ou sans capteurs à effet Hall pour la version icône de positionnement/synchronisation   Vers la version 'icon"
  • • Disponible dans n’importe quelle couleur RAL et en acier inoxydable
  • • Version homologuée pour un usage médical (24 VDC)


Enkele producten uit deze categorie

ProduitOmschrijving
Afbeelding

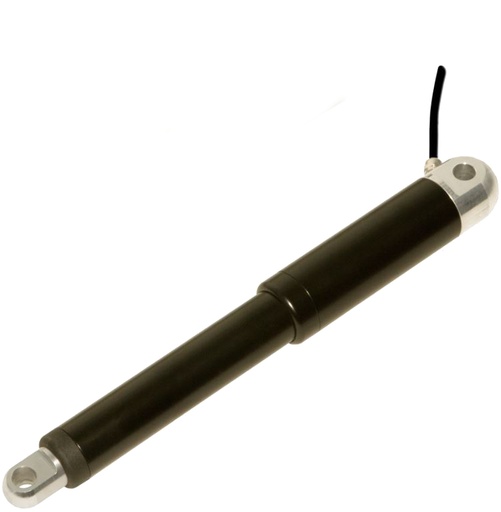

350300-143220-930200

Con35 in-line actuator
without Hall sensors
Standard steel version with Alu brackets with clevis

Cable Length (m): 2 Stroke (mm): 300 Supply Voltage (V): 24 VDC Linear Speed (mm/s): 16 Linear Force (N): 400 Protection class: IP68
50-230-01-0000-21-01

Concens

SET Mounting bracket 1 front and 1 back incl. pin & lock washer for CON50
stainless steel version
500300-14335x-060001

1. Con50
2. Stroke Length: 300 mm
3. Low Noise: Standard
4. Gear Ratio: 14/1 ; Force: 1750N ; nom.Speed: 20mm/s
5. Voltage & Certifications: 24VDC
6. Pitch & Nut: 3mm
7. Cable Length: 5m
8. Cable Type & Connector: Shielded Black cable, no connector
9. Hall Sensors/Integrated Controller (icon): Without hall sensors
10. Steel & IP Class: Std. steel, IP66
11. Brackets: Aluminum with spherical bearings
12. Tube Color: Black, RAL9005, shine 25
13. Piston Ring Color: Black, standard

500050-043350-000000

CON50 in-line actuator
Without Hall Sensors
black cable without connector.
Std Steel version IP66 with PA brackets

Cable Length (m): 5 Stroke (mm): 50 Supply Voltage (V): 24 VDC Linear Speed (mm/s): 70 Linear Force (N): 500 Protection class: IP66
500300-493387+940200

CON50 in-line actuator
with Hall Sensors for synchronisation
black shielded cable with Molex Minifit connector.
Std Steel, Harsh environment version IP68
with Stainless steel brackets
Build-in length: 584mm (retracted) - 884mm (extracted)

Stroke (mm): 300 Supply Voltage (V): 24 VDC Linear Speed (mm/s): 6 Linear Force (N): 4500 Protection class: IP68
500150-143330+020000

Concens

Inline DC actuator Con50
Black cable, no connector
With hall sensors
Alu brackets


Gear: ratio 14 Cable Length (m): 3 Stroke (mm): 150 Supply Voltage (V): 24 VDC Protection class: IP66
500100-243392-020000

Concens

1. Con50
2. Stroke Length: 100mm
3. Low Noise: Standard
4. Gear Ratio: 24/1 - 3100N - 12mm/s
5. Voltage & Certifications: 24VDC
6. Pitch & Nut: 3mm
7. Cable Length: 9m
8. Cable Type & Connector: Black cable, Molex Minifit Connector
9. Without hall sensors
10. Steel & IP Class: Std. steel, IP66
11. Brackets: Aluminum
12. Tube Color: Black, RAL9005, shine 25
13. Piston Ring Color: Black, standard

Cable Length (m): 9 Stroke (mm): 100
500150-143356+930200

Con 50 linear actuator
With Hall sensors
with molex minifit connector
alu brackets with clevis
Black tube and piston ring
RAL9005, shine 25
Harsh Environment IP68 protection

Cable Length (m): 1 Stroke (mm): 150 Supply Voltage (V): 24 VDC Linear Speed (mm/s): 20 Linear Force (N): 1750 Protection class: IP68
500200-243356+459900

CON50 In-line actuator
Stainless steel version AISI316
With Hall sensors
with screened cable
Brackets: Stainless steel with clevis
Harsh environment version IP68

Cable Length (m): 5 Stroke (mm): 200 Supply Voltage (V): 24 VDC Linear Speed (mm/s): 12 Linear Force (N): 3100 Protection class: IP68
500500+493377+020000

CON50 in-line actuator
with Hall Sensors
black shielded cable with Molex connector.
Std Steel version IP66 with alu brackets

Cable Length (m): 7 Stroke (mm): 500 Supply Voltage (V): 24 VDC Linear Speed (mm/s): 6 Linear Force (N): 4500 Protection class: IP66
500100-143332-030000

Concens in-line actuator CON50
without Hall sensors
Alu brackets with clevis
with molex connector

Cable Length (m): 3 Stroke (mm): 100 Supply Voltage (V): 24 VDC Linear Speed (mm/s): 20 Linear Force (N): 1750 Protection class: IP66
500400-2433x2-020000

Concens

Inline DC actuator Con50
Black cable, Molex Minifit Connector
Without hall sensors
Std. steel, IP66
Alu Brackets

Gear: ratio 24 Cable Length (m): 10 Stroke (mm): 400 Supply Voltage (V): 24 VDC Linear Speed (mm/s): 12 Linear Force (N): 3100

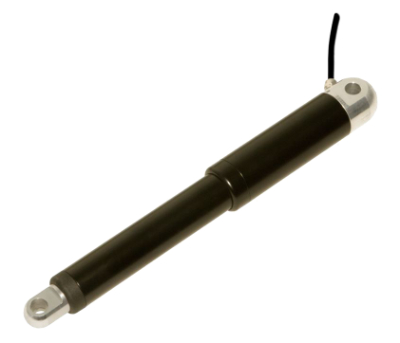

500400-143332+030000

Concens

Inline DC Actuator CON50
Black cable, Molex Minifit Connector
With hall sensors
Std. steel, IP66
Alu brackets w/clevis

Gear: ratio 14 Cable Length (m): 3 Stroke (mm): 400 Supply Voltage (V): 24 VDC
500050-243312-020000

Concens

Inline actuator with DC Motor
Ratio: 24
Cable with Molex Minifit connector
Without Hall sensors
Std steel IP66
Alu brackets

Dimension (mm): Ø 50 Cable Length (m): 1 Stroke (mm): 50 Supply Voltage (V): 24 VDC Linear Speed (mm/s): 12 Linear Force (N): 3100
500400-493332-020000

Concens

In-line linear actuator with DC motor
Without hall sensors
Alu brackets

Stroke (mm): 400 Supply Voltage (V): 24 VDC Gear: ratio 49 Linear Speed (mm/s): 6 Linear Force (N): 4500 Cable Length (m): 3 Protection class: IP66
500250-043352+020000

Concens

Inline DC actuator Con50
with Hall sensors
with Molex Minifit Jr. connector
std.steel version IP66
with Alu brackets
Black tube and piston ring

Stroke (mm): 250 Gear: ratio 4 Supply Voltage (V): 24 VDC Cable Length (m): 5 Linear Force (N): 500 Linear Speed (mm/s): 70

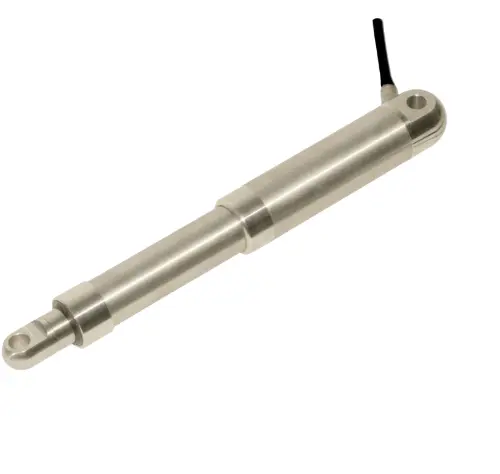

500200-493350-459900

CON50 in-line actuator
Stainless steel version AISI316
Without Hall Sensor
std cable, no connector
Brackets: Stianless steel with clevis
Harsh Environment version

Stroke (mm): 200 Linear Speed (mm/s): 6 Linear Force (N): 4500 Supply Voltage (V): 24 VDC Cable Length (m): 5 Protection class: IP68
