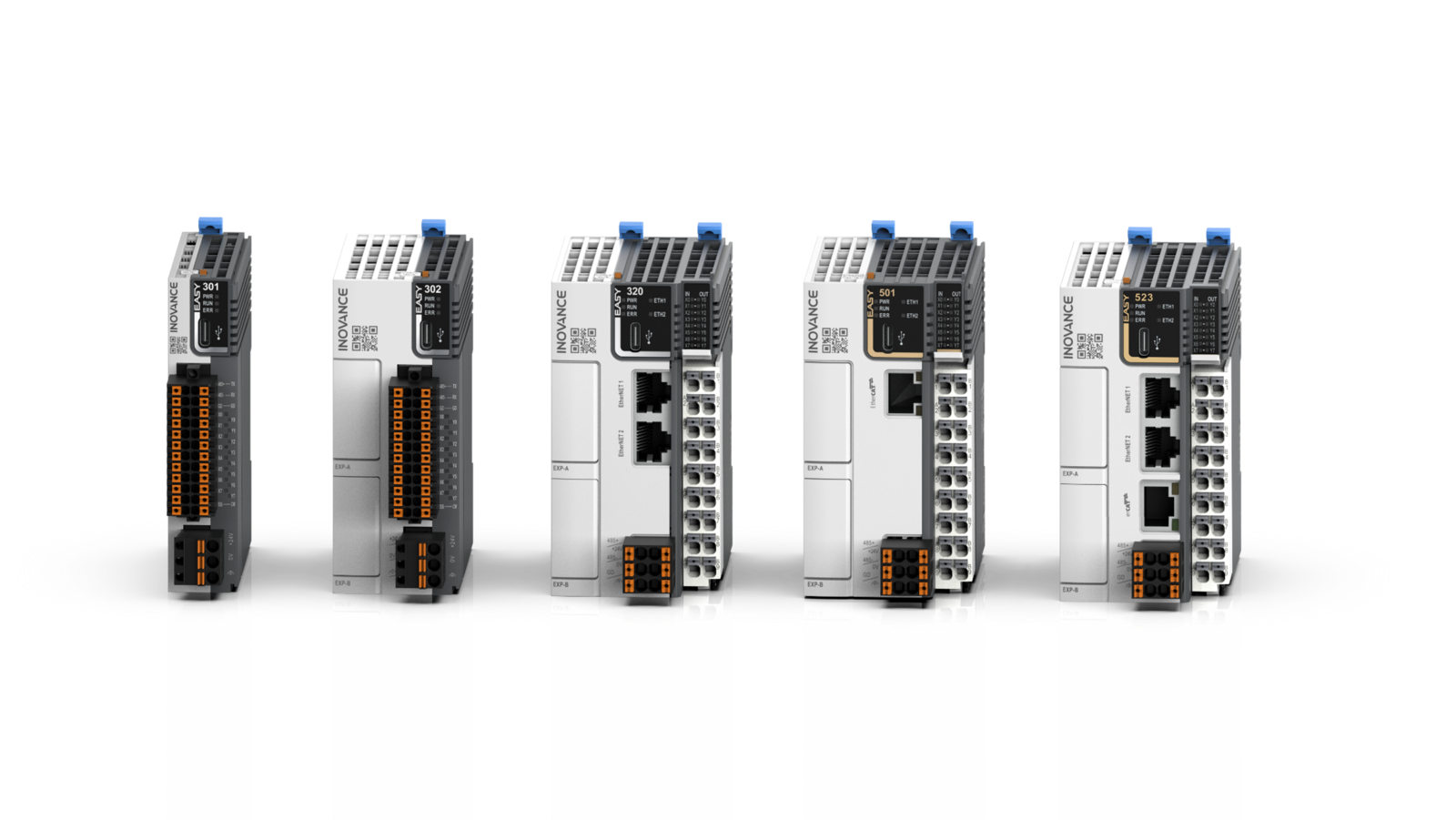

Easy Serie

Description

De Easy serie van Inovance zijn compacte PLC's voor kleinere toepassingen.
De software is niet Codesys gebasseerd, hiervoor bestaat een apart programma namelijk Autoshop.


Volgende communicatieprotocollen zijn beschikbaar voor de Easy serie:

  • CANOpen
  • EtherCAT
  • Ethernet/IP


Quelques produits de cette catégorie

ProduitOmschrijving
Afbeelding

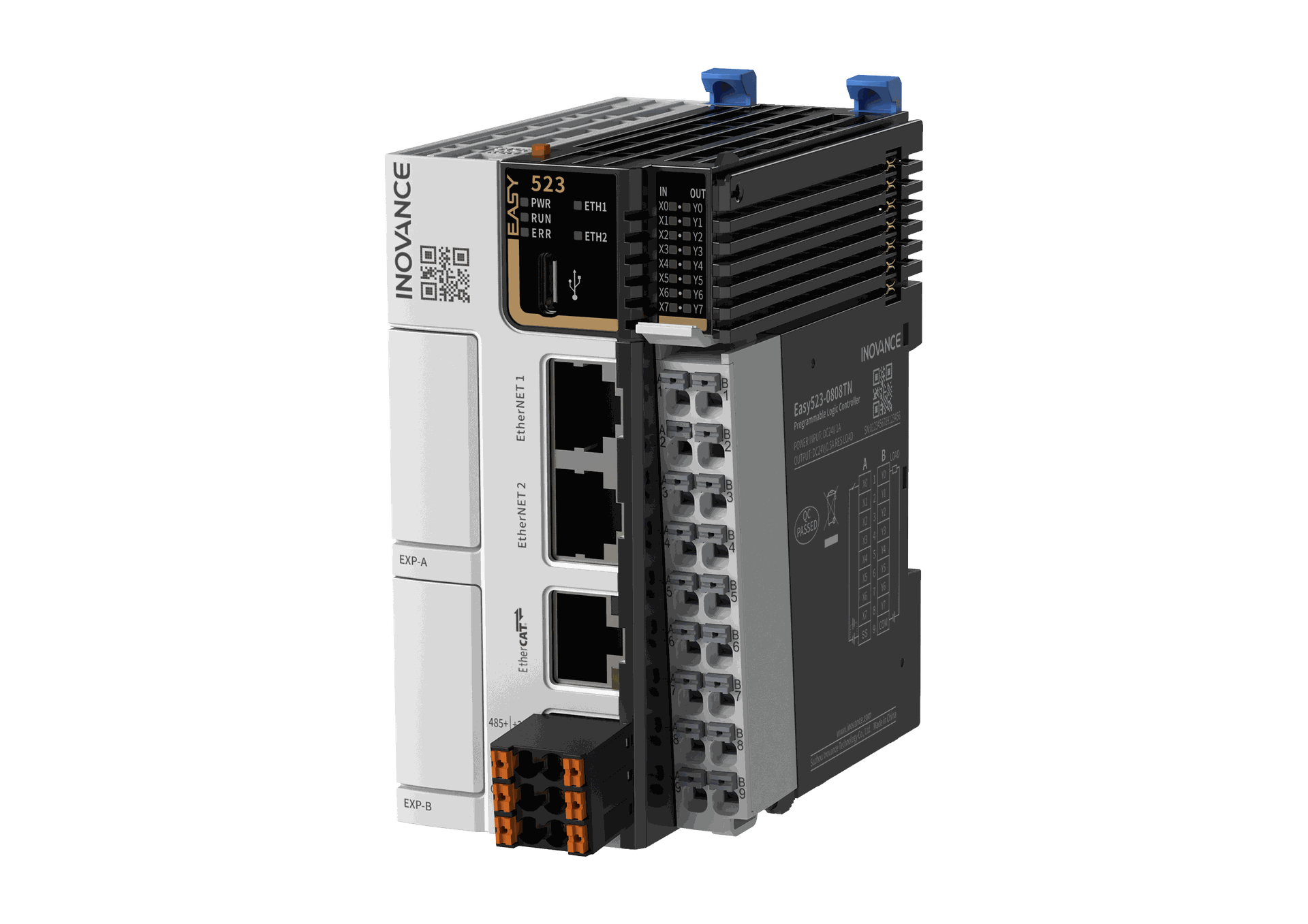

EASY523-0808TN

Inovance

Motion control CPU
Motion axis : 32 (pulse control axis + EtherCAT axis)
Encoder axis : 4 channel encoder
Pulse output : 8 x 200KHz
Extension modules :16
Left side extension : 2 (Support communication/digital IO/analog IO/TF card/RTC)
Communication Port : 2 x Ethernet, 1 x EtherCAT, 1 x RS485
Support : 2 x RS232 /485 extension and 1 x CAN extension
Protocols : EtherCAT, Serial free protocol, Modbus RTU/ASC, CANlink, CANopen, Modbus TCP, EIP (under development）
Program storage 200k step
Data storage 2Mbyte（128KB non-volatile）
Instruction execution time 20K step / 1.6ms
Dimensions(WxHxD:mm) 53x100x80
Other interface : Type C，TF card(need TF card extension module)
CAM and ITP motion : Support CAM and interpolation motion
Built in IO : 8 input / 8 output
Programming language : LD、SFC、FB/FC(support encryption functionality), ST(under development)
Power input : DC24V
Easy302-0808TN

Inovance

PLC
Motion axis : 5 (pulse control axis)
Encoder axis : 4 channel encoder axis
Pulse output : 8 x 200KHz
Extension modules : 16
Left side extension 2(Support communication/digital IO/analog IO/TF card/RTC)
Communication Port : 1 x RS232, 1 x RS485 ; Support 1 x RS232 /485 extension and 1 x CAN extension
Protocols Serial free protocol, Modbus RTU/ASC, CANlink, CANopen
Program storage 128K step
Data storage 1Mbyte（128KB non-volatile）
Instruction execution time 20K step / 2ms
Dimensions(WxHxD:mm) 40x100x83
Other interface Type C，TF card(need TF card extension module)
CAM and ITP motion Support CAM and interpolation motion
Built in IO 8 input / 8 output
Programming language LD、SFC、FB/FC(support encryption functionality), ST(under development)
Power input DC24V
Easy320-0808TN

Inovance

Easy PLC with
Motion axis :5 (pulse control axis)
Encoder axis : 4 channel encoder axis
Pulse output : 8 x 200KHz
Extension modules : 16
Left side extension : 2(Support communication/digital IO/analog IO/TF card/RTC)
Communication Port : 2 x Ethernet, 1 x RS485, Support 2 x RS232 /485 extension and 1 x CAN extension
Protocols : Serial free protocol, Modbus RTU/ASC, CANlink, CANopen, Modbus TCP, EIP(under development）
Program storage 128K step
Data storage 1Mbyte（128KB non-volatile）
Instruction execution time 20K step / 2ms
Dimensions(WxHxD:mm) 53x100x80
Other interface Type C，TF card(need TF card extension module)
CAM and ITP motion Support CAM and interpolation motion
Built in IO 8 input / 8 output
Programming language LD、SFC、FB/FC(support encryption functionality), ST(under development)
Power input DC24V
Easy502-0808TN

Inovance

Easy PLC with :
Motion axis : 16 (pulse control axis + EtherCAT axis)
Encoder axis : 4 channel encoder axis
Pulse output : 8 x 200KHz
Extension modules : 16
Left side extension 2(Support communication/digital IO/analog IO/TF card/RTC)
Communication Port 1 x EtherCAT, 1 x RS485, Support 2 x RS232 /485 extension and 1 x CAN extension
Protocols : EtherCAT, Serial free protocol, Modbus RTU/ASC, CANlink, CANopen
Program storage 200K step
Data storage : 2Mbyte（128KB non-volatile）
Instruction execution time 20K step / 2ms
Dimensions(WxHxD:mm) 53x100x80
Other interface Type C，TF card(need TF card extension module) CAM and ITP motion Support CAM and interpolation motion
Built in IO : 8 input / 8 output
Programming language LD、SFC、FB/FC(support encryption functionality), ST(under development)
Power input DC24V
Easy301-0808TN

Inovance

PLC with
Motion axis : 4 (pulse control axis)
Encoder axis : 4 channel encoder axis
Pulse output : 4 x 200KHz
Extension modules : 8
Communication Port : 1 x RS232 + 1 x RS485
Protocols : Serial free protocol, Modbus RTU/ASC
Program storage : 128K step
Data storage : 1Mbyte（128KB non-volatile）
Instruction execution time : 20K step / 2ms
Dimensions(WxHxD:mm) : 24x100x83
Other interface Type-C
Built in IO : 8 input / 8 output
Programming language LD、SFC、FB/FC(support encryption functionality), ST(under development)
Power input DC24V
Easy523-0808TP-INT

Motion control CPU
Motion axis : 12 (4 pulse control axis + 8 EtherCAT axis)
Encoder axis : 4 channel encoder
Pulse output : 8 x 200KHz
Extension modules :16
Left side extension : 2 (Support communication/digital IO/analog IO/TF card/RTC)
Communication Port : 2 x Ethernet, 1 x EtherCAT, 1 x RS485
Support : 2 x RS232 /485 extension and 1 x CAN extension
Protocols : EtherCAT, Serial free protocol, Modbus RTU/ASC, CANlink, CANopen, Modbus TCP, EIP
Program storage 200k step
Data storage 2Mbyte（128KB non-volatile）
Instruction execution time 20K step / 1.6ms
Dimensions(WxHxD:mm) 53x100x80
Other interface : Type C，TF card(need TF card extension module)
CAM and ITP motion : Support CAM and interpolation motion
Built in IO : 8 input / 8 output
Programming language : LD, SFC, ST, FB/FC (supports encryption functionality)
Power input : DC24V
