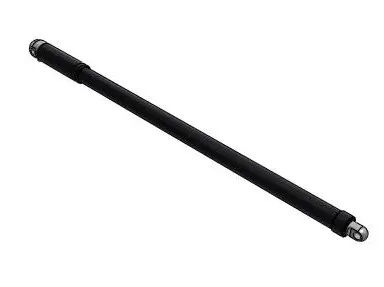

iCON50 Series

INTELLIGENT ELEKTRIC IN-LINE ACTUATOR

This actuator offers the perfect solution if the smaller iCON35 is insufficient in terms of pushing force or speed.

  • Speed: 4 to 70m/s
  • Voltage 12 or 24VDC
  • Load capacity: 500 to 4500N
  • Stroke length: 50 to 750mm

The specific icon benefits:

  • Internal stroke limitation
  • Plug & Play solution with conXion box
  • Internal overcurrent protection and heat protection
  • Free software for easy installation
  • Industrial interface MODBUS RTU on RS485
  • Interconnection up to 128 units
  • Easy installation and maintenance-free
  • Slim design and convincing appearance

Customisation options:

  • Other stroke lengths and built-in dimensions available on request
  • Brackets tailored to your application
  • 'Harsh Environment' (tested to IP68 and IP69)
  • Available in any RAL color and stainless steel


Klantspecifieke prijslijst
Sort By: Featured

iCON50 Series

Meer info

500350-243332F060000

iCON50 stroke 350mm
Ratio 24/1 Nom.speed: 12mm/s
Nom.Force: 3100N
Max Stat.load: 16,8kN
with integrated controller
iCon MDO (multiple)
with 3m black cable (molex connector)
Std.steel version IP66
with alu brackets with Ball Bearing.
Black motor tube and piston ring.
Lees meer
Contactez-nous pour le meilleur prix 0.0 EUR
Meer info

500100-843350A030000

1. icon50
2. Stroke Length: 100 mm
3. Low Noise: Standard
4. Gear Ratio: 84/1
5. Voltage & Certifications: 24VDC
6. Pitch & Nut: 3mm
7. Cable Length: 5m
8. Cable Type & Connector: Black cable, no connector
9. icon - Integrated controller - Single/Direction/Basic IO (SDB)
10. Steel & IP Class: Std. steel, IP66
11. Brackets: Aluminum w/clevis
12. Tube Color: Black, RAL9005, shine 25
13. Piston Ring Color: Black, standard
Lees meer
Contactez-nous pour le meilleur prix 0.0 EUR
Meer info

500300-043392C050000

1. Product Series: icon50
2. Stroke Length: 300 mm
3. Low Noise: Standard
4. Gear Ratio: 04/1
5. Voltage & Certifications: 24VDC
6. Pitch & Nut: 3mm
7. Cable Length: 9m
8. Cable Type & Connector: Black cable, Molex Minifit Connector
9. Hall Sensors/Integrated Controller (icon): icon - Integrated controller - Single/Direction/Position (SDP)
10. Steel & IP Class: Std. steel, IP66
11. Brackets: AISI316 w/clevis
12. Tube Color: Black, RAL9005, shine 25
13. Piston Ring Color: Black, standard
Lees meer
Contactez-nous pour le meilleur prix 0.0 EUR
Meer info

500150-143392C030000

1. Product Series: icon50
2. Stroke Length: 150mm
3. Low Noise: Standard
4. Gear Ratio: 14/1
5. Voltage & Certifications: 24VDC
6. Pitch & Nut: 3mm
7. Cable Length: 9m
8. Cable Type & Connector: Black cable, with molex connector
9. Integrated Controller (icon): Single/Direction/Position (SDP)
10. Steel & IP Class: Std. steel, IP66
11. Brackets: Alu w/clevis
12. Tube Color: Black, RAL9005, shine 25
13. Piston Ring Color: Black, standard
Lees meer
Contactez-nous pour le meilleur prix 0.0 EUR
Meer info

500350-243332E030000

1. icon50
2. Stroke Length: 350mm
3. Low Noise: Standard
4. Gear Ratio: 24/1 3100N 12mm/s
5. Voltage & Certifications: 24VDC
6. Pitch & Nut: 3mm
7. Cable Length: 3m
8. Cable Type & Connector: Black cable, Molex Minifit Connector
9. Hall Sensors/Integrated Controller (icon): icon - Integrated controller - Single/Bus/Status (SBS)
10. Steel & IP Class: Std. steel, IP66
11. Brackets: Aluminum w/clevis
12. Tube Color: Black, RAL9005, shine 25
13. Piston Ring Color: Black, standard
Lees meer
Contactez-nous pour le meilleur prix 0.0 EUR
Meer info

500200-843332D020000

iCon 50 in-line actuator
cable with molex minifit connector
iCON SPP version(Single - position input - position ok output)
alu brackets
Black tube and piston ring
Lees meer
Contactez-nous pour le meilleur prix 0.0 EUR
Meer info

500350-243312F060000

500350-243312F060000
iCON50 stroke 350mm
Ratio 24/1 Nom.speed: 12mm/s
Nom.Force: 3100N
Max Stat.load: 16,8kN
with integrated controller
iCon MDO (multiple)
with 1m black cable (molex connector)
Std.steel version IP66
with alu brackets with Ball Bearing.
Black motor tube and piston ring.
Lees meer
Contactez-nous pour le meilleur prix 0.0 EUR
Meer info

500500-493332+020000

CON50 stroke 500mm
Ratio 49/1 - 4500N - 6mm/s
24V DC - With Hall Sensors
3m cable with Molex Connector
std steel IP66
alu brackets
Black tube and piston ring
RAL9005, shine 25
Lees meer
Contactez-nous pour le meilleur prix 0.0 EUR
Meer info

500100-043350A030000

1. icon50
2. Stroke Length: 100 mm
3. Low Noise: Standard
4. Gear Ratio: 04/1
5. Voltage & Certifications: 24VDC
6. Pitch & Nut: 3mm
7. Cable Length: 5m
8. Cable Type & Connector: Black cable, no connector
9. icon - Integrated controller - Single/Direction/Basic IO (SDB)
10. Steel & IP Class: Std. steel, IP66
11. Brackets: Aluminum w/clevis
12. Tube Color: Black, RAL9005, shine 25
13. Piston Ring Color: Black, standard
Lees meer
Contactez-nous pour le meilleur prix 0.0 EUR
Meer info

500100-243350A030000

1. icon50
2. Stroke Length: 100 mm
3. Low Noise: Standard
4. Gear Ratio: 24/1
5. Voltage & Certifications: 24VDC
6. Pitch & Nut: 3mm
7. Cable Length: 5m
8. Cable Type & Connector: Black cable, no connector
9. icon - Integrated controller - Single/Direction/Basic IO (SDB)
10. Steel & IP Class: Std. steel, IP66
11. Brackets: Aluminum w/clevis
12. Tube Color: Black, RAL9005, shine 25
13. Piston Ring Color: Black, standard
Lees meer
Contactez-nous pour le meilleur prix 0.0 EUR
Meer info

500350-173332A449900

1. Product Series: icon50
2. Stroke Length: 350 mm
3. Low Noise: Standard
4. Gear Ratio: 17/1 2200N - 17mm/s
5. Voltage & Certifications: 24VDC
6. Pitch & Nut: 3mm
7. Cable Length: 3m
8. Cable Type & Connector: Black cable, Molex Minifit Connector
9. icon - Integrated controller - Single/Direction/Basic IO (SDB)
10. Steel & IP Class: AISI316, Harsh Environment (HE)
11. Brackets: AISI316
12. Tube Color: AISI
13. Piston Ring Color: AISI
Lees meer
Contactez-nous pour le meilleur prix 0.0 EUR
Meer info

500750-173352D249000

Linear actuator with DC motor
iCon50
Integrated controller - Single/Position/Position (SPP)
Black cable, Molex Minifit Connector
Lees meer
Contactez-nous pour le meilleur prix 0.0 EUR
Meer info

500150-143317F459900

iCon 50 linear actuator
Integrated controller MDO for multiple actuators
with molex minifit connector
iCon version SBS (Single setup - Bus-based - status control)
Stainless steel brackets with clevis
Stainless steel tube and piston ring
Harsh Environment IP68 protection
Lees meer
Contactez-nous pour le meilleur prix 0.0 EUR
Meer info

500100-143332A030000

Concens in-line actuator iCON50
with integrated controller SDB (basic In&out)
Alu brackets with clevis
with molex connector
Lees meer
1.00 € 1.0 EUR
Meer info

500200-243357C459900

iCON50 In-line actuator
Stainless steel version AISI316
Integrated controller SDP(direction input - position output)
with screened cable
Brackets: Stainless steel with clevis
Harsh environment version IP68
Lees meer
1.00 € 1.0 EUR
Meer info

500750-143316F449000

In-line actuator iCON50
With integrated controller MDO for synchronization
(Direction input via dry contacts)
Black Shielded cable without connector
Stainless steel version (cylinder, piston & brackets)
Lees meer
Contactez-nous pour le meilleur prix 0.0 EUR
