CON60 Series

Description

A COMPACT & POWERFUL ELECTRIC IN-LINE ACTUATOR CON60 is the perfect choice when you need high lifting capacity for heavy-duty applications, where size is limited by design or functionality.

  • Speed: 5 to 26m/s
  • Voltage 24VDC
  • Load capacity: 1900 to 10000N
  • Stroke length: 50 to 750mm

Customisation options::

  • Other stroke lengths and built-in dimensions available on request
  • Brackets tailored to your application
  • 'Harsh Environment' (tested to IP68 and IP69)
  • With or without Hall sensors for positioning/synchronization   icon version of this
  • Available in any RAL color and stainless steel
  • Version approved for medical use (24 VDC)


Some products from this category

ProductDescription
600200-433430+020000

Concens

CON60 - in-line actuator
cable without connector
With Hall sensor
Aluminium brackets

Cable Length (m): 3 Stroke (mm): 200 Supply Voltage (V): 24 VDC Linear Speed (mm/s): 12 Linear Force (N): 4300 Protection class: IP66
600200-003460+020000

Concens

Con60 in-line actuator
With Hall sensors
With alu brackets
Standard steel version

Cable Length (m): 6 Supply Voltage (V): 24 VDC Linear Speed (mm/s): 5 Linear Force (N): 10000 Protection class: IP66
600200-433450+020000

Concens

CON60 in-line actuator
with hall feedback
std cable without connector
Sd Steel with Alu brackets

Cable Length (m): 5 Stroke (mm): 200 Supply Voltage (V): 24 VDC Linear Speed (mm/s): 12 Linear Force (N): 4300 Protection class: IP66
600250-193432+020000

Concens

CON60 in-line actuator
with hall sensors

Cable Length (m): 3 Stroke (mm): 250 Supply Voltage (V): 24 VDC Linear Speed (mm/s): 26 Linear Force (N): 1900 Protection class: IP66
600470-193482-96xx01

Concens

CON60 stroke 470mm
Ratio: 19/1 max.load: 1900N
Speed at max load: 26m/s
24V DC - without Hall sensors
8m cable with molex Minifit connector
Std.Steel Harsh Environment version
Powder Coated motor and actuator with chromatization treatement for better anti-corrosion protection
Piston ring RAL9010
Alu Bracket with spherical bearings
600430-003452-249000

Concens

CON60 in-line actuator
Without hall feedback
Black cable with Molex Minifit connector
AISI316 IP66
AISI316 brackets

Gear: ratio 100 Cable Length (m): 5 Stroke (mm): 430 Supply Voltage (V): 24 VDC Linear Speed (mm/s): 5 Linear Force (N): 10000 Protection class: IP66
600430-003452-020000

Concens

CON60 in-line actuator
Without hall feedback
Black cable with Molex Minifit connector
Std Steel IP66
Alu brackets

Gear: ratio 100 Cable Length (m): 5 Stroke (mm): 430 Supply Voltage (V): 24 VDC Linear Speed (mm/s): 5 Linear Force (N): 10000 Protection class: IP66
600300+813446+020000

CON60 in-line actuator
with Hall Sensors
black shielded cable without connector.
Std Steel version IP66 with alu brackets

Cable Length (m): 4 Stroke (mm): 300 Supply Voltage (V): 24 VDC Linear Speed (mm/s): 6 Linear Force (N): 8100 Protection class: IP66

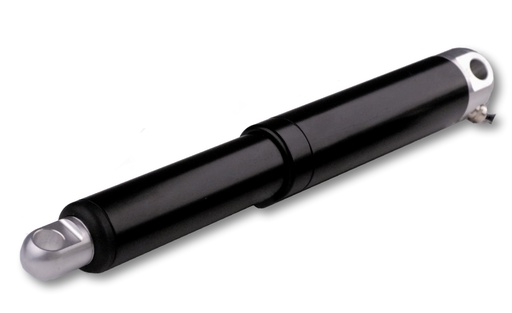

600150-663492-020000

In-line linear actuator with DC motor
CON60 without Hall sensor
Alu brackets without Clevis
with molex connector

Cable Length (m): 9 Stroke (mm): 150 Supply Voltage (V): 24 VDC Linear Speed (mm/s): 8 Linear Force (N): 6600 Protection class: IP66

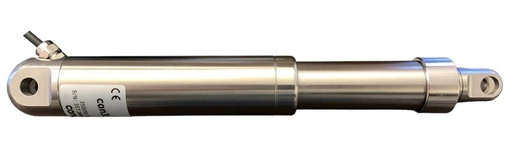

600200-813436+459900

CON60 - in-line actuator
screened cable without connector
With Hall sensors
Stainless steel version
With stainless steel Brackets with clevis

Cable Length (m): 3 Stroke (mm): 200 Supply Voltage (V): 24 VDC Linear Speed (mm/s): 6 Linear Force (N): 8100 Protection class: IP68
600200-813450-459900

CON60 - in-line actuator
std cable without connector
Without Hall sensors
Stainless steel version
With stainless steel Brackets with clevis

Cable Length (m): 5 Stroke (mm): 200 Supply Voltage (V): 24 VDC Linear Speed (mm/s): 6 Linear Force (N): 8100 Protection class: IP68
