CON50 Series

COMPACT & POWERFUL ELECTRIC IN-LINE ACTUATOR

This actuator offers the perfect solution if the smaller CON35 falls short in terms of pushing force or speed.

  • Speed: 4 to 70m/s
  • Voltage 12 or 24VDC
  • Load capacity: 500 to 4500N
  • Stroke length: 50 to 750mm

Customisation options:

  • Other stroke lengths and built-in dimensions available on request
  • Brackets tailored to your application
  • 'Harsh Environment' (tested to IP68 and IP69)
  • With or without Hall sensors for positioning/synchronization   icon version of this
  • Available in any RAL color and stainless steel
  • Version approved for medical use (24 VDC)


Klantspecifieke prijslijst
Sort By: Featured

CON50 Series

Meer info

500500-143x32-020000

CON50 stroke:500mm
ratio: 14/1 Force 1750N
Speed: 20mm/s
Spline version = push only actuator
24VDC - without Hall sensors
3m of cable with connector
std.steel version with Alu brackets
Black tube and piston ring - RAL 9005
Lees meer
Contactez-nous pour le meilleur prix 0.0 EUR
Meer info

500250-243322-020000

Product Series: con50
Stroke Length: 250mm
Gear Ratio: 24
24VDC
Pitch & Nut: 3mm
Cable Length: 2m
Cable Type & Connector: Black cable, Molex Minifit Connector
Std. steel, IP66
Brackets: Aluminum
Tube Color: Black, RAL9005, shine 25
Piston Ring Color: Black
Lees meer
Contactez-nous pour le meilleur prix 0.0 EUR
Meer info

500250+493332-020000

CON50 stroke 250mm
Ratio: 1:49 4500N - 6mm/s
Low noise version
3m of cable with Molex connector
24V DC - no Hall sensor
Housing: IP66 powerdercoated steel
Brackets: Aluminum
Tube: Black, RAL9005, shine 25
Piston ring: Black
Lees meer
Contactez-nous pour le meilleur prix 0.0 EUR
Meer info

500200-243x32-020000

CON50 stroke 200mm
Ratio: 1:24 3100N - 12mm/s
Spline version (only push actuator for emergency opening)
3m of cable with Molex connector
24V DC - no Hall sensor
Housing: IP66 powerdercoated steel
Brackets: Aluminum
Tube: Black, RAL9005, shine 25
Piston ring: Black
Lees meer
Contactez-nous pour le meilleur prix 0.0 EUR
Meer info

500100-243356+020000

CON50 in-line actuator
with Hall Sensors
black shielded cable without connector.
Std Steel version IP66 with alu brackets
Lees meer
Contactez-nous pour le meilleur prix 0.0 EUR
Meer info

500300-243310-020000

CON50 stroke 300mm
Ratio: 1:24 3100N - 12mm/s
1m of cable without connector
24V DC - without Hall sensor
Housing: IP66 powerdercoated steel
Brackets: Aluminum
Tube: Black, RAL9005, shine 25
Piston ring: Black
Lees meer
Contactez-nous pour le meilleur prix 0.0 EUR
Meer info

500300-243330-030000

1. Product Series: con50
2. Stroke Length: 300 mm
3. Low Noise: Standard
4. Gear Ratio: 27/1
Nom. Force: 3000N - Nom.speed: 12mm/s
5. Voltage & Certifications: 24VDC
6. Pitch & Nut: 3mm
7. Cable Length: 3m
8. Cable Type & Connector: Black cable, no connector
9. Without hall sensors
10. Steel & IP Class: Std. steel, IP66
11. Brackets: Aluminum w/clevis
12. Tube Color: Black, RAL9005, shine 25
13. Piston Ring Color: Black, standard
Lees meer
Contactez-nous pour le meilleur prix 0.0 EUR
Meer info

500500-243330+020000

Con50 stroke 500mm
ratio: 24/1 3100N 12mm/s
24VDC with Hall sensors
3m cable without connector
Std Steel version IP66
With Alu Brackets
Black 9005
Lees meer
Contactez-nous pour le meilleur prix 0.0 EUR
Meer info

500400-143332-030000

1. Product Series: con50
2. Stroke Length: 400 mm
3. Low Noise: Standard
4. Gear Ratio: 14/1 1750N - 20mm/s
5. Voltage & Certifications: 24VDC
6. Pitch & Nut: 3mm
7. Cable Length: 3m
8. Cable Type & Connector: Black cable, Molex Minifit Connector
9. Without hall sensors
10. Steel & IP Class: Std. steel, IP66
11. Brackets: Aluminum w/clevis
12. Tube Color: Black, RAL9005, shine 25
13. Piston Ring Color: Black, standard
Lees meer
Contactez-nous pour le meilleur prix 0.0 EUR
Meer info

500500-243332-030000

CON50 stroke 500mm
ratio: 24/1 ; nom speed: 12mm/s
Nominal load: 2000N
Supply Voltage 24V DC
Cable: 3m black cabel with molex Minifit connector
Without Hall sensors
Std. Steel version IP66
With brackets in Alu with Clevis
Tubecolor: Black, RAL9005, Shine 25
Piston ring color: Black

Lees meer
Contactez-nous pour le meilleur prix 0.0 EUR
Meer info

500300+243332+020000

CON50 stroke 300mm
Ratio: 1:24 3100N - 12mm/s
Low-noise version
3m of cable with Molex connector
24V DC - with Hall sensor for synch.
Housing: IP66 powerdercoated steel
Brackets: Aluminum
Tube: Black, RAL9005, shine 25
Piston ring: Black
Lees meer
Contactez-nous pour le meilleur prix 0.0 EUR
Meer info

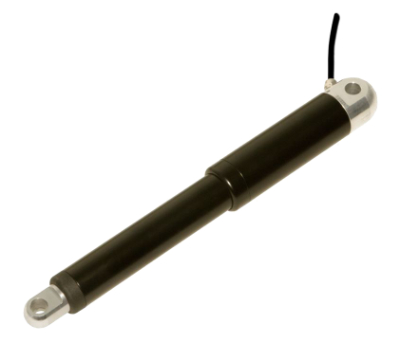

500400-243352+020000

Product Series: con50
Stroke Length: 400
Low Noise: Standard
Gear Ratio:24/1
Voltage & Certifications: 24VDC
Pitch & Nut: 3mm
Cable Length: 5m
Cable Type & Connector: Black cable, Molex Minifit Connector
Hall Sensors: With hall sensors
Steel & IP Class: Std. steel, IP66
Brackets: Aluminum
Tube Color: Black, RAL9005, shine 25
Piston Ring Color: Black
Lees meer
Contactez-nous pour le meilleur prix 0.0 EUR
Meer info

500500+173352+030000

CON50 stroke 500mm
Ratio 17/1 - 2200N - 17mm/s
24V DC - With Hall Sensors
5m cable with Molex Connector
low-noise version
std steel IP66
alu brackets with clevis
Black tube and piston ring
RAL9005, shine 25
Lees meer
Contactez-nous pour le meilleur prix 0.0 EUR
Meer info

500250-173362+940200

1. Product Series: con50
2. Stroke Length: 250 mm
3. Low Noise: Standard
4. Gear Ratio: 17/1
5. Voltage & Certifications: 24VDC
6. Pitch & Nut: 3mm
7. Cable Length: 6m
8. Cable Type & Connector: Black cable, with connector
9. Hall Sensors: With hall sensors
10. Steel & IP Class: Std. steel, Harsh Environment (HE)
11. Brackets: AISI316
12. Tube Color: Black, RAL9005, shine 25
13. Piston Ring Color: Black, Harsh Environment, std. steel
Lees meer
Contactez-nous pour le meilleur prix 0.0 EUR
Meer info

500300+493352+020000

1. Product Series: con50
2. Stroke Length: 300
3. Low Noise: Low noise
4. Gear Ratio: 49/1
5. Voltage & Certifications: 24VDC
6. Pitch & Nut: 3mm
7. Cable Length: 5m
8. Cable Type & Connector: Black cable, Molex Minifit Connector
9. With hall sensors
10. Steel & IP Class: Std. steel, IP66
11. Brackets: Aluminum
12. Tube Color: Black, RAL9005, shine 25
13. Piston Ring Color: Black, standard
Lees meer
Contactez-nous pour le meilleur prix 0.0 EUR
Meer info

500400-243352-020000

1. Con50
2. Stroke Length: 400mm
3. Low Noise: Standard
4. Gear Ratio: 24/1 - 3100N - 12mm/s
5. Voltage & Certifications: 24VDC
6. Pitch & Nut: 3mm
7. Cable Length: 5m
8. Cable Type & Connector: Black cable, Molex Minifit Connector
9. Without hall sensors
10. Steel & IP Class: Std. steel, IP66
11. Brackets: Aluminum
12. Tube Color: Black, RAL9005, shine 25
13. Piston Ring Color: Black, standard
Lees meer
Contactez-nous pour le meilleur prix 0.0 EUR
Meer info

500200+243x32-020001

CON50 stroke 200mm
Reduced noise version
Ratio: 1:24 3100N - 12mm/s
Spline version (only push actuator for emergency opening)
3m of cable with Molex connector
24V DC - no Hall sensor
Housing: IP66 powerdercoated steel
Brackets: Aluminum
Tube: Black, RAL9005, shine 25
Piston ring: Black
Lees meer
Contactez-nous pour le meilleur prix 0.0 EUR
Meer info

500400-143330+920200

1. Product Series: Con50
2. Stroke Length: 400
3. Standard noise level
4. Gear Ratio: 14/1 (Nominal load 1.750N - Nominal speed 20 mm/s)
5. Voltage & Certifications: 24VDC
6. Pitch & Nut: 3mm
7. Cable Length: 3m
8. Black cable, no connector
9. With hall sensors
10. Steel & IP Class: Std. steel, Harsh Environment (HE)
11. Brackets: Aluminium
12. Tube Color: Black, RAL9005, shine 25
13. Piston Ring Color: Black, Harsh Environment, std. steel
Lees meer
Contactez-nous pour le meilleur prix 0.0 EUR
Meer info

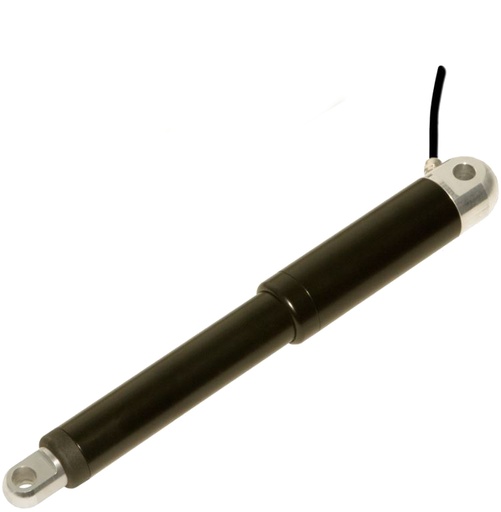

500300-843310-020000

CON50 in-line actuator
Standard steel version with alu brackets
Without hall sensors
Black cable without connector
Lees meer
Contactez-nous pour le meilleur prix 0.0 EUR
Meer info

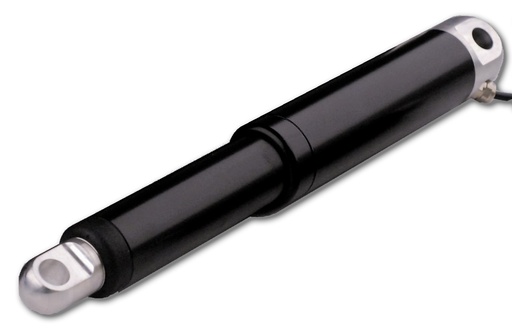

500150+143350-030000

Con50 in-line actuator
without hall sensors
reduced noise version
Standard steel with alu brackets with clevis
Lees meer
Contactez-nous pour le meilleur prix 0.0 EUR
