Iron core motor

Type of Motor: Iron Core
Configuration: MAGNET
Assembly Width: 55 mm
Magnet Series : MA series
Plate Length: 480 mm
Protection: S - Stainless Steel
Custom: Vacuum

Iron core motor

Configuration: MAGNET
Assembly Width: 55 mm
Magnet Series : MA series
Plate Length: 360 mm
Protection: S - Stainless Steel
Custom: Vacuum

Ironless linear motor

Type of Motor: Ironless
Configuration: MOTOR
Assembly Width: 34 mm
Coil Series: PB-X Series
Windings: 4
Winding Type: W1
Hall Sensors: N - without Hall sensor
Cooling: NC - No Cooling
Cable length: 400 mm
Custom: Vacuum
--- Technical Data ---
Continuous Force: 107.8 N
Peak Force: 431.4 N
Coil Mass: 0.55 kg

Ironless linear motor

Type of Motor: Ironless
Configuration: MAGNET
Assembly Width: 34 mm
Magnet Series : SB-X series
Plate Length: 300 mm
Protection: N - none (without)
Custom: Vacuum

Ironless linear motor

Type of Motor: Ironless
Configuration: MAGNET
Assembly Width: 34 mm
Magnet Series : SB-X series
Plate Length: 120 mm
Protection: N - none (without)
Custom: Vacuum

Ironless linear motor

Type of Motor: Ironless
Configuration: MOTOR
Assembly Width: 22 mm
Coil Series: PA-X Series
Windings: 3
Winding Type: W1
Hall Sensors: N - without Hall sensor
Cooling: NC - No Cooling
Cable length: 400 mm
Custom: Vacuum
--- Technical Data ---
Continuous Force: 43.9 N
Peak Force: 175.4 N
Coil Mass: 0.18 kg

Ironless linear motor

Type of Motor: Ironless
Configuration: MAGNET
Assembly Width: 22 mm
Magnet Series : SA-X series
Plate Length: 120 mm
Protection: N - none (without)
Custom: Vacuum

Inline DC actuator CON50
without Hall sensors
with Molex Minifit Jr. Connector
Std. steel, IP66

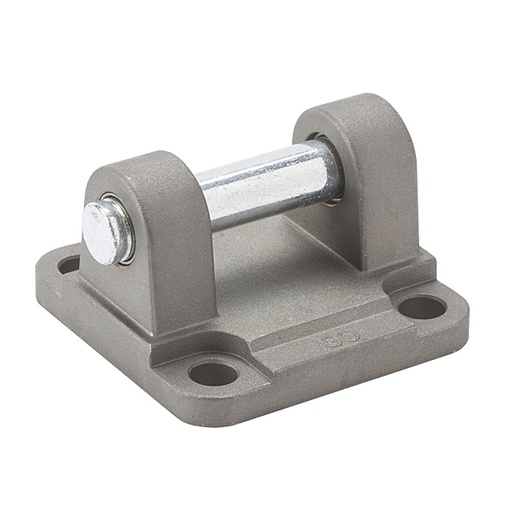

Alu brackets w/clevis

Inline DC actuator CON50
without Hall sensors
with Molex Minifit Jr. Connector
Std. steel, Harsh Environment (HE)
Alu brackets w/clevis

MecVel Linear Actuator

Hydraulic release system

Hydraulic lifting system
Easymotion L41AZ175K1--BQ-001/001
L = Linear unit
4 = Number of cylinders
1 = Type, fast (12 mm/rev)
A = Piston rod connection type
Z = Cylinder connection type
175 = Stroke in mm
K1 = Hand crank
B = Special
Q = Quick couplings
With 4x hydraulic hoses (length to be defined)

Bansbach Easylift Gasspring

Input and Output module for 24V motor rollers and geared drives based on the ConveyLinx-Ai2.
8 configurable I/O points
PNP NPN logic conversion
Profinet I/O / EtherNet IP / Modbus/TCP
Voltage: 24V DC
Protection Class: IP54

Splitter Cable, M8 Input Splitter

Inline DC actuator CON50
Black cable, Molex Minifit Connector
Without hall sensors
Std. steel, IP66
Alu Brackets
Spline and Emergency lowering

Integrated AC Servomotor
1000W - 3.18Nm
115 - 230VAC
3000rpm - isolated ground,
Built in Profinet

Integrated AC Servomotor
1000W - 3.18Nm
115 - 230VAC
3000rpm - isolated ground,
Built in Profinet

Flexible Extension Cable for Motor – Motor side

Flexible Extension Cable for Encoder
