AZ Series

Description

De AZ Series van Oriental motor zijn zogenaamde Servosteppers. Deze motoren hebben een hoge effictiëntie en lage vibratie.

Flensmaat van 20 mm tot 85 mm
Mechanische absolute encoder
AC of DC input types
Stappenmotoren met opgebouwde reductiekast voor betere inertie-matching
Optioneel met elektromagnetische rem
AZD-C driver nodig voor de aansturing van AC-motoren
AZD-K driver nodig voor de aansturing van DC-motoren

Het AC type is als volgt samen te stellen:

Het DC type is als volgt samen te stellen:

Some products from this category

Product	Description	PICTURE
CCM002Z1EVF Orientalmotor	Connection Cable AZ Series mini-Driver Cable Output in vertical direction Connector type (suitable for Mini driver or Multi-axis driver slim version) Cable Length (m): 0.2
CCM002Z1EFF Orientalmotor	AZ mini driver connection cables Cable Output in shaft direction Connector type (suitable for Mini driver or Multi-axis driver slim version) Cable Length (m): 0.2
CCM002Z1EBF Orientalmotor	Connection Cable AZ Series mini-Driver Cable Output in opposite direction of output shaft Connector type (suitable for Mini driver or Multi-axis driver slim version) Cable Length (m): 0.2
AZM69MCH Orientalmotor	Stepping Motor of the AZ‑Series (Connector Type) AC Input Frame Size: 60 mm Holding Torque (Nm): 2.0 Encoder: Absolute with EM-brake
AZM69AKH Orientalmotor	Stepping Motor of the AZ‑Series (Connector Type) Frame Size: 60 mm Holding Torque (Nm): 2.0 Encoder: Absolute Dimension (mm): 60 x 60 Encoder: Absolute
AZM66MCH Orientalmotor	Stepping Motor of the AZ‑Series (Connector Type) AC Input Frame Size: 60 mm Holding Torque (Nm): 1.2 Encoder: Absolute With EM-Brake
AZM66M1CH Orientalmotor	AZ Series Key Shaft Stepper Motor Dimension (mm): 60 x 60 Encoder: Absolute Electromagnetic Brake: Yes
AZM66ACH-PS25 Orientalmotor	Steppingmotor-Gearhead Combination of the AZ-Series; Gear: ratio 25 Electromagnetic Brake: No Encoder: Absolute
AZM66ACH Orientalmotor	Stepping Motor of the AZ‑Series (Connector Type) AC-input Frame Size: 60 mm Holding Torque (Nm): 1.2 Encoder: Absolute
AZM66A0KH Orientalmotor	Steppingmotor of the AZ-Series; Dimension (mm): 60 x 60 Encoder: Absolute Protection class: IP65
AZM66A0CH Orientalmotor	AZ Series Stepper Motor Connector type AC Input Dimension (mm): 60 x 60 Encoder: Absolute Electromagnetic Brake: No
AZM48AKH Orientalmotor	Stepping motor of the AZ-Series Frame size: 42 mm Holding torque: 0.72 Nm Encoder: Absolute Connection type: Connector Input type: DC Dimension (mm): 42 x 42 Encoder: Absolute Electromagnetic Brake: No
AZM48ACH Orientalmotor	Stepping motor of the AZ-Series Frame size: 42 mm Holding torque: 0.77 Nm Encoder: Absolute Connection type: Connector Input type: AC
AZM48A0KH Orientalmotor	Stepping motor of the AZ-Series Frame size: 42 mm Holding torque: 0.72 Nm Encoder: Absolute Connection type: Connector Input type: DC Electromagnetic Brake: No Encoder: Absolute Dimension (mm): 42 x 42
AZM48A0CH Orientalmotor	Stepping motor of the AZ-Series Frame size: 42 mm Holding torque: 0.77 Nm Encoder: Absolute Connection type: Connector Input type: AC Dimension (mm): 60 x 60 Holding Torque (Nm): 0.77 Encoder: Absolute
AZM46MKH Orientalmotor	Stepping motor of the AZ-Series Frame size: 42 mm Holding torque: 0.3 Nm Encoder: Absolute Electromagnetic brake: Yes Connection type: Connector Input type: DC
AZM46MCH Orientalmotor	Stepping motor of the AZ-Series Frame size: 42 mm Holding torque: 0.3 Nm Encoder: Absolute Electromagnetic brake: Yes Connection type: Connector Input type: AC
AZM46AKH-TS7.2 Orientalmotor	Stepping motor gearhead combination of the AZ-Series Frame size: 42 mm Gearhead type: TS Geared Type (spur gear) Gear ratio: 7.2:1 Max. holding torque: 1.2 Nm Encoder: Absolute Connection type: Connector Input type: DC Gear: ratio 7.2 Encoder: Absolute Electromagnetic Brake: No

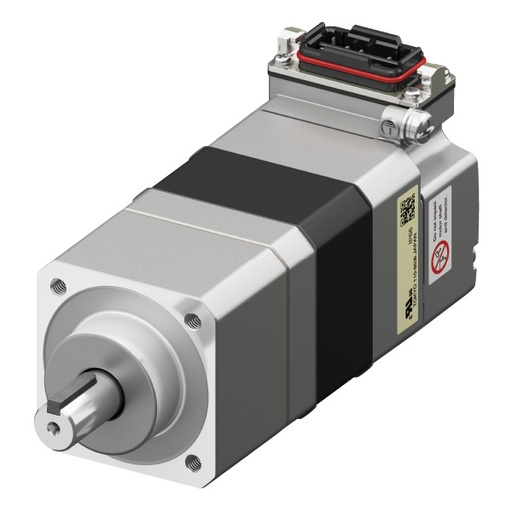

AZM46AKH-PS50 Orientalmotor	Stepping motor gearhead combination of the AZ-Series Frame size: 42 mm Gearhead type: PS Geared Type (planetary) Gear ratio: 50:1 Max. holding torque: 3 Nm Encoder: Absolute Connection type: Connector Input type: DC Gear: ratio 50 Dimension (mm): 42 x 42 Max. Speed (rpm): 60 Holding Torque (Nm): 3.0 Encoder: Absolute Protection class: IP66
AZM46AKH-HS100 Orientalmotor	Stepping motor gearhead combination of the AZ-Series Frame size: 42 mm Gearhead type: Harmonic Geared Type (harmonic drive) Gear ratio: 100:1 Max. holding torque: 5 Nm Encoder: Absolute Connection type: Connector Input type: DC
