AZ Series

Description

De AZ Series van Oriental motor zijn zogenaamde Servosteppers. Deze motoren hebben een hoge effictiëntie en lage vibratie.

Flensmaat van 20 mm tot 85 mm
Mechanische absolute encoder
AC of DC input types
Stappenmotoren met opgebouwde reductiekast voor betere inertie-matching
Optioneel met elektromagnetische rem
AZD-C driver nodig voor de aansturing van AC-motoren
AZD-K driver nodig voor de aansturing van DC-motoren

Het AC type is als volgt samen te stellen:

Het DC type is als volgt samen te stellen:

Some products from this category

Product	Description	PICTURE
CCM030Z1CFF Orientalmotor	Connection Cable Set Connector type for use with AZ Series without EM-brake DC input - type Cable outlet in shaft direction Cable Length (m): 3
CCM030Z1CBF Orientalmotor	Connection Cable Set Connector type for use with AZ Series without EM-brake DC input - type Cable outlet opposite to shaft direction
CCM030Z1BVF Orientalmotor	Connection Cable Set Connector type for use with AZ Series with EM-brake AC input - type vertical cable outlet Cable Length (m): 3
CCM030Z1BFR Orientalmotor	Flexible Connection Cable Set Connector type for use with AZ Series with EM-brake AC input - type cable outlet in output shaft direction
CCM030Z1BBR Orientalmotor	Flexible Connection Cable Set Connector type for use with AZ Series with EM-brake AC input - type cable outlet opposite to output shaft direction Cable Length (m): 3

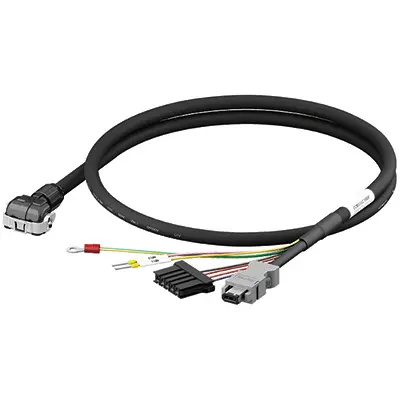

CCM030Z1BBF Orientalmotor	Connection Cable Set Connector type for use with AZ Series with EM-brake AC input - type Cable outlet opposite to shaft direction Cable Length (m): 3
CCM030Z1AVR Orientalmotor	Flexible Connection Cable Set Connector type for use with AZ Series without EM-brake AC input - type cable outlet in vertical direction
CCM030Z1AVF Orientalmotor	Connection Cable Set Connector type for use with AZ Series without EM-brake AC input - type vertical cable outlet Cable Length (m): 3
CCM030Z1AFR Orientalmotor	Flexible Connection Cable Set Connector type for use with AZ Series without EM-brake AC input - type cable outlet in output shaft direction Cable Length (m): 3

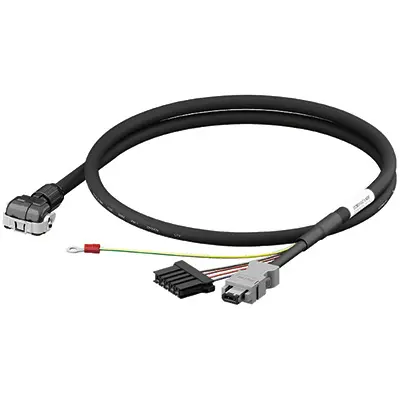

CCM030Z1AFF Orientalmotor	Connection Cable Set Connector type for use with AZ Series without EM-brake AC input - type cable outlet in output shaft direction Cable Length (m): 3
CCM030Z1ABR Orientalmotor	Flexible Connection Cable Set Connector type for use with AZ Series without EM-brake AC input - type cable outlet in opposite direction of motor shaft Cable Length (m): 3
CCM030Z1ABF Orientalmotor	Connection Cable Set Connector type for use with AZ Series without EM-brake AC input - type Cable outlet opposite to shaft direction Cable Length (m): 3
CCM020Z1EVF Orientalmotor	Connection Cable AZ Series mini-Driver Cable Output in vertical direction Connector type (suitable for Mini driver or Multi-axis driver slim version) Cable Length (m): 2
CCM020Z1EBF Orientalmotor	Connection Cable AZ Series mini-Driver Cable Output in opposite direction of output shaft Connector type (suitable for Mini driver or Multi-axis driver slim version) Cable Length (m): 2

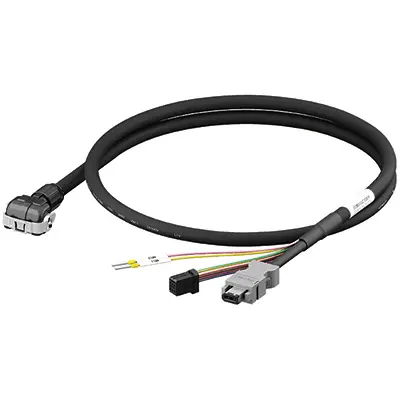

CCM020Z1DFF Orientalmotor	Connection Cable Set Connector type for use with AZ Series with EM-brake DC input - type Cable outlet in shaft direction Cable Length (m): 2
CCM020Z1DBF Orientalmotor	Connection Cable Set Connector type for use with AZ Series with EM-brake DC input - type Cable outlet opposite to shaft direction Cable Length (m): 2
CCM020Z1CVF Orientalmotor	Connection Cable Set Connector type for use with AZ Series without EM-brake DC input - type Vertical Cable outlet Cable Length (m): 2
CCM020Z1CFF Orientalmotor	Connection Cable Set Connector type for use with AZ Series without EM-brake DC input - type Cable outlet in shaft direction Cable Length (m): 2
CCM020Z1CBF Orientalmotor	Connection Cable Set Connector type for use with AZ Series without EM-brake DC input - type Cable outlet opposite to shaft direction
CCM020Z1BVF Orientalmotor	Connection Cable Set Connector type for use with AZ Series with EM-brake AC input - type vertical cable outlet Cable Length (m): 2
