AZ Series

Description

De AZ Series van Oriental motor zijn zogenaamde Servosteppers. Deze motoren hebben een hoge effictiëntie en lage vibratie.

  • Flensmaat van 20 mm tot 85 mm
  • Mechanische absolute encoder
  • AC of DC input types
  • Stappenmotoren met opgebouwde reductiekast voor betere inertie-matching
  • Optioneel met elektromagnetische rem
  • AZD-C driver nodig voor de aansturing van AC-motoren
  • AZD-K driver nodig voor de aansturing van DC-motoren
Het AC type is als volgt samen te stellen:​

Het DC type is als volgt samen te stellen:​


Some products from this category

ProductDescription
CCM070Z1BBR

Orientalmotor

Flexible Connection Cable Set
Connector type
for use with AZ Series with EM-brake
AC input - type
cable outlet opposite to output shaft direction

Cable Length (m): 7
CCM070Z1BBF

Orientalmotor

Connection Cable Set
Connector type
for use with AZ Series with EM-brake
AC input - type
Cable outlet opposite to shaft direction

Cable Length (m): 7
CCM070Z1AVR

Orientalmotor

Flexible Connection Cable Set
Connector type
for use with AZ Series without EM-brake
AC input - type
cable outlet in vertical direction
CCM070Z1AVF

Orientalmotor

Connection Cable Set
Connector type
for use with AZ Series without EM-brake
AC input - type
vertical cable outlet

Cable Length (m): 7
CCM070Z1AFR

Orientalmotor

Flexible Connection Cable Set
Connector type
for use with AZ Series without EM-brake
AC input - type
cable outlet in output shaft direction

Cable Length (m): 7

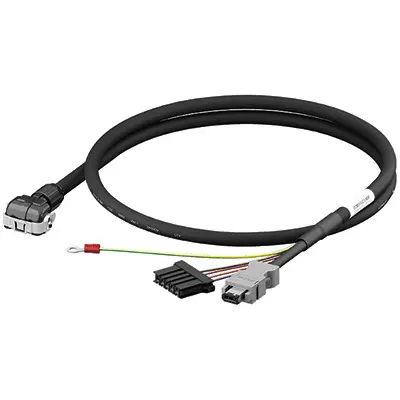

CCM070Z1AFF

Orientalmotor

Connection Cable Set
Connector type
for use with AZ Series without EM-brake
AC input - type
cable outlet in output shaft direction

Cable Length (m): 7
CCM070Z1ABR

Orientalmotor

Flexible Connection Cable Set
Connector type
for use with AZ Series without EM-brake
AC input - type
cable outlet in opposite direction of motor shaft

Cable Length (m): 7

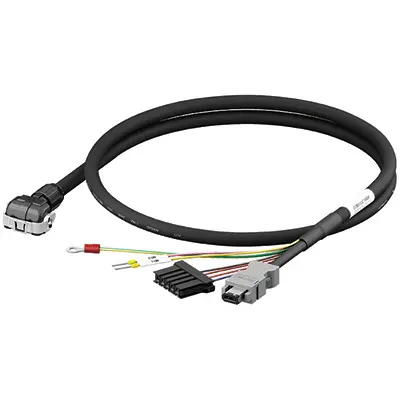

CCM070Z1ABF

Orientalmotor

Connection Cable Set
Connector type
for use with AZ Series without EM-brake
AC input - type
Cable outlet opposite to shaft direction

Cable Length (m): 7
CCM050Z2ACR

Orientalmotor

Cable set for AZ-series
Connects AZM46, AZM48, AZM66, AZM69 motors to AZ-mini driver or AZ Multi-axis Slim type driver
Flexible cable version
Cable length: 5 m
CCM050Z2ACF

Orientalmotor

Cable set for AZ-series
Connects AZM46, AZM48, AZM66, AZM69 motors to AZ-mini driver or AZ Multi-axis Slim type driver
Standard cable version
Cable length: 5 m
CCM050Z2ABF

Orientalmotor

Cable set for AZ-series
Connects AZM46, AZM48, AZM66, AZM69 motors to AZ-mini driver or AZ Multi-axis Slim type driver
Standard cable version
Cable length: 5 m
CCM050Z2AAR

Orientalmotor

Cable set for AZ-mini
Connects AZM14, AZM15, AZM24, AZM26 motors to AZ mini Driver (AZD-KR2D & AZD-KRED)
Flexible cable version
Cable length: 5 m
CCM050Z2AAF

Orientalmotor

Cable set for AZ-mini
Connects AZM14, AZM15, AZM24, AZM26 motors to AZ mini Driver (AZD-KR2D & AZD-KRED)
standard version

Cable Length (m): 5
CCM050Z1EVF

Orientalmotor

Connection Cable AZ Series mini-Driver
Cable Output in vertical direction
Connector type
(suitable for Mini driver or Multi-axis driver slim version)

Cable Length (m): 5
CCM050Z1EFF

Orientalmotor

AZ mini driver connection cables
Cable Output in shaft direction
Connector type
(suitable for Mini driver or Multi-axis driver slim version)

Cable Length (m): 5
CCM050Z1EBF

Orientalmotor

Connection Cable AZ Series mini-Driver
Cable Output in opposite direction of output shaft
Connector type
(suitable for Mini driver or Multi-axis driver slim version)

Cable Length (m): 5

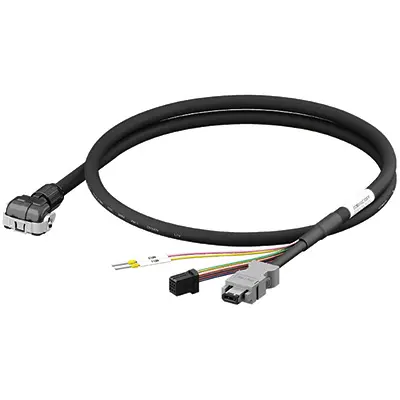

CCM050Z1DFF

Orientalmotor

Connection Cable Set
Connector type
for use with AZ Series with EM-brake
DC input - type
Cable outlet in shaft direction

Cable Length (m): 5
CCM050Z1DBF

Orientalmotor

Connection Cable Set
Connector type
for use with AZ Series with EM-brake
DC input - type
Cable outlet opposite to shaft direction

Cable Length (m): 5
CCM050Z1CVF

Orientalmotor

Connection Cable Set
Connector type
for use with AZ Series without EM-brake
DC input - type
Vertical Cable outlet

Cable Length (m): 5
CCM050Z1CFF

Orientalmotor

Connection Cable Set
Connector type
for use with AZ Series without EM-brake
DC input - type
Cable outlet in shaft direction

Cable Length (m): 5
