CON35 In-Line Actuatoren – Compacte Lineaire Actuator

CON35 Series

Description

A COMPACT & POWERFUL ELECTRIC IN-LINE ACTUATOR

Our most versatile actuator is also the best-selling actuator. Its size, efficiency, and elegant design make this electric in-line actuator the perfect match for almost any small lifting task.

Speed: 3 to 33m/s
Supply oltage : 12 of 24VDC
Linear Force: 120 to 2200N
Stroke: 50 to 750mm
Standaard IP66-bescherming

Customisation options:

Other stroke lengths and built-in dimensions available on request
Brackets tailored to your application
'Harsh Environment' (tested to IP68 and IP69)
With or without Hall sensors for positioning/synchronization icon version of this
Available in any RAL color and stainless steel
Version approved for medical use (24 VDC)

Some products from this category

Product	Description	PICTURE
350100-273230+920200 Concens	in-line linear actuator with DC motor CON35 Black cable, no connector With hall sensors Std. steel, Harsh Environment (HE) Alu brackets Stroke (mm): 100 Linear Force (N): 900 Linear Speed (mm/s): 7.5 Supply Voltage (V): 24 VDC Cable Length (m): 3 Gear: ratio 27
350150-143130-030000 Concens	in-line linear actuator with DC motor CON35 without hall sensor Black cable without Molex Minifit Jr Connector Alu brackets with Clevis Nut with magnets Stroke (mm): 150 Supply Voltage (V): 24 VDC Linear Force (N): 400 Linear Speed (mm/s): 16 Cable Length (m): 3 Gear: ratio 14
350050-513232+459900 Concens	1. Product Series: con35 2. Stroke Length: 50 mm 3. Low Noise: Standard 4. Gear Ratio: 51/1 5. Voltage & Certifications: 24VDC 6. Pitch & Nut: 2mm 7. Cable Length: 3m 8. Cable Type & Connector: Black cable, Molex Minifit Connector 9. Hall Sensors/Integrated Controller: With hall sensors 10. Steel & IP Class: AISI316, Harsh Environment (HE) 11. Brackets: AISI316 w/clevis 12. Tube Color: AISI 13. Piston Ring Color: AISI (Harsh Environment only)
350100-713110-030000 Concens	1. Product Series: con35 2. Stroke Length: 100 3. Low Noise: Standard 4. Gear Ratio: 71/84/100 5. Voltage & Certifications: 24VDC 6. Pitch & Nut: Nut with magnets 7. Cable Length: 1m 8. Cable Type & Connector: Black cable, no connector 9. Without hall sensors 10. Steel & IP Class: Std. steel, IP66 11. Brackets: Aluminum w/clevis 12. Tube Color: Black, RAL9005, shine 25 13. Piston Ring Color: Black, standard
350100-143250-030000 Concens	in-line linear actuator with DC motor Cable Length (m): 5 Stroke (mm): 100 Supply Voltage (V): 24 VDC Linear Speed (mm/s): 16 Linear Force (N): 400
350100-713236+449900	Concens Con35 linear actuator Pitch & Nut: 2mm Cable Length: 3m Cable Type & Connector: Screened Black cable, no connector With hall sensors Steel & IP Class: AISI316, Harsh Environment (HE) Brackets: AISI316 Tube and piston Color: AISI Gear: ratio 71 Stroke (mm): 100 Supply Voltage (V): 24 VDC Linear Speed (mm/s): 3 Linear Force (N): 2200
350400+713296+030000	Inline actuator with DC motor with Hall sensor cable without connector Housing: black powerdercoated steel Brackets: Aluminum with clevis Piston ring: Black Gear: ratio 71 Cable Length (m): 9 Stroke (mm): 400 Supply Voltage (V): 24 VDC Protection class: IP66
350300-053292-030000	CON35 in-line actuator Standard steel version with alu piston Black cable with Molex connector no hall sensors With alu brackets with clevis Cable Length (m): 9 Stroke (mm): 300 Supply Voltage (V): 24 VDC Linear Speed (mm/s): 33 Linear Force (N): 120 Protection class: IP66
350150-193292-020000	in-line linear actuator with DC motor Type : CON35 without Hall sensors with Molex minifit-connector front & rear bracket in Alu Cable Length (m): 9 Stroke (mm): 150 Supply Voltage (V): 24 VDC Linear Speed (mm/s): 12 Linear Force (N): 600 Protection class: IP66
350150-273242-940200 Concens	in-line linear actuator with DC motor CON35 Black cable, Molex Minifit connector without hall sensors Std steel, harsh environment Brackets: AISI316 Gear: ratio 27 Cable Length (m): 4 Stroke (mm): 150 Supply Voltage (V): 24 VDC

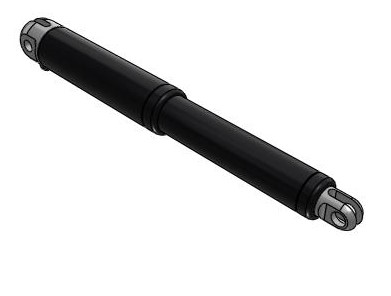

350200-273242-940200 Concens	in-line linear actuator with DC motor CON35 Black cable, Molex Minifit connector without hall sensors Std steel, harsh environment Brackets: AISI316 Gear: ratio 27 Cable Length (m): 4 Stroke (mm): 200 Supply Voltage (V): 24 VDC

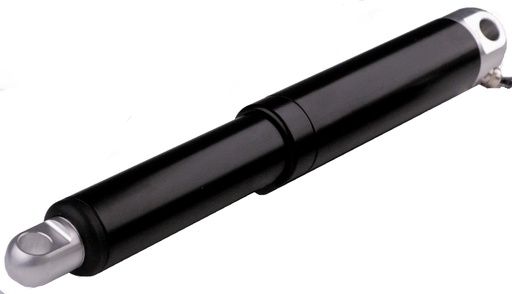

350100+193232-020000	Concens in-line actuator standard steel version reduced noise version with molex connector Cable Length (m): 3 Stroke (mm): 100 Supply Voltage (V): 24 VDC Linear Speed (mm/s): 12 Linear Force (N): 600 Protection class: IP66
350500-141252+030000	Inline DC Actuator CON35 Black cable with Molex Minifit Jr. Connector With hall sensors Std. steel, IP66 Alu brackets with clevis Gear: ratio 14 Cable Length (m): 5 Stroke (mm): 500 Supply Voltage (V): 12 VDC
350500-143252+030000	Inline DC Actuator CON35 Black cable with Molex Minifit Jr. Connector With hall sensors Std. steel, IP66 Alu brackets with clevis Gear: ratio 14 Cable Length (m): 5 Stroke (mm): 500 Supply Voltage (V): 24 VDC
350100-193222+020000 Concens	Inline DC actuator Con35 stroke 100mm with Hall sensors with Molex Minifit Jr. connector std.steel version IP66 with Alu brackets Black tube and piston ring Stroke (mm): 100 Gear: ratio 19 Linear Force (N): 600 Linear Speed (mm/s): 12 Cable Length (m): 2 Supply Voltage (V): 24 VDC
350100-191222+020000 Concens	Inline DC actuator Con35 stroke 100mm with Hall sensors with Molex Minifit Jr. connector std.steel version IP66 with Alu brackets Black tube and piston ring Stroke (mm): 100 Gear: ratio 19 Linear Force (N): 600 Linear Speed (mm/s): 9 Cable Length (m): 2 Supply Voltage (V): 12 VDC
350100-053232-020000	Inline DC Actuator CON35 Black cable, with Molex Minifit Connector Without hall sensors Alu brackets Stroke (mm): 100 Supply Voltage (V): 24 VDC Protection class: IP66 Cable Length (m): 3 Linear Speed (mm/s): 33 Linear Force (N): 120
350150-513296+020000	In-line DC Actuator CON35 With Hall sensors Screened cable Std Alu brackets Stroke (mm): 150 Supply Voltage (V): 24 VDC Cable Length (m): 9 Linear Speed (mm/s): 4 Linear Force (N): 1600 Protection class: IP66
350200-273220-020000 Concens	in-line linear actuator with DC motor CON35 Black cable, without without hall sensors Std steel Brackets: alu Gear: ratio 27 Cable Length (m): 2 Stroke (mm): 200 Supply Voltage (V): 24 VDC Protection class: IP66 Linear Force (N): 900 Linear Speed (mm/s): 7.5
350200-273220-449900 Concens	in-line linear actuator with DC motor CON35 Black cable, without connector without hall sensors Harsh Environment version AISI 316 Tube and piston Brackets: AISI316 Gear: ratio 27 Cable Length (m): 2 Stroke (mm): 200 Supply Voltage (V): 24 VDC Protection class: IP68 Linear Force (N): 900 Linear Speed (mm/s): 7.5
NOT FOUND WHAT YOU WERE LOOKING FOR? CONTACT US!
