SMD41B2
JVL

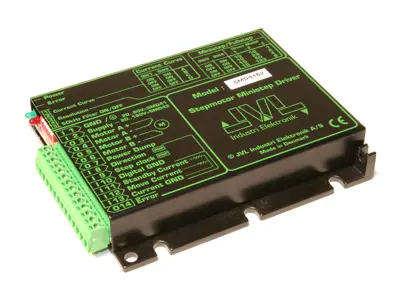

Product pictures
Quick delivery!
Product description
Step Motor Ministep Driver
+ 20-80VDC supply voltage
+ up to 6A/phase
+ Operating frequency 0 to 800 kHz
+ Resolution 2000, 5000, 10000 and 25000 ministeps per motor revolution
+ Galvanically isolated step-pulse and direction inputs
+ "Power dump" output for sinking surplus energy
+ Automatic switching between stand-by and operating currents
+ Facility for controlling operating and stand-by currents via externally applied voltage 0-2.5V or 0-20 mA
+ Dimensions: 100x22x114mm
+ Error output for temperature overload and short-circuit
+ Thermally protected
+ Filter option at step-pulse input
