Inline DC Actuotor CON50
Black cable with Molex Minifit Jr. connector
Without hall sensors
Std. steel, IP66
Alu brackets

MAEDLER stainless steel deep groove ball bearing single row inner Ø 25mm outer Ø 37mm width 7mm with blue NBR seals on both sides alternative marking 6804

Helical bevel gear
Size: X32S
Output shaft/bore: ø20
Mounting: FB (Standard)
Mounting position: V6

SV670 Servo Drive
In=7.6A, Imax=23A
STO, IP20

1. Con50
2. Stroke Length: 300 mm
3. Low Noise: Standard
4. Gear Ratio: 24/1 ; Force: 3100N ; nom.Speed: 12mm/s
5. Voltage & Certifications: 24VDC
6. Pitch & Nut: 3mm
7. Cable Length: 5m
8. Cable Type & Connector: Shielded Black cable, no connector
9. Hall Sensors/Integrated Controller (icon): Without hall sensors
10. Steel & IP Class: Std. steel, IP66
11. Brackets: Aluminum with spherical bearings
12. Tube Color: Black, RAL9005, shine 25
13. Piston Ring Color: Black, standard

Non standard LinkFlex follow drawing DB32N750 - non standard B1 12 mm + M6 + bore depth of 16 mm and non standard B2 12 mm + M6 + bore depth of 16 mm - Material 303 stainless steel - length 456 mm between couplings & overall length of 488 mm.

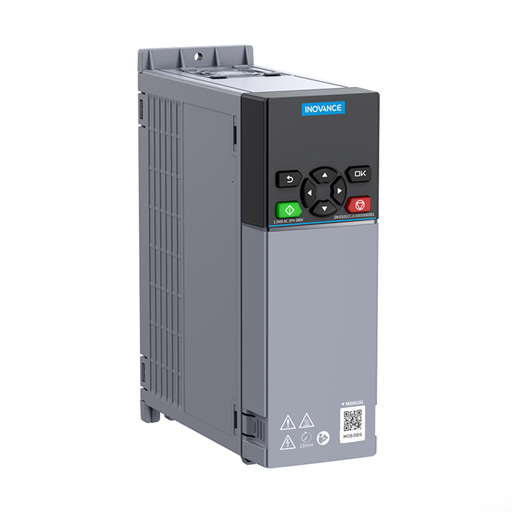

MD630 AC Drive

MD630 AC Drive

MD630 AC Drive

MD630 AC Drive

MD630 AC Drive

MD630 AC Drive

MD630 AC Drive

Integrated Servostepmotor

Stainless Steel Worm gearmotor
Size: N45
180W, i=46, output speed 30 rpm, 33 Nm
Hollow shaft diameter 18 mm, with output flange
Double seal for IP69K
Food-grade oil
