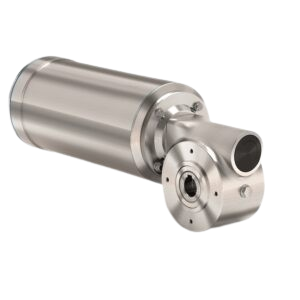

Stainless Steel Worm Gearmotor
Size: N50
370W, i=43, output speed 32.56rpm 72Nm
Mounting position: B7

- Food safe lubricant
- Twin viton seals IP69K
- Life lubricated output bearings

Full stainless steel round worm gearboxes
Size: N30
120W, i=40, output speed 35pm 20Nm
Hollow output shaft
Mounting position: B3

Stainless S. Slotted set screws
Food safe lubricant mobil oil
Twin viton seals-shield IP69K

Stainless Steel Worm Gearmotor
MN45UNIN060MDINN-PB3-B (Aisi 316L)
N45 UNI - 1/37
HOLLOW SHAFT 20 mm
63B14 - Pos B3
IP69k - Food oil
With SPM motor
0,18 kW 4p - 63B14
230/400V 50Hz IE4
UL and NSF
IP69k

Stainless Steel Worm Gearmotor
MN50UNIN070MFINN-PB3-B (Aisi 316L)
N50 UNI - 1/43
HOLLOW SHAFT 25 mm
63B14 - Pos B3
IP69k - Food oil
With SPM motor
0,18 kW 4p - 63B14
230/400V 50Hz IE4
UL and NSF
IP69k

Square worm gearbox M series
Size: M50

Stainless Steel Worm gearmotor
Size: N63
Motor power: 1.50kW
Mounting: UNI (Standard)
Position: B3
Output rpm (n2 [min-1]): 46.67
Output torque (M2M [Nm]): 227
Service factor (fs): 0.6
Output shaft: Hollow output shaft
Terminal Box Position: A

- Viton seals on input shaft
- Food safe lubricant mobil oil
- Twin viton seals-shield IP69K
- Life lubricated bearings on output

Stainless Steel Worm gearmotor
Size: N50
Motor power: 0.37kW
Mounting: UNI (Standard)
Position: B3
Output rpm (n2 [min-1]): 23.33
Output torque (M2M [Nm]): 88
Service factor (fs): 0.7
Output shaft: Hollow output shaft
Terminal Box Position: A

- Viton seals on input shaft
- Food safe lubricant mobil oil
- Twin viton seals-shield IP69K
- Life lubricated bearings on output

Stainless Steel Worm gearmotor
Size: N63
Motor power: 0.55kW
Mounting: UNI (Standard)
Position: B3
Output rpm (n2 [min-1]): 58.33
Output torque (M2M [Nm]): 68Nm
Service factor (fs): 2.1
Output shaft: Hollow output shaft
Terminal Box Position: A

- Food safe lubricant mobil oil
- Twin viton seals-shield IP69K
- Life lubricated bearings on output

Stainless Steel Worm gearmotor
Size: N50
Motor power: 0.25kW
Mounting: UNI (Standard)
Position: B3
Output rpm (n2 [min-1]): 38.89
Output torque (M2M [Nm]): 42Nm
Service factor (fs): 1.7
Output shaft: Hollow output shaft
Terminal Box Position: A

- Food safe lubricant mobil oil
- Twin viton seals-shield IP69K
- Life lubricated bearings on output
