Actuators

Act in Time's actuator program is one of the most comprehensive on the market. This makes us the ideal point of contact for machine and equipment builders who are looking for an electric actuator for their application.


A complete range of actuators

Our range includes both linear and rotary actuators. Rotary actuators, also known as rotary tables, differ from traditional motors in that they are equipped with bearings, which allow the load to be mounted directly on the actuator.

We classify electric actuators based on the drive type and mechanical construction:


  • Actuators with AC or DC motors – Ideal for settings and positioning applications
  • Servo and stepper motors – Suitable for dynamic and precise movements
  • Spindle systems in various qualities – From high power to high precision
  • Actuators with linear motors – Achieve high speeds with great precision
  • Slide actuators with integrated guide – Available with different technologies depending on the application

With this wide range, we can always select the right actuator based on the required speed, force, and precision.


Want to know more about the right actuator for your application? Contact us !


M43K4U-2.8-A04

Hybrid linear actuator, captive type
Ambient temp : -20°C
Lees meer
502.79 € 502.79 EUR

PNCE 50 BS 2005 50 IP65CR

Electric cylinder PNCE 50
Ball Screw; 20x05
Stroke 50mm
Piston rod: Male thread
IP65CR
Lees meer
1,097.86 € 1097.86 EUR

PNCE 50 BS 2010 55 IP65CR

Electric cylinder PNCE 50
Ball Screw; 20x10
Stroke 55mm
Piston rod: Male thread
IP65CR
Lees meer
1,138.18 € 1138.18 EUR

106397

VK PNCE50 EKL20 0 IP65CR 70 x 70
Motor adapter for:
Electric cylinder: PNCE50
Motor type: flange 70 x 70 mm
Coupling: EKL20
Mounting screws are included!
Lees meer
243.85 € 243.85 EUR

MTJ 65 1000 S 2 0

Linear unit MTJ 65
stroke 1000mm
1 short carriage
both sides with keyway
without protection cover
Lees meer
1,404.47 € 1404.47 EUR

OSL 14 MTJ65 LM 1900 F16C F16C

Synchronization shaft: OSL
for linear unit MTJ 65
Size 14
Distance LM: 1900mm
Drive shaft: F16C
Driven shaft: F16C
Lees meer
186.19 € 186.19 EUR

MTJ 65 1600 S 1L 0

Linear unit MTJ 65
stroke 1600mm
1 short carriage
1L: left with keyway
without protection cover
Lees meer
1,668.88 € 1668.88 EUR

CTV 110 1610 ISO7 1 600 L 1 1

Linear unit CTV110
Ball Screw: 16x10
Stroke 600mm
Tolerance class: ISO7
with Keyway
1 Long carriage
with connection plate
with PU protection cover
Lees meer
2,206.23 € 2206.23 EUR

350100-513257A020000

inline DC actuator iCON35
with Integrated controller SDB - Single / Direction / Basic IO (SDB)
Black Shielded cable with Molex Minifit Jr. Connector
IP66
Alu Brackets
Lees meer
446.17 € 446.17 EUR

500100-143357A020000

inline DC actuator iCON50
with Integrated controller SDB - Single / Direction / Basic IO (SDB)
Black Shielded cable with Molex Minifit Jr. Connector
IP66
Alu Brackets
Lees meer
603.71 € 603.71 EUR

350200-193232+020000

Concens CON35 actuator
Stroke: 200 mm
Gear ratio: 19:1 (Maximum load 600 N – Nominal speed 12 mm/s)
24 VDC
Cable length: 3 m standard cable – Molex connector
With Hall sensors
Standard steel – IP66
Black tube and black piston ring
Lees meer
316.11 € 316.11 EUR

PNCE 50 BS 2020 300 S

Electric cylinder PNCE 50
Ball Screw; 20x20
Stroke 300mm
Piston rod: Male thread
Lees meer
1,111.25 € 1111.25 EUR

PNCE 40 BS 1616 300 S

Electric cylinder PNCE 40
Ball Screw; 16x16
Stroke 300mm
Piston rod: Male thread
Lees meer
939.37 € 939.37 EUR

MTV 80 2050 ISO7 1 1400

Linear unit MTV80
Stroke: 1400mm
Ball Screw: 20x50
Tolerance class: ISO7
With Keyway
Carriages: 1
Screw supports: 0
Lees meer
3,224.66 € 3224.66 EUR

500750-241332-920200

Inline DC Actuator CON50
Stroke 750mm
Gear ratio: 24 (2400N - 6mm/s)
12VDC
Cable 3m with Molex Minifit Jr. Connector
Without hall sensors
Std steel, Harsh Environment
Alu brackets

Lees meer
658.69 € 658.69 EUR

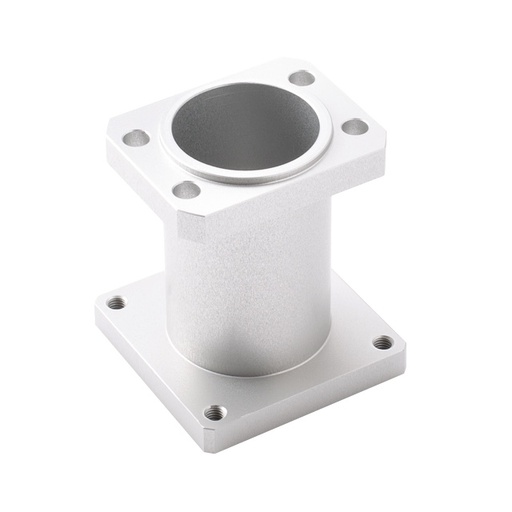

101538

VK CTV145 EMGA-80 GESM19/24 SAM1753
Gearbox adapter for CTV 145 / MTV 80 and gearbox EGMA-80 and coupling
GESM19/24 F14x F20
mounting screws included
Lees meer
243.87 € 243.87 EUR

500600-241332-920200

Inline DC Actuator CON50
Stroke 600mm
Gear ratio: 24 (2400N - 6mm/s)
12VDC
Cable 3m with Molex Minifit Jr. Connector
Without hall sensors
Std steel, Harsh Environment
Alu brackets

Lees meer
658.69 € 658.69 EUR

500750-241332-449900

Inline DC Actuator CON50
Stroke 750mm
Gear ratio: 24 (2400N - 6mm/s)
12VDC
Cable 3m with Molex Minifit Jr. Connector
Without hall sensors
AISI316, Harsh Environment
AISI316 brackets

Lees meer
1,530.75 € 1530.75 EUR

500600-241332-449900

Inline DC Actuator CON50
Stroke 600mm
Gear ratio: 24 (2400N - 6mm/s)
12VDC
Cable 3m with Molex Minifit Jr. Connector
Without hall sensors
AISI316, Harsh Environment
AISI316 brackets

Lees meer
1,530.75 € 1530.75 EUR

350150-713237F279000

Concens iCON35 actuator
Stroke: 150 mm
Gear ratio: 71:1 (Maximum load 2200 N – Nominal speed 3 mm/s)
24 VDC
Cable length: 3 m shielded cable – Molex connector
Integrated controller: MDO – Multi-actuator
Stainless steel (AISI316) – IP66
Stainless steel tube and black piston ring
With spherical bearings
Lees meer
1,092.26 € 1092.26 EUR
